Corrosion Resistant Hastelloy C276 Alloy C276 Round Bar with Custom Cutting and Seamless Pipes
Product Details
| Model NO. | C276 | Shape | Round |
|---|---|---|---|
| Technique | Hot Rolled | Diameter | 5 - 350mm |
| Surface | Bright, Black, Pickling, Polishing | Density | 8.89 G/cm³ |
| Melting Point | 1325-1370°C | Elastic Modulus | 205 GPa |
| Resistivity | 130 μohm·cm | Thermal Conductivity | 9.8 W/m·°C |
| Coefficient Of Thermal Expansion | 11.2 μm/m·°C | Tensile Strength | ≥ 690 MPa |
| Yield Strength | ≥ 283 MPa | Elongation | ≥ 40% |
| Hardness | ≤ 100 HRB | ||
| Highlight | Corrosion Resistant Hastelloy C276,Custom Cutting Alloy C276,Seamless Pipes Nickel Alloy C276 |
||
Product Description
Hastelloy C276 Alloy Products
Custom manufactured Alloy C276 round bars, plates, seamless pipes, and strips produced to meet specific application requirements.
Product Specifications
Products: Hastelloy C276 Bar, Plate, Pipe, Sheet, Coil
Diameter: 5 - 350mm
Length: Custom cutting available
Surface: Bright, black, pickling, polishing
Brand: DELTA
Services: Cutting, polishing
MOQ: 2 Kgs
Other Types: Bar, strip, coil, pipe, sheet, plate, wire

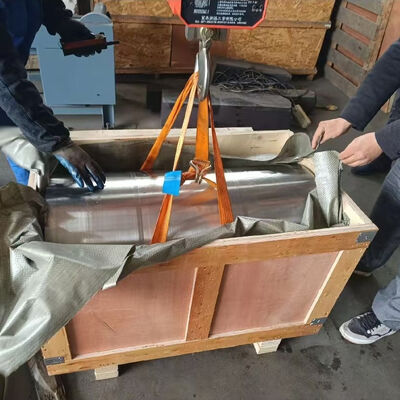

Packing: Wooden box
Loading Port: Shanghai Port
Price Terms: EXW, FOB, CIF, CFR
Delivery Time: Within 12 days
Material Overview
Hastelloy C-276 is a nickel-chromium-molybdenum alloy renowned for exceptional corrosion resistance in severe chemical environments. This versatile material maintains excellent performance in both oxidizing and reducing conditions, making it ideal for critical applications in chemical processing, pollution control, and demanding industrial sectors.
Chemical Composition
The outstanding corrosion resistance of Hastelloy C-276 stems from its carefully balanced chemical composition, featuring strategic additions of chromium, molybdenum, and tungsten for robust defense against corrosive media.
| Element | Content (%) | Element | Content (%) |
|---|---|---|---|
| Nickel (Ni) | Balance | Tungsten (W) | 3.0 - 4.5 |
| Chromium (Cr) | 14.5 - 16.5 | Carbon (C) | ≤ 0.01 |
| Molybdenum (Mo) | 15.0 - 17.0 | Manganese (Mn) | ≤ 1.00 |
| Iron (Fe) | 4.0 - 7.0 | Silicon (Si) | ≤ 0.08 |
| Cobalt (Co) | ≤ 2.5 | Phosphorus (P) | ≤ 0.04 |
| Vanadium (V) | ≤ 0.35 | Sulfur (S) | ≤ 0.03 |
Physical & Mechanical Properties
Hastelloy C-276 exhibits favorable physical and mechanical properties suitable for both corrosive and high-temperature applications.
Physical Properties
| Property | Metric Value | Imperial Value |
|---|---|---|
| Density | 8.89 g/cm³ | 0.321 lb/in³ |
| Melting Point | 1325-1370°C | 2417-2498°F |
| Elastic Modulus | 205 GPa | 29.8 ×10 psi |
| Resistivity | 130 μohm·cm | 51 μohm·in |
| Thermal Conductivity | 9.8 W/m·°C | 67.9 BTU·in/(hr·ft²·°F) |
| Coefficient of Thermal Expansion | 11.2 μm/m·°C | 6.2 μin/in·°F |
Mechanical Properties (Room Temperature, Annealed)
| Property | Metric Value | Imperial Value |
|---|---|---|
| Tensile Strength | ≥ 690 MPa | ≥ 100 ksi |
| Yield Strength (0.2% offset) | ≥ 283 MPa | ≥ 41 ksi |
| Elongation | ≥ 40% | ≥ 40% |
| Hardness | ≤ 100 HRB | ≤ 100 HRB |
Corrosion Resistance
Hastelloy C-276 provides comprehensive corrosion resistance across multiple challenging environments:
- Oxidizing and reducing media performance
- Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking
- Effective resistance to sulfuric, hydrochloric, phosphoric, and organic acids
- Capability to resist wet chlorine, hypochlorites, and chlorine dioxide solutions
- Significant corrosion resistance to high-concentration chloride salt solutions
Manufacturing & Heat Treatment
Precise thermomechanical processing ensures optimal microstructure and properties:
Manufacturing Process
Production typically involves vacuum induction melting (VIM) followed by vacuum arc remelting (VAR) for high purity. Seamless pipes undergo hot extrusion followed by cold rolling or drawing with intermediate solution annealing.
Heat Treatment
Solution annealing at 1120-1170°C (2048-2138°F) with rapid quenching dissolves secondary phases and restores optimum corrosion resistance. Stress relief annealing at 870-980°C (1600-1796°F) minimizes residual stresses.
Product Forms
Available in various configurations to suit application requirements:
- Round Bars: Various diameters for shafting, fasteners, and valve components
- Plates: Thicknesses ≥6.0mm for pressure vessels and structural applications
- Seamless Pipes: Manufactured to ASTM B622/ASME SB622 standards
- Strips and Sheets: Thin gauges for gaskets, liners, and specialized components
- Other Forms: Wires, fittings, flanges, and custom forgings
Industry Applications
Hastelloy C-276 serves critical roles across multiple demanding industries:
- Chemical Processing: Reactors, heat exchangers, and piping systems
- Pollution Control: FGD system components including absorber towers
- Pulp and Paper Industry: Digester and bleaching equipment
- Pharmaceutical Industry: Critical reaction vessels and piping
- Waste Treatment: Incineration systems and wastewater treatment
- Oil and Gas: Offshore platform equipment and sour gas handling
- Nuclear Fuel Processing: Equipment for reprocessing spent nuclear fuel
Welding & Fabrication
Hastelloy C-276 exhibits good weldability using common techniques. For optimal results:
- Use matching filler metals such as ERNiCrMo-4
- Maintain clean, contamination-free work environment
- Avoid sulfur-containing markers or tools
- Control interpass temperatures and heat input
- Post-weld heat treatment generally not required
Standards & Specifications
Manufactured to various international standards:
- Plates, Sheets, and Strips: ASTM B575/ASME SB575
- Seamless Pipes and Tubes: ASTM B622/ASME SB622
- Welded Pipes: ASTM B619/ASME SB619
- Fittings and Flanges: ASTM B366/ASME SB366
- Bars and Forgings: ASTM B564/ASME SB564
