Hot Rolled and Forged Hastelloy C-22 Round Bar with Superior Corrosion Resistance in Custom Lengths
Product Details
| Diameter | 10 - 350mm | Length | Custom Cutting Any Length |
|---|---|---|---|
| Surface Finish | Bright, Black, Pickling, Polishing | Technique | Hot Rolled, Forged |
| Shape | Round | Nickel Content | Balance |
| Chromium Content | 20 - 22.5% | Molybdenum Content | 12.5 - 14.5% |
| Tungsten Content | 2.5 - 3.5% | Iron Content | 2.0 - 6.0% |
| Carbon Content | 0.015% Max | Tensile Strength | 110 Ksi (758 MPa) Min |
| Yield Strength | 51 Ksi (352 MPa) Min | Elongation | 45% Min |
| Surface Treatment | Pickling | ||
| Highlight | Hot Rolled Hastelloy C-22 Round Bar,Forged Nickel Alloy Round Bar,Corrosion Resistant Super Alloy Bar |
||
Product Description
Hot Rolled and Forged Hastelloy C-22 Round Bar
Premium corrosion-resistant nickel-chromium-molybdenum-tungsten alloy bars available in black and bright polished finishes with custom length cutting.
Product Specifications
| Products Name | Hastelloy C22 round bar |
|---|---|
| Diameter | 10 - 350mm |
| Length | Custom cutting any length as requested |
| Surface | Bright, Black, pickling, polishing |
| Brand | DELTA |
| Service | Cutting, Polishing |
| MOQ | 2 Kgs |
| Other Types | Bar, strip, coil, pipe, sheet, plate, wire, etc. |
| Packing | Wooden box |
| Loading Port | Shanghai Port |
| Price Term | EXW, FOB, CIF, CFR |
| Deliver Time | Within 12 days |
Product Forms & Availability
- Hot Rolled Round Bars: Cost-effective solution with good mechanical properties for general corrosion applications
- Forged Round Bars: Superior mechanical strength and grain structure for high-integrity components
- Custom Lengths: Bars cut to exact specifications to minimize waste and reduce machining costs
Surface Finishes
- Black Bar: Descaled, as-rolled or as-forged condition for economical machining applications
- Bright Polished Bar: Cold drawn and polished for excellent dimensional accuracy and superior surface appearance
Key Features & Material Advantages
- Exceptional all-around corrosion resistance to pitting, crevice corrosion, and stress corrosion cracking
- Versatile performance in both oxidizing and reducing environments, including chloride-containing media
- Superior resistance to wet chlorine and mixed acids including sulfuric acid and acetic acid
- Excellent weldability with low susceptibility to weld zone degradation
- High thermal stability maintaining properties over wide temperature ranges

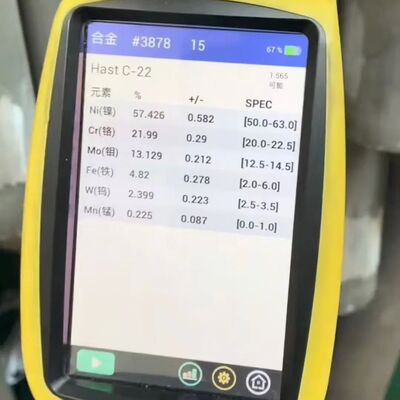

Typical Chemical Composition (Weight %)
| Element | Ni (Nickel) | Cr (Chromium) | Mo (Molybdenum) | W (Tungsten) | Fe (Iron) | Co (Cobalt) |
|---|---|---|---|---|---|---|
| Hastelloy C-22 | Bal. | 20 - 22.5 | 12.5 - 14.5 | 2.5 - 3.5 | 2.0 - 6.0 | 2.5 max |
| Element | C (Carbon) | Mn (Manganese) | Si (Silicon) | P (Phosphorus) | S (Sulfur) | V (Vanadium) |
| Hastelloy C-22 | 0.015 max | 0.50 max | 0.08 max | 0.02 max | 0.02 max | 0.35 max |
Mechanical Properties (Typical at Room Temperature)
| Condition | Tensile Strength | Yield Strength (0.2% Offset) | Elongation (%) |
|---|---|---|---|
| Annealed | 110 ksi (758 MPa) min | 51 ksi (352 MPa) min | 45% min |
Industries & Applications
- Chemical Processing: Reactors, vessels, heat exchangers, agitators, and piping systems
- Pollution Control: Flue Gas Desulfurization (FGD) systems, scrubbers, and ducting
- Pharmaceutical & Fine Chemical: Equipment requiring high purity and corrosion resistance
- Pulp & Paper Industry: Digesters and bleach plants
- Waste Treatment: Incinerators and waste handling systems
- Marine & Offshore: Components exposed to seawater and saline atmospheres
Contact us today to discuss your project requirements and receive a competitive quote for your custom-length Hastelloy C-22 round bars.
Our technical experts are ready to assist you in selecting the optimal form and finish for your application.
