EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
Product Details
| Model Number | DC01 | Edge Type | Slit Edge |
|---|---|---|---|
| Sheet Dimensions | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Carbon Content | Max 0.12% |
| Manganese Content | Max 0.6% | Phosphorus Content | Max 0.045% |
| Sulfur Content | Max 0.045% | Tensile Strength | 270-410 MPa |
| Yield Strength | 280 MPa | Elongation (80mm) | 28% |
| Elongation (5.65√So) | 32% | Vickers Hardness | 105 HV |
| Standard | EN 10130:2006, EN 10139:1997, EN 10152:2009, EN 10271:1999 | Classification | Non-alloy Quality Steel |
| Equivalent Grades | SAE1008, SAE1010, FeP01, St12, SPCC, C, F12, CR4, AP00, 08, 08F, 1142, 11321, St02F, 08kp, 08ps, Cr01, CR22, O | ||
| Highlight | EN 10152 Standard Cold Rolled Steel Sheet,1.0mm Thickness DC01 Steel Sheet,1500*3000mm Size Electrolytically Zinc Coated Steel |
||
Product Description
Product Specifications
| Grade | DC01 |
| Number | 1.0330 |
| Classification | Non-alloy quality steel |
| Dimensions | 1.0mm × 1500mm × 3000mm |
| Coating | Electrolytically Zinc Coated |
Technical Standards
| EN 10130:2006 | Cold rolled low carbon steel flat products for cold forming |
| EN 10139:1997 | Cold rolled uncoated mild steel narrow strip for cold forming |
| EN 10152:2009 | Electrolytically zinc coated cold rolled steel flat products for cold forming |
| EN 10271:1999 | Electrolytically zinc-nickel (ZN) coated steel flat products |
Chemical Composition
Unless otherwise agreed, this grade may be supplied as alloy steel (for example with boron or titanium)
| Element | Maximum % |
|---|---|
| Carbon (C) | 0.12 |
| Manganese (Mn) | 0.6 |
| Phosphorus (P) | 0.045 |
| Sulfur (S) | 0.045 |
Mechanical Properties
| Tensile Strength (Rm) | 270-410 MPa |
| Minimum Yield Strength (ReH) | 280 MPa |
| Elongation (Lo = 80mm) | 28% minimum |
| Elongation (Lo = 5.65√So) | 32% minimum |
| Vickers Hardness (HV) | 105 |
International Equivalent Grades
Warning! Equivalent grades are for reference only
| Region | Equivalent Standards |
|---|---|
| USA | SAE1008, SAE1010 |
| Germany | FeP01, St12 |
| Japan | SPCC |
| France | C, F12, FeP01 |
| England | CR4, FeP01 |
| China | 08, 08F |
| Russia | 08kp, 08ps |

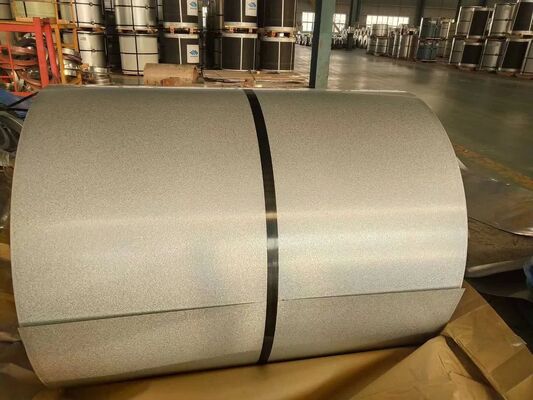

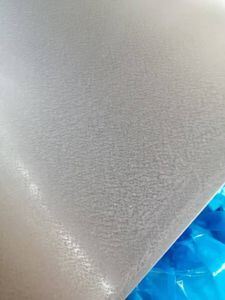

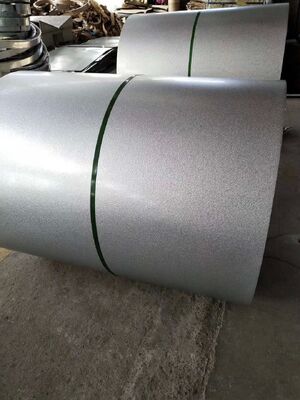

Product Images
