DX51D Z40-275 Regular Spangle Galvanized Steel Coil with Width 10-2000mm for Construction and Industrial Use

Minimum Order Quantity	1 Ton
Price	US $650-1,350 / Ton

Product Details

Model NO.	DX51D Z40-275	Edge Type	Slit Edge
Thickness Range	0.15-3.8mm	Width Range	10-2000mm
Spangle Type	Regular Spangle	Inner Diameter	508mm Or 610mm
Zinc Coating	60-275g/m2	Surface Treatment	Passivated, Oiled, Anti-finger
Steel Grade	DX51D, DX53D, Q195, SGC490	Technique	Hot Dipped, Hot Rolled, Cold Rolled
Zinc Coating Range	Z80 - Z600/m2	Surface Finish	Chromated, Dry Or Oiled, Cr3 Treated
Tension Levelling	Continuously Hot Dip Galvanized Strips	Skinnpassed	If Required
Standard	JIS G3302, ASTM A653, EN 10147
Highlight	DX51D Z40-275 Galvanized Steel Coil , Regular Spangle Hot Dipped Galvanized Steel Coil , Width 10-2000mm Zinc Coated Steel Coil

Leave a Message

Product Description

Dx51d Z40-275 Regular Spangle Galvanized Steel Coil

Hot dipped galvanized steel coils designed for superior corrosion resistance and durability in various industrial applications.

Product Specifications

Parameter	Specification
Thickness	0.15mm - 4.00mm
Width	11mm - 1500mm
Zinc Coating	Z80 - Z600/m²
Surface Treatment	Chromated, dry or oiled, Cr3 treated
Inner Diameter	508mm or 610mm
Spangle Type	Regular, Small, Big or Zero
Steel Grade	DX51D, SGCC, Cs-B, S280, S320, S350, S380, DQ, DDQ, Q195
Technique	Hot dipped, hot rolled, cold rolled

Standards & Processing

Standards: JIS G3302, ASTM A653, EN 10147, ANSI, BS, GB
Processing: Skin passing and tension levelling available upon request
Cutting & Slitting: Custom cutting and slitting services available
Packaging: Export wrapped with edge protectors, steel hoops, and seals

Applications

Construction: Roof and roof components, exterior walls, garage doors, window blinds
Household Appliances: Washing machines, refrigerators, televisions, air conditioners, ventilation systems
Transportation: Automotive components, ship bulkheads, highway fencing
Industrial: Control cabinets, refrigeration equipment, vending machines
Furniture: Lampshades, counters, signage, medical facilities

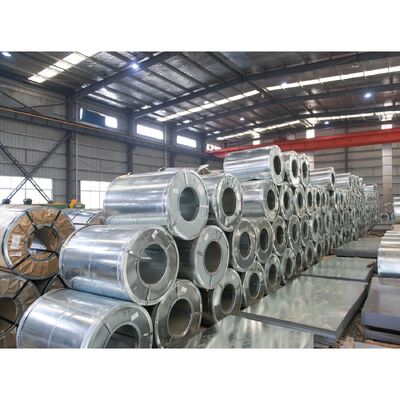

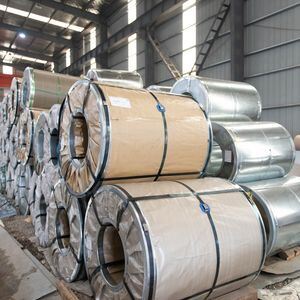

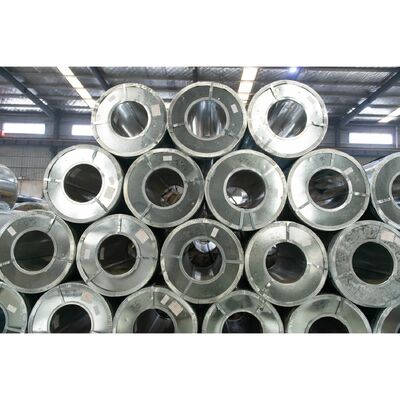

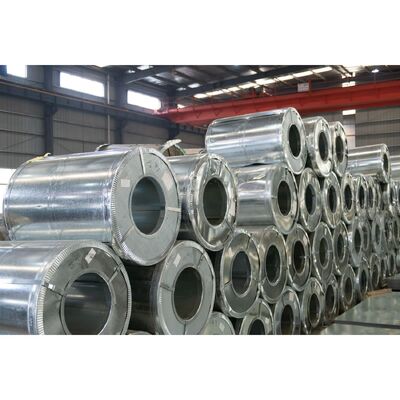

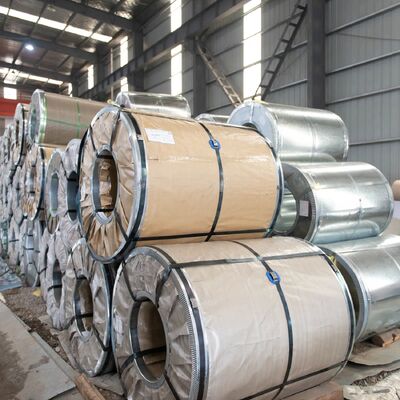

Product Gallery
