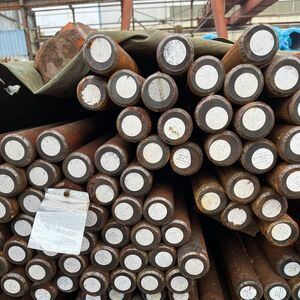

EN DIN Standard 41CrAlMo7 Alloy Steel Round Bar Hot Rolled with 10-350mm Diameter
Product Details
| Model NO. | 41CrAlMo7 | Technique | Hot Rolled |
|---|---|---|---|
| Shape | Bar | Surface Treatment | Hot Rolled |
| Length | 6m Or As Request | Diameter | 10 - 350mm |
| Standard Diameter | 10 12 15 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 120 130 140 150 160 180 200 210 220 230 250 270 300 | Cr Content | 1.5-1.8 |
| Al Content | 0.8-1.2 | Mn Content | 0.4-0.7 |
| C Content | 0.38-0.45 | Mo Content | 0.2-0.35 |
| Si Content | 0.4 | S Content | 0.035 |
| P Content | 0.025 | ||
| Highlight | Hot Rolled Alloy Steel Round Bar,EN DIN Standard Steel Round Bar,10-350mm Diameter 41CrAlMo7 Round Bar |
||
Product Description
EN DIN Standard 41CrAlMo7 Alloy Steel Round Bar
Product Specifications
| Product Name | 41CrAlMo7 Alloy Steel Round Bar |
|---|---|
| Diameter Range | 10 - 300mm |
| Length | 6m standard or custom cutting |
| Type | Hot Rolled |
| Brand | BAOSTEEL, DELTA, DONGBEI, HUAXI, SHAGANG, etc. |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | Steel wire rope packing |
| Delivery Time | 5-7 days for stock materials |
| Other Available Grades | Q195, Q235, 10#, 20#, 35#, 45#, Q215, Q345, 12Cr1Mov, 15CrMo, 304, 316, 20Cr, 40Cr, 20CrMo, 35CrMo, 42CrMo, 40CrNiMo, GCr15, 65Mn, 50Mn, 50Cr, 3Cr2W8V, 20CrMnTi, 5CrMnMo |
| Standards | ASTM, GB, EN, DIN |
| Application | Structure and Industrial |
Standard Stock Diameters
10, 12, 15, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 120, 130, 140, 150, 160, 180, 200, 210, 220, 230, 250, 270, 300mm
Material Description
EN 1.8509 (41CrAlMo7-10) Nitriding Steel is an alloy steel formulated for primary forming into wrought products. Cited properties are appropriate for the quenched and tempered condition. 1.8509 is the EN numeric designation, while 41CrAlMo7-10 is the EN chemical designation.
This material features a fairly low thermal conductivity among EN wrought alloy steels, along with a moderately low melting temperature and very high tensile strength.
Alloy Composition of 41CrAlMo7 / 1.8509 Steel
| Element | Content (%) |
|---|---|
| Chromium (Cr) | 1.5-1.8 |
| Aluminum (Al) | 0.8-1.2 |
| Manganese (Mn) | 0.4-0.7 |
| Carbon (C) | 0.38-0.45 |
| Molybdenum (Mo) | 0.2-0.35 |
| Silicon (Si) | 0.4 |
| Sulfur (S) | 0.035 max |
| Phosphorus (P) | 0.025 max |
| Iron (Fe) | Balance |
Mechanical Properties
Annealed Condition (+A):
- Hardness: <248 HB
Heat-Treated Condition (+QT):
- Dimensions 16-40mm: Tensile strength: 950-1150 MPa, Yield strength: >750 MPa, Elongation: >11%, Impact resistance: >25J
- Dimensions 40-100mm: Tensile strength: 900-1100 MPa, Yield strength: >720 MPa, Elongation: >13%, Impact resistance: >25J
- Dimensions 100-160mm: Tensile strength: 850-1050 MPa, Yield strength: >670 MPa, Elongation: >14%, Impact resistance: >30J
- Dimensions 160-250mm: Tensile strength: 800-1000 MPa, Yield strength: >625 MPa, Elongation: >15%, Impact resistance: >30J
Surface Hardness After Nitriding: HV1: 950
Applications
41CrAlMo7 Nitriding Steel is suited for applications requiring excellent resistance to wear and abrasion. Typical applications include:
- Connecting rods
- Small extruders
- Valve stems
- Dies
- Brick press plates
- Clutch plates
- Gudgeon, track and shackle pins
This material is widely used in the automotive, textile, and general engineering industries.
