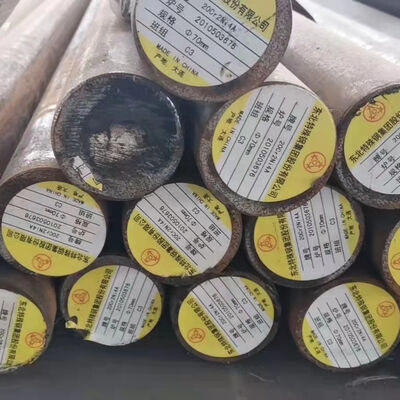

34CrNiMo6 Alloy Steel Round Bar with Polished Surface and OD 15-350mm for Mold Steel Applications

Minimum Order Quantity	1 Ton
Price	US $919-1,165 / Ton

Product Details

Diameter	13 - 300mm	Length	6m Or Custom
Tensile Strength	1000 -1200 N/mm²	Hardness	28-34HRC
Carbon Content	0.30-0.38	Manganese Content	0.5-0.8
Silicon Content	0.40 Max	Phosphorus Content	0.025 Max
Sulfur Content	0.035 Max	Chromium Content	1.3-1.7
Molybdenum Content	0.15-0.30	Nickel Content	1.3-1.7
Yield Strength	Min. 600 N/mm²	Elongation	Min. 13%
Hot Forming Temperature	1100-900°C
Highlight	Polished Surface Alloy Steel Round Bar , OD 15-350mm Steel Round Rod , Mold Steel Application 34CrNiMo6 Steel Bar

Leave a Message

Product Description

34CrNiMo6 Alloy Steel / 1.6582 Steel Round Bar

Product Specifications

Products	Alloy Steel Round Bar
Diameter	13 - 300mm
Length	6m or custom cutting as requested
Grade	Alloy Steel
Our Service	Cutting, polishing, packing, heat treatment
Brand	BAOSTEEL, XINGCHENG, DSS, CHONGQING, XNSS, HLXT, etc.
Standard	GB, ASTM, JIS, EN, DIN
Company Type	Storage company and process service

Material Overview

34CrNiMo6 / 1.6582 Steel is a heat-treatable, low alloy steel used for a wide range of engineering parts. It can be heat treated to produce a typical tensile strength of 1000-1200 N/mm², combined with good ductility and resistance to shock. The material offers excellent hardenability, enabling it to be used for medium tensile strengths in fairly large sections, and attain good wear resistance and impact properties at low temperatures.

Standards and Equivalents

Standard	Grade	Equivalent
BS EN 10083-3:2006	34CrNiMo6 / 1.6582	ASTM A29:2004 - 4337
BS EN 10250-3:2000	34CrNiMo6 / 1.6582	-

Chemical Composition

Standard	C	Mn	Si	P	S	Cr	Mo	Ni
BS EN 10083-3:2006	0.30-0.38	0.5-0.8	0.40 max	0.025 max	0.035 max	1.3-1.7	0.15-0.30	1.3-1.7
BS EN 10250-3:2000	0.30-0.38	0.5-0.8	0.40 max	0.035 max	0.035 max	1.3-1.7	0.15-0.30	1.3-1.7
ASTM A29:2004 - 4337	0.30-0.40	0.6-0.8	0.20-0.35	0.035 max	0.040 max	0.70-0.90	0.20-0.30	1.65-2.00

Mechanical Properties

Properties	< 16mm	16-40mm	40-100mm	100-160mm	160-250mm
Yield Strength Re [N/mm²]	min. 1000	min. 900	min. 800	min. 700	min. 600
Tensile Strength Rm [N/mm²]	1200-1400	1100-1300	1000-1200	900-1100	800-950
Elongation A [%]	min. 9	min. 10	min. 11	min. 12	min. 13
Reduction of Area Z [%]	min. 40	min. 45	min. 50	min. 55	min. 55
Toughness CVN [J]	min. 35	min. 45	min. 45	min. 45	min. 45

Heat Treatment Process

Quenched and Tempered (Q+T) Process

Heat 34CrNiMo6 round steel slowly to 850°C
Soak at hardening temperature and quench in oil
Temper as soon as steel reaches room temperature
Heat uniformly to suitable temperature
Withdraw from furnace and cool in air
Usual tempering temperature is 600°C (depending on requirements)

Additional Processing Information

Forging: Hot forming temperature: 1100-900°C
Machinability: Best performed in annealed or normalized and tempered condition. Can be machined by all conventional methods.
Welding: Can be fusion or resistance welded. Preheat and post-heat weld procedures should be followed.

Applications

EN DIN 34CrNiMo6 steel is used to manufacture tools requiring good plasticity and high strength. It is typically selected for large-size, critical components including:

Heavy machinery axles
Turbine shaft blades
High-load transmission parts
Fasteners and crank shafts
Gears and heavily loaded motor construction parts
