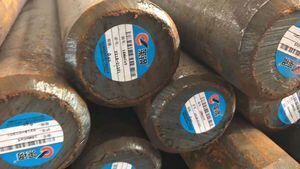

16MnCr5 DIN 1.7131 Polished Surface Steel Round Bar OD 6-630mm Alloy Tool Steel Bar
Product Details
| Model Number | 16MnCr5 | Surface Treatment | Polished |
|---|---|---|---|
| Alloy Type | Alloy | Diameter Range | OD 6-630mm |
| Production Capacity | 500tons | Carbon Content | 0.14-0.19% |
| Silicon Content | Max. 0.40% | Manganese Content | 1.00-1.30% |
| Phosphorus Content | Max. 0.035% | Sulfur Content | ≤ 0.035% |
| Chromium Content | 0.80-1.10% | Hardness HRC | 47 Max, 39 Min |
| Brinell Hardness | 207 Max | Quenching Temperature | 870°C |
| Case-hardening Temperature | 780-820°C | ||
| Highlight | 16MnCr5 Steel Round Bar,Polished Surface Alloy Steel Bar,OD 6-630mm Tool Steel Bar |
||
Product Description
DIN 16MnCr5 / EN 1.7131 34mm Steel Round Bar
16MnCr5 case hardening steel is manufactured in compliance with EN 10084:2008 standards for technical delivery conditions. This high-quality steel is ideal for demanding industrial applications requiring superior performance.
Material Specifications
Grade: 16MnCr5
Number: 1.7131
Classification: Case hardening steels
Number: 1.7131
Classification: Case hardening steels
Standards Compliance
• EN 10084:2008 - Case hardening steels, Technical delivery conditions
• EN 10132-2:2000 - Cold rolled narrow steel strip for heat treatment
• EN 10132-2:2000 - Cold rolled narrow steel strip for heat treatment
International Equivalent Grades
| Standard | Equivalent |
|---|---|
| JUS | Č.4320 |
| DIN | 16MnCr 5; ZF 6 |
| BS | 590M17 |
| GOST | 18HG |
| AISI/SAE | SAE 5115, SAE 51204 |
| UNI | 16MnCr5 |
| NF | 16MC5 |
Chemical Composition
| Element | Content (%) | Permissible Deviation |
|---|---|---|
| C | 0.14-0.19 | ± 0.02 |
| Si max. | 0.40 | + 0.03 |
| Mn | 1.00-1.30 | ± 0.05 |
| P max. | 0.035 | + 0.005 |
| S | ≤ 0.035 | + 0.005 |
| Cr | 0.80-1.10 | ± 0.05 |
Heat Treatment Parameters
| Process | Temperature (°C) |
|---|---|
| End Quench Test Quenching | 870 |
| Carburizing Temperature | 880 to 980 |
| Core-hardening Temperature | 860 to 900 |
| Case-hardening Temperature | 780 to 820 |
| Tempering | 150 to 200 |
Typical Applications
This steel is widely used in transmission systems, tractor motors, and small to medium automotive applications. It serves as an alternative to 12CrNi3 for higher-class carburization and cyanide carburizing parts including:
- Oil drilling components
- Mining claws and cones
- Carburized gears and pinions
- Shafts and bearings
- Piston rings and ring gears
- Crankshafts
Available Stock Sizes
Round Bar Diameter: 12-380mm
Material Conditions Available
Our steel materials are available in various forms and conditions to meet specific customer requirements:
- Forms: Round bars, flat bars, plates, and blocks
- Conditions: Pre-hardened, hot rolled, annealed, quenched and tempered
- Surface Conditions: Black, pre-machined, grinding, and polished
Quality Assurance & Services
Quality Commitment
We source materials exclusively from government-owned steel mills to ensure consistent quality. Our ISO 9001 certified quality management system undergoes regular audits and recertification to maintain the highest standards.
Our Services
- Quality special steel for all industries
- Orders of any size and length with fast shipping
- Unique inventory of specialty steel
- Value-added services: metal cutting, sizing, machining (blanking, milling, grinding)
- Heat treatment services
- Sawing for small or large quantities, sawing-to-size
- Excellent customer service
