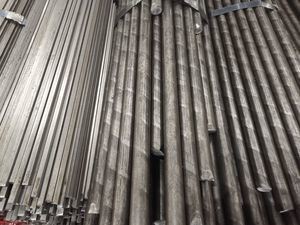

Polished Surface High Tensile Strength 4340 Alloy Steel Round Bar for Mold Steel Applications

Minimum Order Quantity	1 Ton
Price	US $780-1,450 / Ton

Product Details

Model Number	SAE4340	Surface Treatment	Polished
Diameter Range	6-630mm	Round Bar Diameter	16-600mm
Round Bar Length	3000-6000mm	Plate Thickness	16-200mm
Plate Width	200-800mm	Plate Length	3000-6000mm
Carbon Content	0.37-0.44%	Silicon Content	0.17-0.37%
Manganese Content	0.50-0.80%	Chromium Content	0.60-0.90%
Nickel Content	1.25-1.65%	Molybdenum Content	0.15-0.25%
Production Capacity	500tons
Highlight	Polished Surface Alloy Steel Round Bar , High Tensile Strength Steel Round Bar , Mold Steel Application 4340 Steel Bar

Leave a Message

Product Description

SAE4340/1.6511 Alloy Engineering Steel Round Bar

Hot rolled and forged 1.6582 4340 40CrNiMoA 34CrNiMo6 alloy steel rods designed for tools, shafts, bolts, and hammer shanks.

International Grade Equivalents

GB	AISI	DIN	JIS	EN	TOCT	ISO
40CrNiMoA	4340	1.6582	SNCM439	41NiCrMo 7-3-2	40XH2MA (40XHMA)	36CrNiMo4

Product Specifications

Product Form	Diameter/Thickness (mm)	Width (mm)	Length (mm)
Round Bar	16-600	/	3000-6000
Plate	16-200	200-800	3000-6000

Custom specifications available upon request.

Chemical Composition

Grade	C	Si	Mn	P	S	Cr	Ni	Mo
40CrNiMo	0.37-0.44%	0.17-0.37%	0.50-0.80%	≤0.025%	≤0.025%	0.60-0.90%	1.25-1.65%	0.15-0.25%
4340	0.38-0.43	0.15-0.35	0.60-0.80	≤0.035	≤0.040	0.70-0.90	1.65-2.00	0.20-0.30

Material Properties

Chromium molybdenum alloy steel construction
High strength and toughness characteristics
Excellent hardenability stability and anti-overheating properties
Superior high tensile strength with exceptional shock resistance

Typical Applications

Heavy machinery and high-load shafts
Rotor shafts and turbine blades
Critical components requiring nitriding treatment for special performance

Packaging Specifications

20ft Container: Gross Weight 27T (5.80m × 2.13m × 2.18m)

40ft Container: Gross Weight 27T (11.8m × 2.13m × 2.18m)

Delivery Timeline

Standard products: 15-20 days (abundant stock available)

Customized products: 30-50 days

Full equipment capability including sawing, grinding, and polishing machines for custom specifications

Additional Steel Products

DIN	AISI	JIS	GB	Flat Bar Thickness (mm)	Flat Bar Width (mm)	Flat Bar Length (mm)	Round Bar Diameter (mm)	Round Bar Length (mm)	Manufacturing Process
1.121	SAE1050	S50C	50#	10-450	155-2200	2000-12000			Forged, Hot Rolled
1.2311	P20	PDS-3	3Cr2Mo	10-460	155-2200	2000-10000	20-200	2000-6000
1.2738	P20+Ni	-	3Cr2NiMnMo	21-300	155-2200	2000-8000	20-200	2000-6000
1.2379	D2	SKD10	SKD10	10-200	155-810	2000-6000	14-80	3000-6000
1.2080	D3	SKD1	3Cr2Mo	10-200	155-810	2000-6000	20-200	3000-6000
1.2083	420	-	4Cr13	10-500	155-1200	2000-6000	12-300	3000-6000
1.2344	H13	SKD61	4Cr5MoSiV1	10-500	155-1600	2000-6000	16-400	3000-6000
1.2510	O1	SKS3	9CrWMn	10-200	155-810	2000-6000	20-200	3000-6000
1.7225	SAE4140	SCM440	42CrMo	10-280	155-2200	2000-6000	16-450	3000-6000
