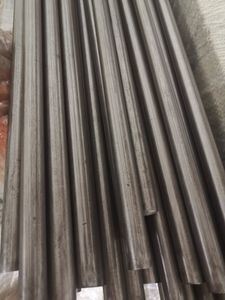

Polished Surface 4340 Steel Bar with High Tensile Strength for Mold Steel Application

Minimum Order Quantity	1 Ton
Price	US $1,030-1,450 / T

Product Details

Material Grade	SAE4340	Diameter Range	6-630mm
Round Bar Diameter	16-600mm	Plate Thickness	16-200mm
Plate Width	200-800mm	Length	3000-6000mm
Carbon Content	0.37-0.44%	Silicon Content	0.17-0.37%
Manganese Content	0.50-0.80%	Phosphorus Content	≤0.025%
Sulfur Content	≤0.025%	Chromium Content	0.60-0.90%
Nickel Content	1.25-1.65%	Molybdenum Content	0.15-0.25%
Surface Treatment	Polished
Highlight	Polished Surface Alloy Steel Round Bar , High Tensile Strength 4340 Steel Bar , Mold Steel Application 40CrNiMoA Steel Rod

Leave a Message

Product Description

SAE4340 Alloy Steel Rod - ASTM A322 Standard

Hot rolled and forged 1.6582 4340 40CrNiMoA 34CrNiMo6 alloy steel rod designed for tool applications, featuring bright rod cold drawn tolerances H9, annealed and peeled surface finish.

International Grade Equivalents

GB	AISI	DIN	JIS	EN	TOCT	ISO
40CrNiMoA	4340	1.6582	SNCM439	41NiCrMo 7-3-2	40XH2MA (40XHMA)	36CrNiMo4

Product Specifications

Product Form	Diameter/Thickness (mm)	Width (mm)	Length (mm)
Round Bar	16-600	/	3000-6000
Plate	16-200	200-800	3000-6000

Custom specifications available upon request.

Chemical Composition

Grade	C	Si	Mn	P	S	Cr	Ni	Mo
40CrNiMo	0.37-0.44%	0.17-0.37%	0.50-0.80%	≤0.025%	≤0.025%	0.60-0.90%	1.25-1.65%	0.15-0.25%
4340	0.38-0.43%	0.15-0.35%	0.60-0.80%	≤0.035%	≤0.040%	0.70-0.90%	1.65-2.00%	0.20-0.30%

Key Features

Chromium molybdenum alloy steel composition
High strength and toughness properties
Excellent stability of hardenability and anti-overheating characteristics
Superior high tensile strength with exceptional shock resistance

Typical Applications

Heavy machinery and high-load shaft components
Rotor shafts and turbine blades
Critical parts requiring special performance after nitriding treatment

Packaging Details

20ft Container: Gross Weight 27T (5.80m × 2.13m × 2.18m)
40ft Container: Gross Weight 27T (11.8m × 2.13m × 2.18m)

Delivery Timeline

Stock Products: 15-20 days
Customized Products: 30-50 days
Full equipment capability including sawing, grinding, and polishing machines for custom specifications.

Additional Product Range

Changfeng Tool & Die Steel offers comprehensive steel product portfolio:

DIN	AISI	JIS	GB (China)	Flat Bar Thickness (mm)	Flat Bar Width (mm)	Flat Bar Length (mm)	Round Bar Diameter (mm)	Round Bar Length (mm)	Manufacturing Process
1.121	SAE1050	S50C	50#	10-450	155-2200	2000-12000			Forged, Hot Rolled
1.2311	P20	PDS-3	3Cr2Mo	10-460	155-2200	2000-10000	20-200	2000-6000
1.2738	P20+Ni	-	3Cr2NiMnMo	21-300	155-2200	2000-8000	20-200	2000-6000
1.2379	D2	SKD10	SKD10	10-200	155-810	2000-6000	14-80	3000-6000
1.2080	D3	SKD1	3Cr2Mo	10-200	155-810	2000-6000	20-200	3000-6000
1.2083	420	-	4Cr13	10-500	155-1200	2000-6000	12-300	3000-6000
1.2344	H13	SKD61	4Cr5MoSiV1	10-500	155-1600	2000-6000	16-400	3000-6000
1.2510	O1	SKS3	9CrWMn	10-200	155-810	2000-6000	20-200	3000-6000
1.7225	SAE4140	SCM440	42CrMo	10-280	155-2200	2000-6000	16-450	3000-6000

Company Profile

Professional special steel company specializing in steel products since 2005. Our comprehensive product range includes Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel, and Forged Blocks.

We maintain close partnerships with leading Chinese special steel manufacturers including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel, and Daye Special Steel to ensure consistent high-quality products.
