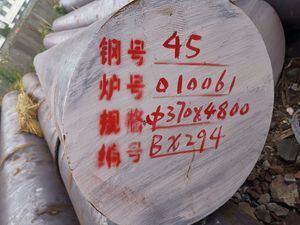

SAE1045 Round Bar S45C High Strength Quenching and Tempering Wear Resistant Carbon Steel Rod
Product Details
| Model NO. | SAE1045 S45c | Surface Treatment | Polished |
|---|---|---|---|
| Alloy Type | Non-alloy | Diameter Range | OD 6-630mm |
| Carbon Content | 0.42-0.5 | Silicon Content | 0.17-0.37 |
| Manganese Content | 0.5-0.8 | Chromium Content | ≤0.25 |
| Phosphorus Content | ≤0.035 | Sulfur Content | ≤0.035 |
| Tensile Strength | 600 N/mm2 Min | Yield Strength | 355 N/mm2 Min |
| Elongation | 16% Min | Reduction Area | 40% Min |
| Hardness | 229 HB Max | ||
| Highlight | High Strength SAE1045 Round Bar,Quenching and Tempering S45C Steel Round Bar,Wear Resistant Carbon Steel Rod |
||
Product Description
SAE1045 Round Bar S45C Carbon Steel Rod
Product Overview
AISI 1045 steel round bar is a high carbon steel under American standards, classified as a quenching and tempering steel with excellent strength properties. Available in hot rolled round bars, square bars, cold-drawing bars, and forged bars, this material is ideal for demanding industrial applications.
Applications
AISI 1045 round bar is widely used for manufacturing moving parts requiring high strength, including:
- Plunger of air compressor and pump
- Rolled shaft and connecting rod
- Endless screw and gear rack
- Dowel of heavy machines
- Crank axle and machine tool shaft
- Transmission shaft and wear resistant parts
Chemical Composition
| Grade | C | Si | Mn | Cr | P | S | Ni | Cu |
|---|---|---|---|---|---|---|---|---|
| AISI 1045 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | ≤0.25 | ≤0.035 | ≤0.035 | ≤0.3 | ≤0.25 |
Mechanical Properties
| Grade | Delivery State | T.S. (N/mm²) Min | Y.S. (N/mm²) Min | A,% Min | Z,% Min | Hardness, HB max | Forging ratio | Grain Size (level) | Nonmetal ratio | |
|---|---|---|---|---|---|---|---|---|---|---|
| AISI 1045 | Hot rolled, forged, or heat treatment | 600 | 355 | 16 | 40 | 229 | 197 | ≥ 4:1 | ≥ 6 | ≤ 2.0 |
Available Steel Grades
| Steel Series | Representative Steel Type |
|---|---|
| Carbon Steel series | AISI 1020, 1045, A36, S355JR, S355JO |
| Petroleum machinery series | AISI 4150, AISI 4140, AISI 4130, 30CrMo, 4145H |
| Tool mold series | 1.2714, 5CrMnMo, 5CrNiMoV, 1.2738, 1.2311, 1.2312 |
| Bearing series | 52100, GCr15, SUJ2 |
| Marine series | 4140, 42CrMo, SCM440, 709M40 |
Available Sizes
- Forged Steel Round Bar: Φ85mm~1200mm
- Forged Square Steel Bar: 150×150-800×800mm
- Forged Flat Blocks: (150mm-800mm)×(200mm-800mm)
- Forged Shaft and Forged Rings: Custom sizes according to customer drawings
Frequently Asked Questions
Q: How long is your delivery time?
A: Generally 5-10 days for in-stock goods, or 15-20 days for non-stock items depending on quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we offer samples free of charge, but freight costs are not included.
Q: What is your MOQ?
A: Our standard MOQ is 5 tons. Smaller quantities may have slightly higher pricing.
Q: How to buy your ideal products?
A: Provide your drawing for production, or we can design according to your requirements if you don't have a clear plan.
Q: How to pay?
A: TT and L/C are acceptable. TT preferred with 30% deposit before production and 70% balance before loading.
Other Available Products
Angle line structural steel, H beam, I beam, Channel. Square, rectangular, round hollow section pipe. Steel plate, checker plate, corrugated sheet, steel coil. Flat, square, round bar. Screw, Stud bolt, nut, washer, flange and other related pipe kits.
