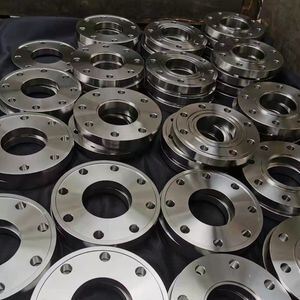

ISO14001 Certified ANSI B16.5 Standard Stainless Steel 316 Flange Pipe Fitting for High-Temperature Applications
Product Details
| Structure | Flanges | Connection Type | Screws |
|---|---|---|---|
| Sealing Surface | TG | Manufacturing Method | Forging |
| Size Range | DN10 - DN600 | Production Capacity | 100000 PCS / Year |
| Material Grade | Stainless Steel 316 | Standards | ANSI B16.5 |
| Surface Treatment | Chamfering | Pressure Class | Class 300 |
| Material Options | ASTM A182 F304/304L/304H, F316/316L, F310, F321, F904L, Etc | Nickel Alloys | Nickel 200, Nickel 201, Monel 400, Monel 500, Inconel 800, Inconel 825, Inconel 600, Inconel 625, Inconel 601, Hastelloy C 276, Alloy 20, Titanium (Grade I & II) |
| Duplex Steel | ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61, 2205 (UNS No. S31803), 2507 (UNS No.S32750) | Copper Alloys | UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C71500 (Cu -Ni- 70/30) |
| Chemical Resistance | Corrosion Resistant, High-temperature Resistant | ||
| Highlight | ISO14001 Certified Flange,ANSI B16.5 Standard Pipe Fitting,Stainless Steel 316 Flange |
||
Product Description
ISO14001 Class 300 ANSI B16.5 Stainless Steel 316 Flanges
Product Specifications
| Type | Stainless Steel Flange |
|---|---|
| Size Range | DN30 - DN1000 |
| Flange Types | SO, WN, SW, TH, LJ, BL, PL, etc. |
| Surface Treatment | Chamfering |
| Applications | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc. |
Available Materials
- Carbon Steel: ASTM A105/A105N
- Stainless Steel: ASTM A182 F304/304L/304H, F316/316L, F310, F321, F904L
- Alloy Steel: ASTM A182 F1, F5, F9, F11, F22, F91
- Nickel Alloys: Nickel 200, Nickel 201, Monel 400/500, Inconel series, Hastelloy C 276, Alloy 20, Titanium
- Duplex & Super Duplex: ASTM/ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61, 2205, 2507
- Copper Alloys: Various UNS grades including C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30)
Key Features
- Excellent durability and long service life
- Superior corrosion resistance for harsh environments
- High-temperature resistant performance
- Custom specifications available upon request
- Widely used in fuel and water pipeline systems
- Creates secure junctions, tees, and joints with gasket sealing
Industry Applications
- Petrochemical Industry
- Pharmaceutical Industry
- Food Processing Industry
- Aviation and Aerospace Industry
- Architectural Decoration Industry
- Oil and Gas Industry
Manufacturing Standards
Our flanges comply with international standards including GB/T9119-2000, JB/T4700-2000, HG20592-2009, HG5010-58, JB/T81-94, SH3406-1996, ANSI, DIN, JISB2220-2004, and ISO7005-1.
