F347 Stainless Steel Pipe Flange with ASME B16.5 Standard in DN10-DN600 Size Range
Product Details
| Structure | Flanges | Connection Type | Screws |
|---|---|---|---|
| Sealing Surface | TG | Manufacturing Method | Forging |
| Size Range | DN10 - DN600 | Material Grades | F304/304L/304H, F316/316L, F310, F321, F904L, F1, F5, F9, F11, F22, F91, Nickel 200, Monel 400, Inconel 600, Hastelloy C 276, Duplex F51/F53/F55/F60 |
| Surface Treatment | Chamfering | Standards | SO, WN, SW, TH, LJ, BL, PL |
| Production Capacity | 100000 PCS / Year | Chemical Resistance | Corrosion Resistant |
| Temperature Resistance | High-temperature Resistant | Material Types | Carbon Steel, Stainless Steel, Alloy Steel, Nickel Alloys, Duplex, Super Duplex, Copper Alloy |
| Flange Types | Non-standard, Flat Welding, Butt Welding, Marine | Compliance Standards | GB/T9119-2000, JB/T4700-2000, HG20592-2009, ANSI, DIN, JISB2220-2004, ISO7005-1 |
| Special Specifications | Customizable | ||
| Highlight | F347 Stainless Steel Flange,ASME B16.5 Pipe Flange,DN10-DN600 Stainless Steel Flange |
||
Product Description

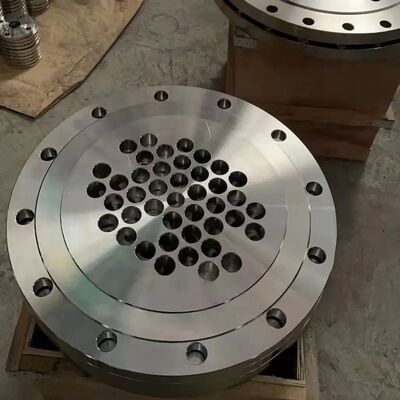

F347 A182 ASME B16.5 Stainless Steel Pipe Flange
High-quality stainless steel flanges manufactured to ASME B16.5 standards, designed for demanding industrial applications requiring durability and corrosion resistance.
| Type | Stainless Steel Flange |
| Size Range | DN30 - DN1000 |
| Available Standards | SO, WN, SW, TH, LJ, BL, PL, and more |
| Material Specifications |
Carbon Steel: ASTM A105/A105N Stainless Steel: ASTM A182 F304/304L/304H, F316/316L, F310, F321, F904L Alloy Steel: ASTM A182 F1, F5, F9, F11, F22, F91 Nickel Alloys: Nickel 200, Nickel 201, Monel 400, Monel 500, Inconel series Duplex & Super Duplex: ASTM/ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61 Copper Alloys: Various UNS specifications including C70600, C71500 |
| Surface Treatment | Chamfering |
| Applications | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction |
Key Features
Chemical and Physical Characteristics
- Exceptional durability and long service life
- Superior corrosion resistance
- High-temperature resistant performance
- Custom specifications available upon request
Plate flanges are widely used in fuel and water pipelines, where two flange plates are bolted together with a gasket in between. The flange plate features bolt holes around the perimeter for creating junctions, tees, and joints.
Industry Applications
- Petrochemical Industry
- Pharmaceutical Industry
- Food Processing Industry
- Aviation and Aerospace Industry
- Architectural Decoration Industry
- Oil and Gas Industry

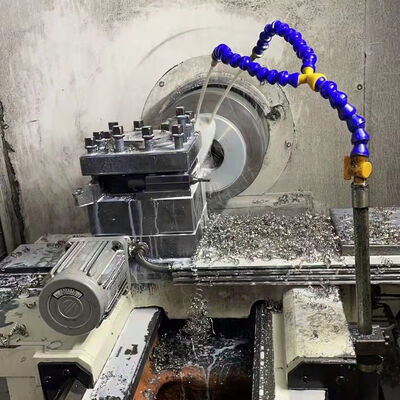

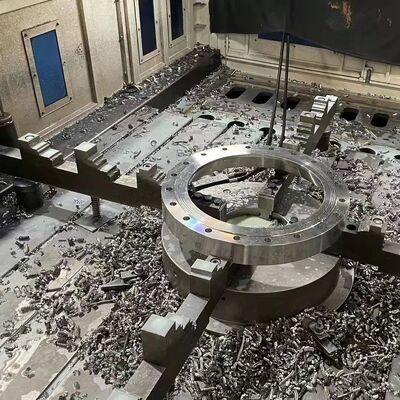

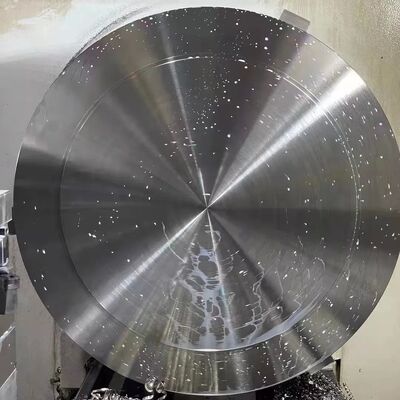

Manufacturing Capabilities
Our company, located in Wuxi, specializes in production, sales, and technical services for flanges. We manufacture to various international standards including GB/T9119-2000, JB/T4700-2000, HG20592-2009, HG5010-58, JB/T81-94, SH3406-1996, ANSI, DIN, JISB2220-2004, and ISO7005-1.
We produce non-standard flanges, flat welding flanges, flat welding flanges with neck, butt welding flanges with neck, and marine flanges. Our material expertise includes 304, 304L, 321, F321, 316L, 317L, 2520, 310S, 329, 317, F347, SUS630, 904L, F51, F53, F55, F60 (duplex steel), Mo steel, heat resistant steel, and other special materials.
