Hot Rolled Stainless Steel Flat Bar with Polished Surface and Width 10-600mm
Product Details
| Shape | Flat | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Polished | Width Range | 10-600mm |
| Thickness Range | 2mm-100mm | Length | 2m-6m |
| Grade | 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347H, 409, 409L, 410, 420, 430 | Standard | JIS, AISI, ASTM, GB, DIN |
| Production Capacity | 50000kgs | Surface Options | Pickling, Bright, Black |
| Min Width | 20mm | Max Width | 500mm |
| Max Length | 6000mm | Thickness Options | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 15mm |
| Transport Package | Wooden Pallet | ||
| Highlight | Hot Rolled Stainless Steel Flat Bar,Polished Surface SS Flat Bar,Width 10-600mm Inox Flat Bar |
||
Product Description
Stainless Steel Flat Bars
Premium 304 (1.4301) and 316L (1.4404) stainless steel flat bars slit from strip and cut to fixed lengths for industrial applications.
Product Overview
We are a factory-direct supplier offering stainless steel flat bars, angle bars, channel bars, round bars, and custom stainless steel products manufactured to customer specifications.
| Product Name | 316L Stainless Steel Flat Bars |
|---|---|
| Available Sizes | 20x4mm to 200x40mm |
| Surface Finish | Black / Bright |
| Standard Length | 6 meters or as required |
| Manufacturing Types | Hot Rolled / Cold Rolled / Forging |
| Certification | SGS / BV |
Technical Specifications
| Type | Stainless Steel Flat Bar |
|---|---|
| Standards | JIS, AISI, ASTM, GB, DIN |
| Available Grades | 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347H, 409, 409L, 410, 420, 430, etc. |
| Specification Range | Thickness: 2mm~100mm, Width: 10mm~500mm |
| Standard Length | 2m-6m, or according to client requirements |
| Surface Treatment | Pickling, Bright, Black |
| Packaging | In bundles with seaworthy wooden pallets or as required |
Detailed Specifications
| Thickness | Available Widths & Length |
|---|---|
| 3mm | 20mm / 25mm / 30mm / 40mm / 50mm / 60mm / 65mm / 75mm / 150mm max. (Widths) x 6000mm |
| 4mm | 25mm / 30mm / 40mm / 50mm / 60mm / 65mm / 75mm / 150mm max. (Widths) x 6000mm |
| 5mm | 25mm / 30mm / 40mm / 50mm / 60mm / 65mm / 75mm / 150mm max. (Widths) x 6000mm |
| 6mm | 25mm / 30mm / 40mm / 50mm / 60mm / 65mm / 75mm / 150mm max. (Widths) x 6000mm |
| 8mm | 40mm / 60mm / 65mm / 75mm / 150mm max. (Widths) x 6000mm |
| 10mm | 50mm / 60mm / 65mm / 75mm / 150mm max. (Widths) x 6000mm |
| 15mm | 50mm / 60mm / 65mm / 75mm / 150mm max. (Widths) x 6000mm |
Industry Applications
Stainless steel flat bars are versatile structural components used across multiple industries:
- Construction and building structures
- Shipbuilding industry
- Petroleum and chemical processing
- Power generation and utilities
- Food processing and medical equipment
- Boiler heat exchangers
- Machinery and hardware manufacturing
- Structural frameworks, beams, and bridges
- Transmission towers and lifting equipment
- Industrial furnaces and reaction towers
- Container frames and warehouse shelving
Competitive Advantages
As a leading manufacturer and exporter of stainless steel products, we offer:
- Standard material quality and excellent surface finish
- Optimum strength and long service life
- Superior corrosion resistance properties
- Competitive pricing with reliable service
- ISO9001 certified manufacturing processes
Ordering Information
| Trade Terms | FOB, CIF |
|---|---|
| Loading Port | Shanghai, China |
| Delivery Time | 5-30 days after receiving confirmation of prepayment |
| Quality Reports | Material report, Mechanical performance report |
| Certification | ISO9001 |

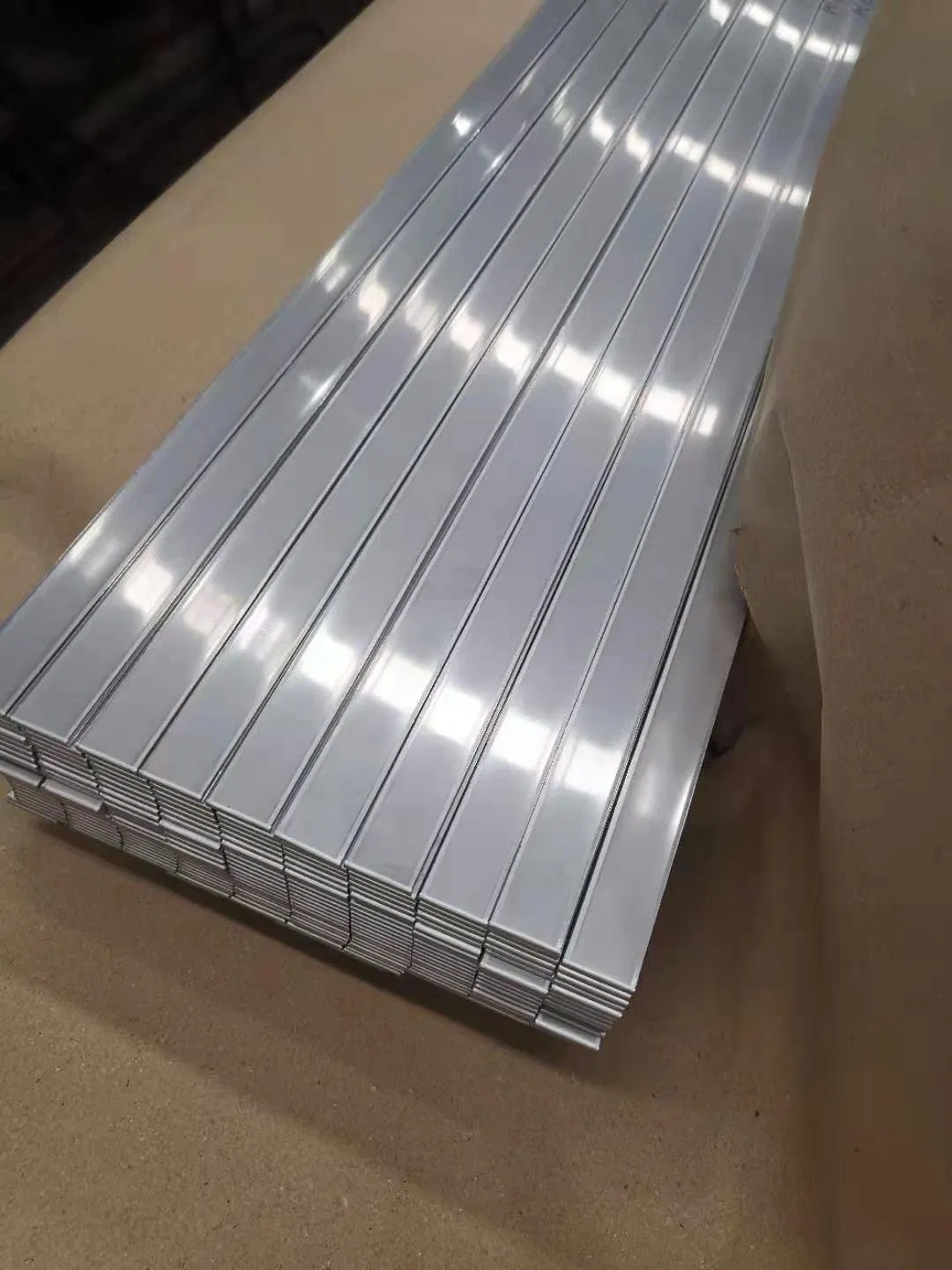

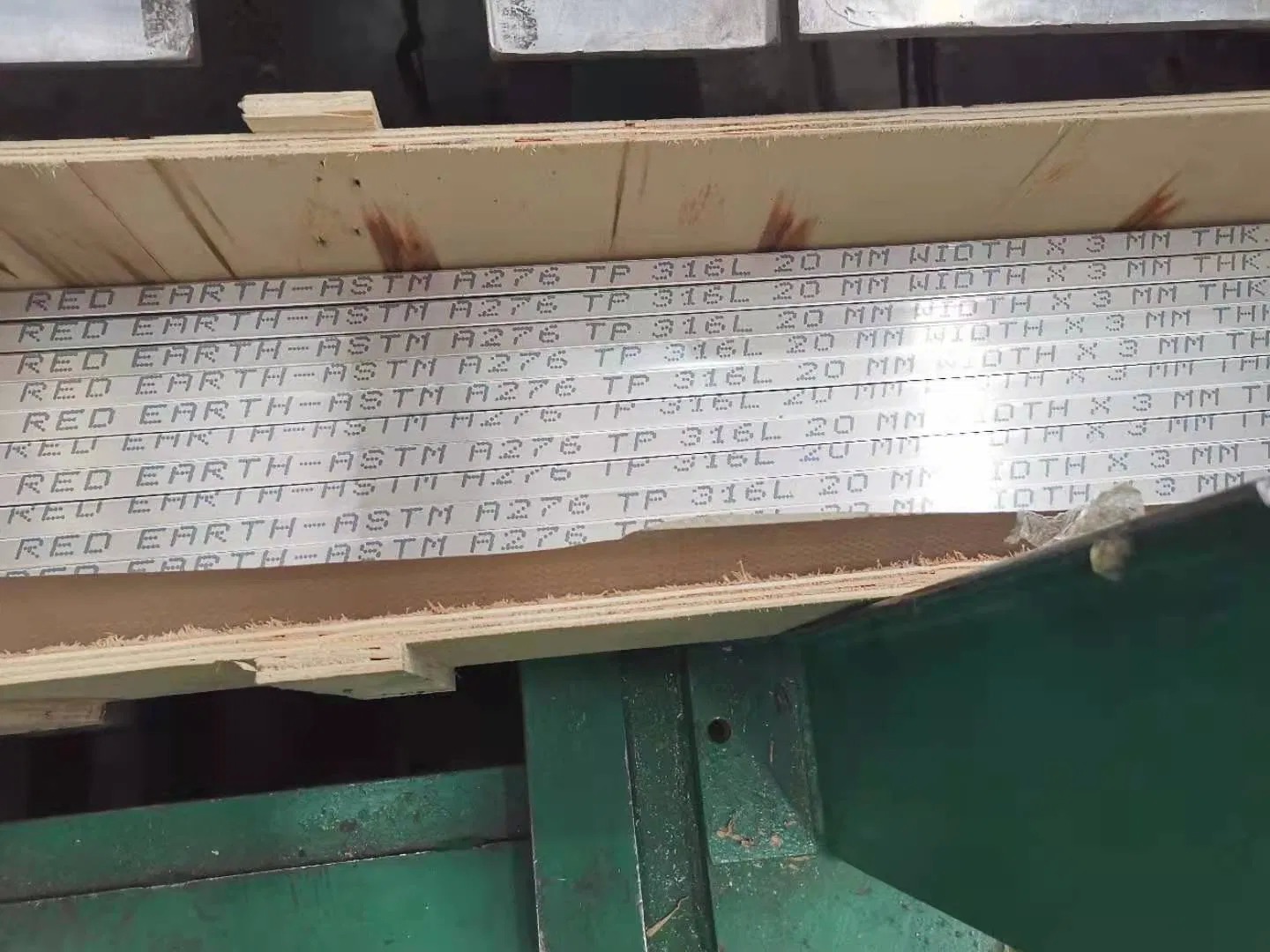

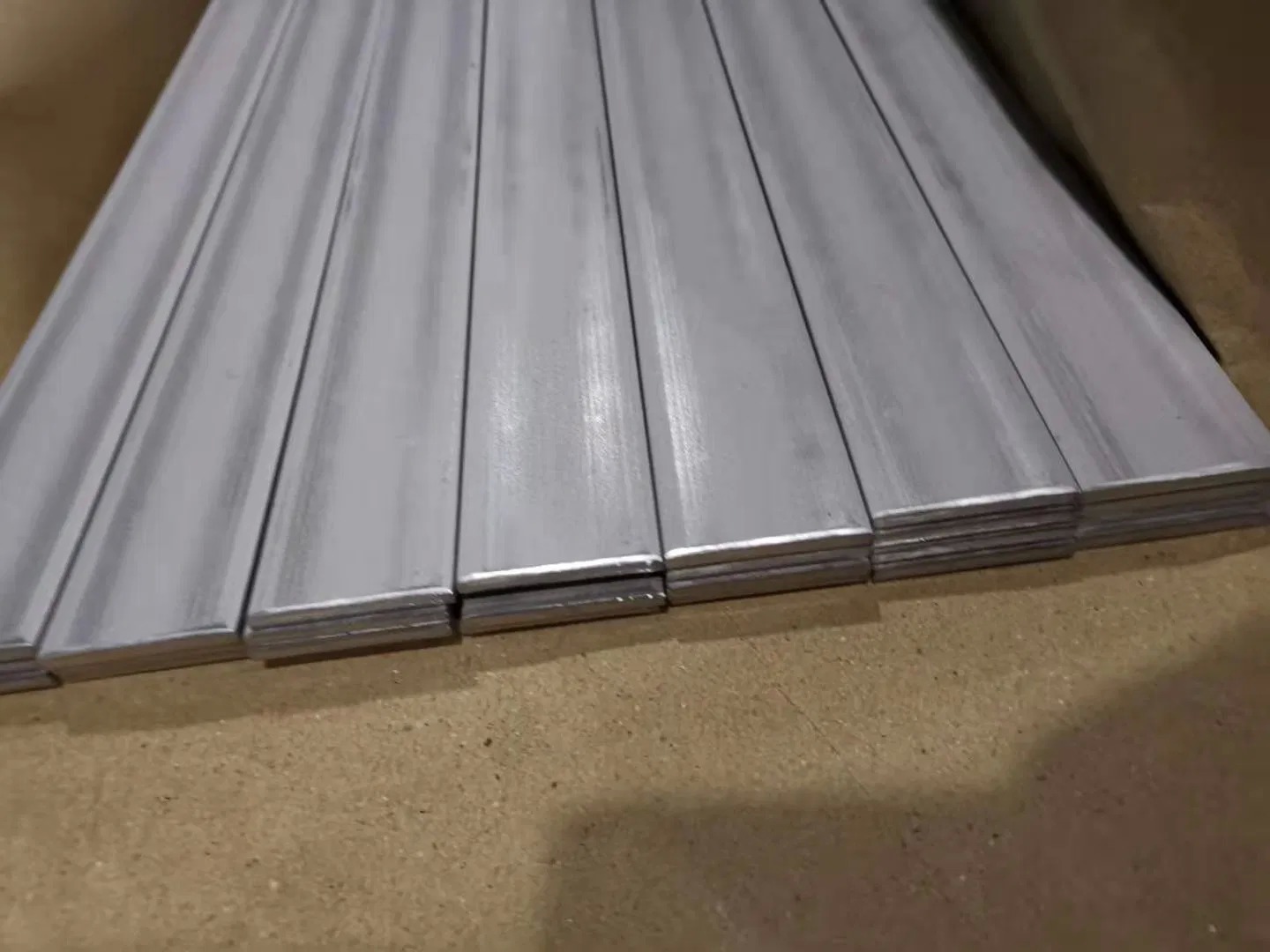

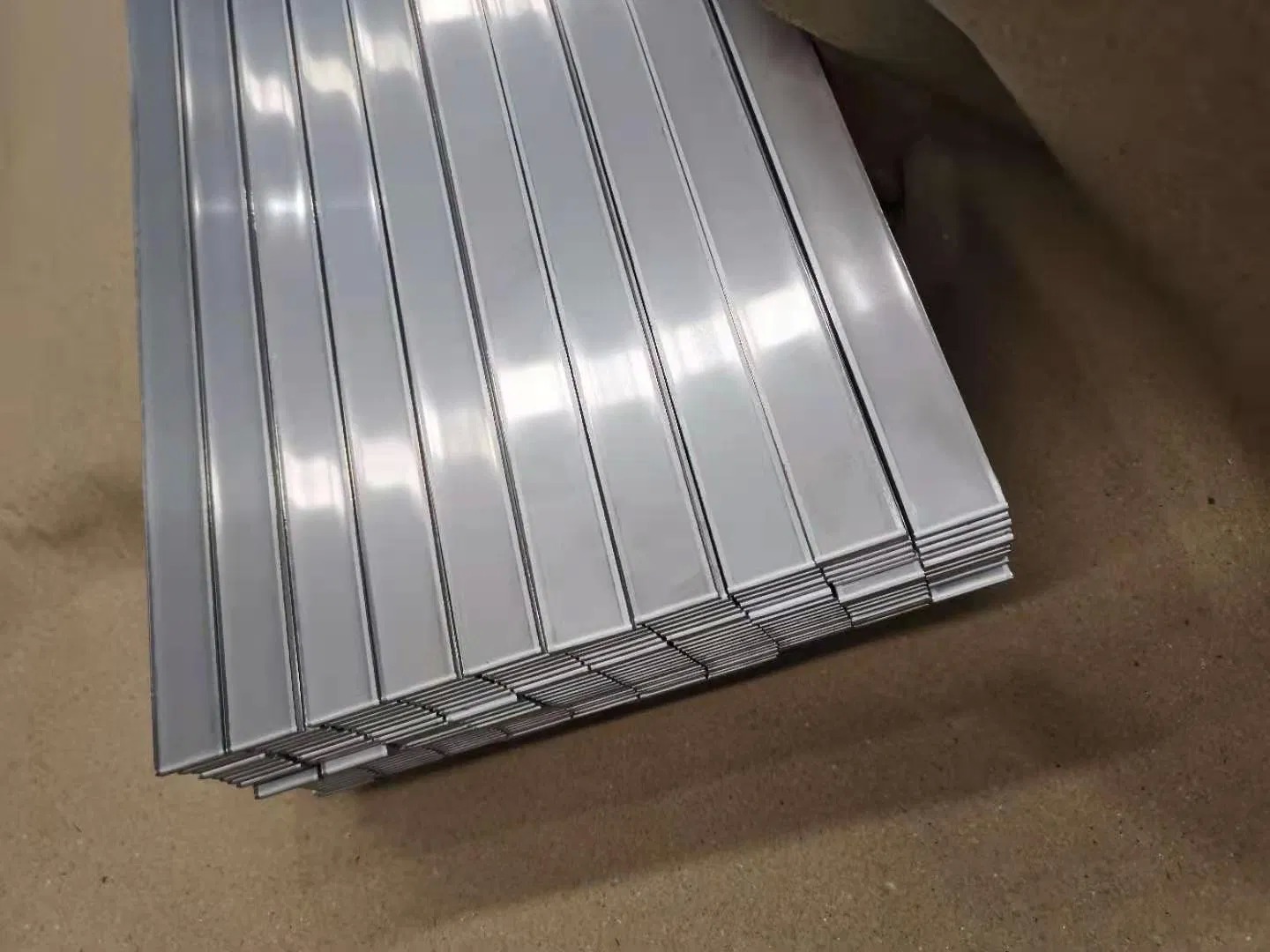

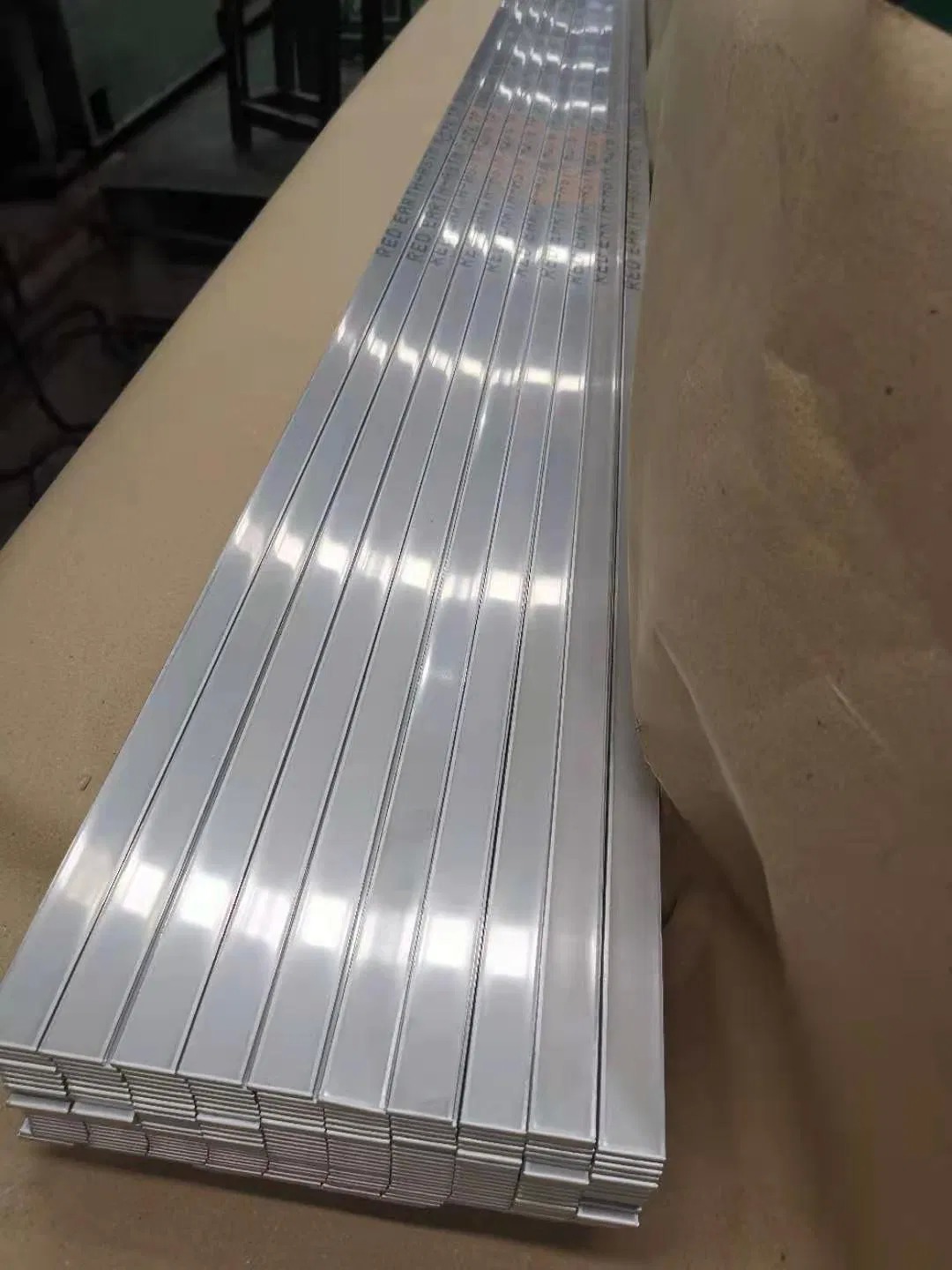

Product Gallery
