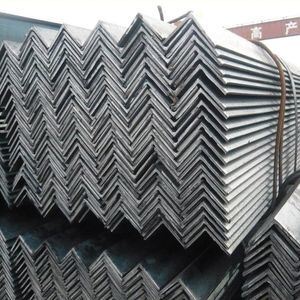

EN 10028 Europe Standard Hot Rolled Stainless Steel Angle Bar with Pickling Surface
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Pickling | Angle Bar Size | 30*30*3 - 200*200*10mm * 6m Length |
| Channel Bar Size | 50*30*3 - 200*100*10mm * 6m Length | Angle Bar Weight | 0.894 - 15.0 Kg/m |
| Channel Bar Weight | 1.79 - 35.8 Kg/m | Grade | 201 304 310S 316L 321 2205 |
| Standard | ASTM GB DIN | Thickness Range | 3 - 12mm |
| Length | 6m | Material | Stainless Steel |
| Angle Bar Dimensions | 20×20 - 100×100mm | Channel Bar Dimensions | 40×20 - 200×100mm |
| Service | Cutting | ||
| Highlight | EN 10028 Europe Standard Stainless Steel Angle Bar,Hot Rolled SS Angle Bar,Pickling Surface Stainless Steel Channel Bar |
||
Product Description
EN 10028 Europe Standard Stainless Steel Angle Bars & Channel Bars
High-quality 304, 316L, 310S, 321, and 2205 stainless steel angle bars and channel bars manufactured to EN 10028 European standards.
Product Specifications
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standard | ASTM, GB, DIN |
| Angle Bar Size | 30×30×3 - 200×200×10mm × 6m length |
| Channel Bar Size | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |
| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
Stainless Steel Angle Bar - Standard Sizes & Weights (kg/m)
| Size (A×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar - Standard Sizes & Weights (kg/m)
| Size (H×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
Our company specializes in stainless steel material wholesale, processing, storage, and distribution as one of the leading stainless steel industry and trade enterprises. Located in Wuxi, the stainless steel trading center, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute stainless steel plates imported from Sweden, North America, South Africa, Japan, and South Korea.
Available Materials
- 310S, 309S, 316L, 321, 304L, TP304, 347H
- 17-4PH, 317L, 2507, 2205, 904L
- High-temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series
Processing Capabilities
- Plasma cutting machines
- Coil material opening equipment
- Laser cutting machines
- 8K mirror, grinding, wire drawing, film and titanium plating equipment
- Material opening, strip cutting, plate cutting
- Oil mill wire drawing, complete coil oil film wire drawing
- Thick plate cutting up to 150mm thickness
- Custom cutting of rounds, squares, and shaped pieces
- Casting parts and forging parts
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.
Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel bridge construction
- Columns and booms of tower cranes on construction sites
- Columns and beams in workshop structures
- Air-conditioning and solar-powered shelf supports under windows
Widely applied in building structures and engineering construction projects such as house beams, ship beams, industrial furnaces, and various structural applications across multiple industries.
