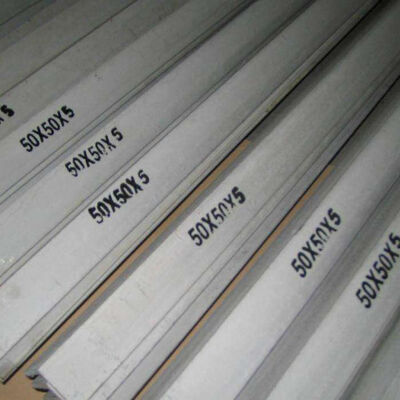

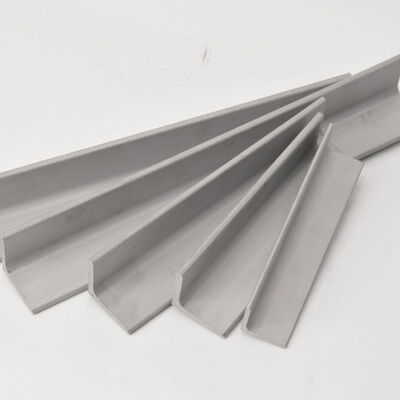

Hot Rolled Pickling Surface Stainless Steel Angle Bar 30*30-100*100mm SS Channel Bar
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Pickling | Angle Bar Size | 30*30*3 - 200*200*10mm |
| Channel Bar Size | 50*30*3 - 200*100*10mm | Length | 6m |
| Angle Bar Thickness | 3-10mm | Channel Bar Thickness | 3-12mm |
| Angle Bar Weight | 0.894-15.0 Kg/m | Channel Bar Weight | 1.79-35.8 Kg/m |
| Grade | 201, 304, 310S, 316L, 321, 2205 | Standard | ASTM, GB, DIN |
| Material | Stainless Steel | Angle Bar Dimensions | 20×20 - 100×100mm |
| Channel Bar Dimensions | 40×20 - 200×100mm | ||
| Highlight | Hot Rolled Stainless Steel Angle Bar,Pickling Surface SS Angle Bar,30*30-100*100mm Stainless Steel Channel Bar |
||
Product Description
Stainless Steel Angle Bars & Channel Bars
Premium stainless steel angle bars and channel bars available in sizes 40×40×4mm, 50×50×5mm, and various other dimensions. Manufactured from high-quality grades including 201, 304, 316, 321, and 310S stainless steel.
Product Specifications
Technical Details
- Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
- Available Grades: 201, 304, 310S, 316L, 321, 2205, and others
- Standards: ASTM, GB, DIN
- Angle Bar Sizes: 30×30×3 - 200×200×10mm × 6m length
- Channel Bar Sizes: 50×30×3 - 200×100×10mm × 6m length
- Services: Custom cutting available
- Packing: Waterproof paper wrapping or wooden pallets
- Brand: TSINGSHAN
Standard Size & Weight Reference
Stainless Steel Angle Bar Weight (kg/m)
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar Weight (kg/m)
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have invested over 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term partnerships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and others. We also distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, Korea, and other regions.
Material Range: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L, high-temperature resistant stainless steel series, duplex stainless steel series, and super stainless steel series.
Processing Capabilities: Plasma cutting, coil material opening, laser cutting, 8K mirror finishing, grinding, wire drawing, film application, and titanium plating. We specialize in thick plate cutting (up to 150mm), custom shapes, castings, forgings, and manufacturer-direct customization.
Industry Applications: Machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and various other industrial sectors.
Product Gallery
Applications
Stainless steel angle bars and channel bars are essential structural components used in:
- Frame structures for high-voltage power transmission towers
- Main beam frameworks in steel structure bridges
- Columns and booms of construction site tower cranes
- Columns and beams in workshop structures
- Air conditioning and solar power mounting systems
- Building structures and engineering construction
- Ship beams and industrial furnace construction
Our stainless steel angle bars and channel bars are widely applicable across multiple industries including construction, marine, energy, and industrial manufacturing sectors.
