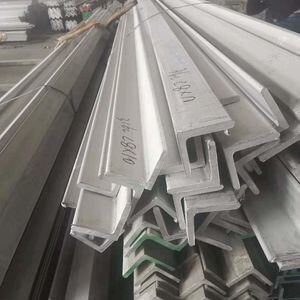

Hot Rolled 316L Stainless Steel Angle Bar - Corrosion Resistant 30x30-100x100mm Equal Angle
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Pickling | Angle Bar Size | 30*30*3 - 200*200*10mm |
| Channel Bar Size | 50*30*3 - 200*100*10mm | Length | 6m |
| Angle Bar Thickness | 3-10mm | Channel Bar Thickness | 3-12mm |
| Angle Bar Weight | 0.894-15.0 Kg/m | Channel Bar Weight | 1.79-35.8 Kg/m |
| Material Grade | 201, 304, 310S, 316L, 321, 2205 | Standard | ASTM, GB, DIN |
| Processing Service | Cutting | Packing | Waterproof Paper Or Wooden Pallets |
| Max Thickness | 150mm | ||
| Highlight | Hot Rolled Stainless Steel Angle Bar,Corrosion Resistant SS Angle Bar,30x30-100x100mm 316L Angle Bar |
||
Product Description
High Quality 316L Stainless Steel Angle Bar / 1.4404 Angle Stainless Steel
Product Specifications
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standard | ASTM, GB, DIN |
| Angle Bar Size | 30×30×3 - 200×200×10mm × 6m length |
| Channel Bar Size | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |
| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
Standard Size and Weight Specifications
Stainless Steel Angle Bar (Weight in kg/m)
| Size (A×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar (Weight in kg/m)
| Size (H×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in wholesale, material processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and others. We also distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, South Korea, and other regions.
Material Range
- 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L
- High temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series
Processing Capabilities
- Plasma cutting machine
- Coil material opening equipment
- Laser cutting machine
- 8K mirror, grinding wire drawing, film and titanium plating equipment
- Material opening, strip, plate cutting
- Oil mill wire drawing, complete coil oil film wire drawing
Specialized Services
Thick plate zero cutting, cutting round, cutting square, cutting shaped parts, casting parts, forging parts. Product thickness up to 150MM. Customized specifications available according to customer requirements.
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.
Product Photos
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel bridge construction
- Column and boom of tower cranes on construction sites
- Column and beam structures in workshop construction
- Air-conditioning and solar-powered shelf installations
- Building structures and engineering construction
- Ship beams and industrial furnace construction
Our stainless steel angle bars and channel bars are applied across various industries and construction applications.
