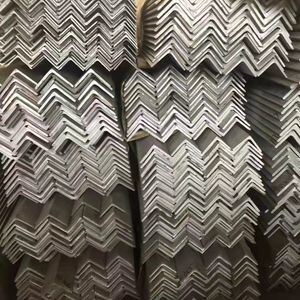

6m Length 304 Stainless Steel Angle Bar Hot Rolled Equal SS Channel Bar
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Pickling | Angle Bar Size | 30*30*3 - 200*200*10mm |
| Channel Bar Size | 50*30*3 - 200*100*10mm | Length | 6m |
| Grade | 201 304 310S 316L 321 2205 | Angle Bar Weight | 0.894 - 15.0 Kg/m |
| Channel Bar Weight | 1.79 - 35.8 Kg/m | Thickness Range | 3 - 12mm |
| Standard | ASTM GB DIN | Material | 304 Stainless Steel |
| Angle Bar Dimensions | 20×20 - 100×100mm | Channel Bar Dimensions | 40×20 - 200×100mm |
| Service | Cutting | ||
| Highlight | 6m Length Stainless Steel Angle Bar,304 Stainless Steel Angle Bar,Hot Rolled SS Angle Bar |
||
Product Description
6m Length 304 Stainless Steel Angles Equal Stainless Steel Bar
Product Specifications
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201 304 310S 316L 321 2205 etc |
| Standard | ASTM GB DIN |
| Size of Angle Bar | 30×30×3 - 200×200×10mm × 6m length |
| Size of Channel Bar | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |
| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
Standard Size and Weight per Meter - Stainless Steel Angle Bar
| Size (A×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Standard Size and Weight per Meter - Stainless Steel Channel Bar
| Size (H×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in the stainless steel trading center of Wuxi, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and others. We also distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, South Korea, and other countries.
Material Range & Processing Capabilities
- Materials: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L
- Specialized series: High temperature resistant, duplex stainless steel, super stainless steel
- Processing equipment: Plasma cutting, coil material opening, laser cutting, 8K mirror, grinding wire drawing, film and titanium plating
- Special services: Thick plate cutting (up to 150mm), custom shapes, casting parts, forging parts
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.
Product Photos
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including:
- High-voltage power transmission towers
- Steel structure bridge frameworks
- Tower crane columns and booms on construction sites
- Workshop columns and beams
- Air-conditioning and solar-powered shelf supports
Widely used in building structures and engineering construction such as house beams, ship beams, industrial furnaces, and various industrial applications across multiple sectors.
