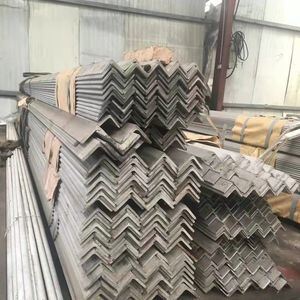

Hot Rolled 30*30*3mm Stainless Steel Angle Bar with Pickling Surface for Structural Applications
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Pickling | Angle Bar Size | 30*30*3 - 200*200*10mm |
| Channel Bar Size | 50*30*3 - 200*100*10mm | Length | 6m |
| Grade | 201 304 310S 316L 321 2205 | Angle Bar Weight | 0.894 - 15.0 Kg/m |
| Channel Bar Weight | 1.79 - 35.8 Kg/m | Thickness Range | 3 - 12mm |
| Standard | ASTM GB DIN | Service | Cutting |
| Packing | Waterproof Paper Or Wooden Pallets | Material | Stainless Steel |
| Processing | Plasma Cutting, Laser Cutting, 8K Mirror, Grinding Wire Drawing | ||
| Highlight | 30*30*3mm Stainless Steel Angle Bar,Hot Rolled Stainless Steel Channel Bar,Pickling Surface SS Angle Bar |
||
Product Description
Stainless Steel Angles & Channel Bars
Factory direct supply of high-quality stainless steel angle bars and channel bars in various dimensions including 30×30×3mm, 40×40×4mm, and 50×50×5mm.
Product Specifications
Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grades Available: 201, 304, 310S, 316L, 321, 2205, etc.
Standards: ASTM, GB, DIN
Angle Bar Sizes: 30×30×3 - 200×200×10mm × 6m length
Channel Bar Sizes: 50×30×3 - 200×100×10mm × 6m length
Services: Custom cutting available
Packaging: Waterproof paper wrapping or wooden pallets
Brand: TSINGSHAN
Standard Sizes & Weight Specifications
Stainless Steel Angle Bar Weight (kg/m)
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar Weight (kg/m)
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
We are a comprehensive stainless steel enterprise specializing in wholesale distribution, material processing, storage, and logistics. Located in Wuxi - the stainless steel trading hub - with total investment of 100 million RMB and annual sales exceeding 300 million RMB.
Strategic Partnerships
We maintain long-term cooperative relationships with leading steel mills including Taiyuan Steel, East Steel, Zhang Pu, Hongwang, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and Korea.
Material Range
Our product portfolio includes 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L, high-temperature resistant stainless steel series, duplex stainless steel series, and super stainless steel series.
Processing Capabilities
- Plasma cutting machines
- Coil material opening equipment
- Laser cutting machines
- 8K mirror finishing
- Grinding and wire drawing
- Film and titanium plating equipment
- Custom cutting up to 150mm thickness
- Special materials and specifications customization
Applications: Machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and various industrial sectors.
Product Gallery
Applications
Stainless steel angle bars and channel bars are essential structural components used in:
- High-voltage power transmission towers
- Steel structure bridge frameworks
- Tower crane columns and booms
- Industrial workshop columns and beams
- Air-conditioning and solar power mounting systems
- Building structures and engineering construction
- Ship building and industrial furnace construction
Our stainless steel products serve diverse applications across multiple industrial sectors with proven reliability and performance.
