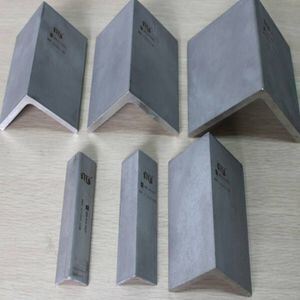

Hot Rolled 304 316L 310S Stainless Steel Angle Bar and SS Angle Bar in 30*30-100*100 Sizes
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Pickling | Angle Bar Size | 30*30*3 - 200*200*10mm * 6m Length |
| Channel Bar Size | 50*30*3 - 200*100*10mm * 6m Length | Grade | 201 304 310S 316L 321 2205 |
| Standard | ASTM GB DIN | Angle Bar Thickness | 3-10mm |
| Channel Bar Thickness | 3-12mm | Angle Bar Weight | 0.894-15.0 Kg/m |
| Channel Bar Weight | 1.79-35.8 Kg/m | Length | 6m |
| Material | Stainless Steel | Angle Bar Dimensions | 20×20 - 100×100mm |
| Channel Bar Dimensions | 40×20 - 200×100mm | ||
| Highlight | Hot Rolled Stainless Steel Angle Bar,304 316L 310S SS Angle Bar,30*30-100*100 Stainless Steel Channel Bar |
||
Product Description
Hot Rolled Stainless Steel Angles & Channel Bars
Premium quality stainless steel angle bars and channel bars available in grades 201, 304, 310S, 316L, 321, 2205, and more. Manufactured to ASTM, GB, and DIN standards for superior performance and durability.
Product Specifications
Product Type: Stainless Steel Angle Bar / Stainless Steel Channel Bar
Available Grades: 201, 304, 310S, 316L, 321, 2205, etc.
Standards: ASTM, GB, DIN
Angle Bar Sizes: 30×30×3 - 200×200×10mm × 6m length
Channel Bar Sizes: 50×30×3 - 200×100×10mm × 6m length
Services: Custom Cutting Available
Packing: Waterproof paper wrapping or wooden pallets
Brand: TSINGSHAN
Stainless Steel Angle Bar - Standard Sizes & Weights
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Weights shown in kg per meter
Stainless Steel Channel Bar - Standard Sizes & Weights
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
Weights shown in kg per meter
About Our Company
We are a comprehensive stainless steel enterprise specializing in wholesale distribution, material processing, storage, and logistics. Located in Wuxi - the heart of China's stainless steel trading industry, we have invested over 10 million yuan with annual sales exceeding 300 million yuan.
We maintain strong partnerships with leading steel mills including Taiyuan, East Steel, Zhang Pu, Hongxing, Zhejiang Qingshan, and others. Additionally, we distribute premium imported stainless steel plates from Sweden, North America, South Africa, Japan, and South Korea.
Material Range & Processing Capabilities
- Material Grades: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205, 904L
- Specialty Series: High-temperature resistant, duplex stainless steel, super stainless steel
- Processing Equipment: Plasma cutting machines, coil material opening equipment, laser cutting machines
- Surface Treatment: 8K mirror finishing, grinding, wire drawing, film coating, titanium plating
- Special Services: Thick plate cutting (up to 150mm), custom shapes, casting parts, forging parts
Our materials serve diverse industries including machinery, chemical processing, petroleum, boiler manufacturing, heat exchangers, food machinery, beverage equipment, and medical devices.
Product Gallery
Applications
Our stainless steel angle bars and channel bars are essential components for frame structures across multiple industries:
- High-voltage power transmission towers and electrical infrastructure
- Structural frameworks for steel bridges and construction projects
- Tower crane columns and booms on construction sites
- Industrial workshop columns, beams, and support structures
- Air conditioning mounting systems and solar power support frames
- Ship building and marine engineering applications
- Industrial furnace construction and high-temperature applications
These versatile structural components provide exceptional strength, corrosion resistance, and longevity for demanding industrial environments.
Contact Information
For pricing, technical specifications, and custom orders, please contact our sales team. We provide comprehensive support for all your stainless steel structural requirements.
