304 Stainless Steel Hot Rolled Equal Angle Bar 30*30-100*100mm for Structural Framing
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Bright | Angle Bar Size | 30*30*3 - 200*200*10mm |
| Channel Bar Size | 50*30*3 - 200*100*10mm | Length | 1000mm - 6000mm |
| Grade | 201 304 310S 316L 321 2205 | Standard | ASTM GB DIN |
| Angle Bar Weight | 0.894 - 15.0 Kg/m | Channel Bar Weight | 1.79 - 35.8 Kg/m |
| Thickness Range | 3 - 12mm | Material | Stainless Steel |
| Angle Bar Dimensions | 20×20 - 100×100mm | Channel Bar Dimensions | 40×20 - 200×100mm |
| Service | Cutting | ||
| Highlight | 304 Stainless Steel Angle Bar,Hot Rolled SS Angle Bar,30*30-100*100mm Equal Angle Bar |
||
Product Description
SUS / AISI / ASTM 304 Stainless Steel Equal Angle Bar
Available in lengths from 1000mm to 6000mm
Product Specifications
Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade: 201, 304, 310S, 316L, 321, 2205, etc.
Standard: ASTM, GB, DIN
Angle Bar Size: 30×30×3 - 200×200×10mm × 6m length
Channel Bar Size: 50×30×3 - 200×100×10mm × 6m length
Service: Cutting
Packing: Waterproof paper surround or wooden pallets
Brand: TSINGSHAN
Stainless Steel Angle Bar Specifications
Standard Size and Weight per Meter
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar Specifications
Standard Size and Weight per Meter
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in wholesale distribution, material processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute stainless steel plates imported from Sweden, North America, South Africa, Japan, South Korea, and other regions.
Product Materials: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L and other high-temperature resistant stainless steel series, duplex stainless steel series, and super stainless steel series.
Processing Capabilities: Plasma cutting machine, coil material opening equipment, laser cutting machine, 8K mirror finishing, grinding wire drawing, film and titanium plating equipment. We offer material opening, strip cutting, plate cutting, oil mill wire drawing, full coil oil film wire drawing, 8K mirror finishing, and titanium processing.
Specialized Services: Thick plate whole plate zero cutting, cutting round, cutting square, cutting shaped parts, casting parts, forging parts with thickness up to 150MM. Customized materials and specifications available according to customer requirements.
Industry Applications: Machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.

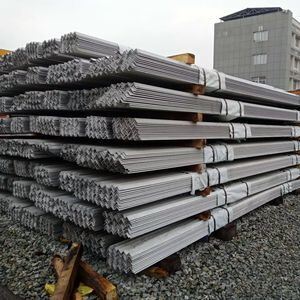

Product Photos
Product Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel structure bridges
- Columns and booms of tower cranes on construction sites
- Columns and beams in workshop structures
- Air-conditioning and solar-powered shelf supports under windows
Widely used in building structures and engineering construction applications such as house beams, ship beams, industrial furnaces, and various industrial frameworks.
Our stainless steel angle bars and channel bars are applied across multiple industries and construction applications.
