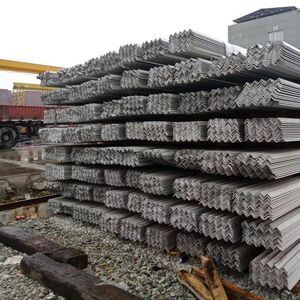

Hot Rolled Bright Surface Stainless Steel Angle Bar Equal Angle Bar 30*30-100*100
Product Details
| Shape | U Channel | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Bright | Angle Bar Size | 30*30*3 - 200*200*10mm * 6m Length |
| Channel Bar Size | 50*30*3 - 200*100*10mm * 6m Length | Grade | 201 304 310S 316L 321 2205 |
| Standard | ASTM GB DIN | Thickness Range | 3mm - 10mm |
| Weight Per Meter | 0.894kg - 15.0kg | Length | 6m |
| Material | Stainless Steel | Angle Bar Dimensions | 20×20mm - 100×100mm |
| Channel Bar Dimensions | 40×20mm - 200×100mm | Processing Service | Cutting |
| Packing | Waterproof Paper Or Wooden Pallets | ||
| Highlight | Hot Rolled Stainless Steel Angle Bar,Bright Surface Equal Angle Bar,30*30-100*100 Stainless Steel Channel Bar |
||
Product Description
Product Overview
High-quality ASTM 201, 202, 304, 316 stainless steel angle bars and equal angle bars in 60×60×6mm dimensions. Manufactured to exacting standards for superior performance in industrial applications.
Product Specifications
Key Specifications
- Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
- Grade: 201, 304, 310S, 316L, 321, 2205, etc.
- Standard: ASTM, GB, DIN
- Angle Bar Size: 30×30×3 - 200×200×10mm × 6m length
- Channel Bar Size: 50×30×3 - 200×100×10mm × 6m length
- Service: Cutting
- Packing: Waterproof paper surround or wooden pallets
- Brand: TSINGSHAN
Stainless Steel Angle Bar Dimensions & Weights
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
All weights shown in kg/m
Stainless Steel Channel Bar Dimensions & Weights
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
All weights shown in kg/m
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and South Korea.
Material Range
Our products cover 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L and other materials, including high-temperature resistant stainless steel series, duplex stainless steel series, super stainless steel series, and specialized alloys.
Processing Capabilities
Equipped with plasma cutting machines, coil material opening equipment, laser cutting machines, 8K mirror finishing, grinding wire drawing, film and titanium plating equipment. We offer material opening, strip cutting, plate cutting, oil mill wire drawing, complete coil oil film wire drawing, 8K mirror finishing, titanium plating, and other processing services.
Specialized services include thick plate zero cutting, circular cutting, square cutting, shaped cutting, casting parts, forging parts with thickness up to 150MM. Custom materials and specifications can be ordered directly from steel mills according to customer requirements.
Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including high-voltage power transmission towers, main beam frameworks in steel structure bridges, columns and booms of construction site tower cranes, workshop columns and beams, and air-conditioning and solar-powered shelf installations.
Widely applied in building structures and engineering construction such as: house beams, ship beams, industrial furnaces, and various structural applications across multiple industries including machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, and medical equipment.
