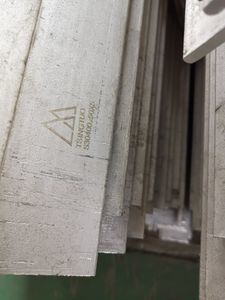

Hot Rolled 316L Stainless Steel Angle Bar - Corrosion Resistant 30x30-100x100 Equal Unequal
Product Details
| Model NO. | 316L | Shape | Angle |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification | 30*30-100*100 | Material | 304 316 310s 2205 |
| Standard | AISI ASTM JIS | Side Length | 20-200mm |
| Thickness | 3-24mm | Quality | 0.89-71.17kg/m |
| Transport Package | Wooden Box | HS Code | 7219340000 |
| Delivery Time | 5-10 Days | Payment Term | 30% Deposit By T/T,70% Before Shipment |
| Equal Angle | Yes | ||
| Highlight | Hot Rolled Stainless Steel Angle Bar,Corrosion Resistant SS Angle Bar,30x30-100x100 316L Angle Bar |
||
Product Description
Hot Rolled 6m 316L Stainless Steel Angle Bar
We offer premium 304, 316L, and 310S stainless steel angle bars in both equal and unequal configurations. These long strips of steel feature perpendicular legs forming angular shapes, designed for structural applications requiring corrosion resistance and durability.
Product Specifications
| Product Name | Stainless Steel Angle Bar |
| Material | 304, 316, 310S, 2205 |
| Price Terms | FOB, CIF, CFR, EXW |
| Standard | AISI, ASTM, JIS |
| Packing | Customized according to requirements |
| Certifications | ISO, SGS, BV |
| Delivery Time | 5-10 days (based on stock and order quantity) |
| Payment Terms | 30% deposit by T/T, 70% before shipment |
Applications
Stainless steel angle bars serve as essential structural components in various construction and engineering projects. They can be assembled into different bearing members according to structural requirements and used as connectors between structural elements.
- Building beams and structural frameworks
- Bridge construction and support systems
- Transmission tower structures
- Hoisting and transportation machinery
- Shipbuilding and marine applications
- Industrial furnace construction
- Reaction tower fabrication
- Container rack systems
- Cable trench supports
- Power distribution pipe installations
- Bus support installation
- Warehouse storage shelving
Available Sizes and Specifications
| Specification (side length × thickness) mm | Weight (kg/m) | Specification (side length × thickness) mm | Weight (kg/m) |
|---|---|---|---|
| 20×3 | 0.89 | 80×5 | 6.21 |
| 20×4 | 1.15 | 80×6 | 7.38 |
| 25×3 | 1.12 | 80×7 | 8.53 |
| 25×4 | 1.46 | 80×8 | 9.66 |
| 30×3 | 1.37 | 80×10 | 11.87 |
| 30×4 | 1.79 | 90×6 | 8.35 |
| 36×3 | 1.66 | 90×7 | 9.66 |
| 36×4 | 2.16 | 90×8 | 10.95 |
| 36×5 | 2.65 | 90×10 | 13.48 |
| 40×3 | 1.85 | 90×12 | 15.94 |
| 40×4 | 2.42 | 100×6 | 9.37 |
| 40×5 | 2.98 | 100×7 | 10.83 |
| 45×3 | 2.09 | 100×8 | 12.28 |
| 45×4 | 2.74 | 100×10 | 15.12 |
| 45×5 | 3.37 | 100×12 | 17.9 |
| 45×6 | 3.99 | 100×14 | 20.61 |
| 50×3 | 2.33 | 100×16 | 23.26 |
| 50×4 | 3.06 | 110×7 | 11.93 |
| 50×5 | 3.77 | 110×8 | 13.53 |
| 50×6 | 4.46 | 110×10 | 16.69 |
| 56×3 | 2.62 | 110×12 | 19.78 |
| 56×4 | 3.45 | 110×14 | 22.81 |
| 56×5 | 4.25 | 125×8 | 15.5 |
| 56×8 | 6.57 | 125×10 | 19.13 |
| 63×4 | 3.91 | 125×12 | 22.7 |
| 63×5 | 4.82 | 125×14 | 26.19 |
| 63×6 | 5.72 | 140×10 | 21.49 |
| 63×8 | 7.47 | 140×12 | 25.52 |
| 63×10 | 9.15 | 140×14 | 29.49 |
| 70×4 | 4.37 | 140×16 | 33.39 |
| 70×5 | 5.4 | 160×10 | 24.73 |
| 70×6 | 6.41 | 160×12 | 29.39 |
| 70×7 | 7.4 | 160×14 | 33.99 |
| 70×8 | 8.37 | 160×16 | 38.52 |
| 75×5 | 5.82 | 180×12 | 33.16 |
| 75×6 | 6.91 | 180×14 | 38.38 |
| 75×7 | 7.98 | 180×16 | 43.54 |
| 75×8 | 9.03 | 180×18 | 48.63 |
| 75×10 | 11.09 | 200×14 | 42.89 |
| 200×16 | 48.68 | ||
| 200×18 | 54.4 | ||
| 200×20 | 60.06 | ||
| 200×24 | 71.17 |
Product Gallery
Our Service Advantages
Superior Quality
We use exclusively first-class materials and advanced manufacturing equipment and techniques. Our stainless steel products maintain high-quality standards with meticulous attention to detail from production through packaging.
Competitive Pricing
We source materials directly through our professional subsidiary factory, enabling lower production costs and more competitive pricing compared to industry standards.
Comprehensive Customer Support
- 24-hour technical support via email
- 7-day return policy for unsatisfactory goods
- 3-month quality assurance guarantee
- 1-year volume discount program (more orders, more discount)
