316L Stainless Steel Angle Bar 40mm X 40mm X 4mm Hot Rolled SS Angle Bar for Structural Applications

  • 316L Stainless Steel Angle Bar 40mm X 40mm X 4mm Hot Rolled SS Angle Bar for Structural Applications
Minimum Order Quantity 30 kg
Price US $2.35-4.65 / kg
Product Details
Material 316L Shape Angle
Technique Hot Rolled Surface Treatment Bright
Specification Range 30*30-100*100 Side Length 40mm
Thickness 4mm Length 6 Mtr
Weight 20*3 0.89 Kg/m Weight 20*4 1.15 Kg/m
Weight 25*3 1.12 Kg/m Weight 25*4 1.46 Kg/m
Weight 30*3 1.37 Kg/m Weight 30*4 1.79 Kg/m
Weight 40*4 2.42 Kg/m
Highlight

316L Stainless Steel Angle Bar

,

40mm X 40mm X 4mm SS Angle Bar

,

Hot Rolled Angle Steel Bar
Leave a Message
Product Description
Stainless Steel Angle Bar Overview
High-quality 304, 316L, and 310S stainless steel angle bars available in both equal and unequal configurations. These structural components feature long strips of steel perpendicular to each other in angular form, providing exceptional strength and corrosion resistance.
Product Specifications
Product Name Stainless Steel Angle Bar
Material 304, 316, 310S, 2205
Price Terms FOB/CIF/CFR/EXW
Standard AISI ASTM JIS
Packing According to requirements
Certifications ISO/SGS/BV
Delivery Time 5-10 days (based on stock and order quantity)
Payment Terms 30% deposit by T/T, 70% before shipment
Applications
Stainless steel angle bars serve as essential structural components in various construction and engineering applications. They can be assembled into various bearing members according to structural requirements and used as joints between structural elements.
  • Building beams and structural frameworks
  • Bridge construction and support systems
  • Transmission towers and electrical infrastructure
  • Hoisting and transportation machinery
  • Shipbuilding and marine structures
  • Industrial furnaces and reaction towers
  • Container racks and storage systems
  • Cable trench supports and electrical conduits
  • Bus support installation and transportation infrastructure
  • Warehouse shelving and storage solutions
Size Specifications
Specification (side length × thickness) mm Quality (kg/m) Specification (side length × thickness) mm Quality (kg/m)
20×30.8980×56.21
20×41.1580×67.38
25×31.1280×78.53
25×41.4680×89.66
30×31.3780×1011.87
30×41.7990×68.35
36×31.6690×79.66
36×42.1690×810.95
36×52.6590×1013.48
40×31.8590×1215.94
40×42.42100×69.37
40×52.98100×710.83
45×32.09100×812.28
45×42.74100×1015.12
45×53.37100×1217.9
45×63.99100×1420.61
50×32.33100×1623.26
50×43.06110×711.93
50×53.77110×813.53
50×64.46110×1016.69
56×32.62110×1219.78
56×43.45110×1422.81
56×54.25125×815.5
56×86.57125×1019.13
63×43.91125×1222.7
63×54.82125×1426.19
63×65.72140×1021.49
63×87.47140×1225.52
63×109.15140×1429.49
70×44.37140×1633.39
70×55.4160×1024.73
70×66.41160×1229.39
70×77.4160×1433.99
70×88.37160×1638.52
75×55.82180×1233.16
75×66.91180×1438.38
75×77.98180×1643.54
75×89.03180×1848.63
75×1011.09200×1442.89
200×1648.68
200×1854.4
200×2060.06
200×2471.17
Product Images

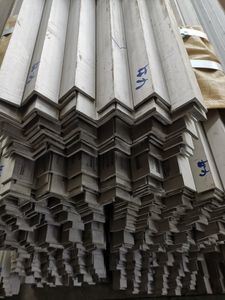

316L Stainless Steel Angle Bar 40mm X 40mm X 4mm Hot Rolled SS Angle Bar for Structural Applications 0 316L Stainless Steel Angle Bar 40mm X 40mm X 4mm Hot Rolled SS Angle Bar for Structural Applications 1 316L Stainless Steel Angle Bar 40mm X 40mm X 4mm Hot Rolled SS Angle Bar for Structural Applications 2 316L Stainless Steel Angle Bar 40mm X 40mm X 4mm Hot Rolled SS Angle Bar for Structural Applications 3 316L Stainless Steel Angle Bar 40mm X 40mm X 4mm Hot Rolled SS Angle Bar for Structural Applications 4 316L Stainless Steel Angle Bar 40mm X 40mm X 4mm Hot Rolled SS Angle Bar for Structural Applications 5
