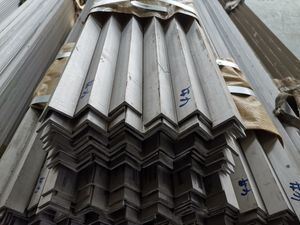

304 316L 310S 2205 904L Stainless Steel Angle Bar Hot Rolled in 30*30-100*100 Sizes
Product Details
| Material | 304 316L 310S 2205 904L | Shape | Angle |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification Range | 30*30-100*100 | Side Length | 20-200mm |
| Thickness | 3-24mm | Quality Range | 0.89-71.17kg/m |
| Equal Angle | Yes | Unequal Angle | Yes |
| HS Code | 7219340000 | Transport Package | Wooden Box |
| Standard | ASTM A276 | Chemical Composition | AISI Compliant |
| Size Options | Multiple | ||
| Highlight | 304 316L 310S 2205 904L Stainless Steel Angle Bar,Hot Rolled SS Angle Bar,30*30-100*100 Angle Steel Bar |
||
Product Description
Stainless Steel Angle Bars
High-quality stainless steel angle bars available in grades 304, 316L, 310S, 2205, and 904L, manufactured to ASTM A276 standards. Available in both equal and unequal configurations for diverse structural applications.
Product Specifications
| Product Name | Stainless Steel Angle Bar |
| Material Grades | 304, 316L, 310S, 2205, 904L |
| Price Terms | FOB, CIF, CFR, EXW |
| Standards | AISI, ASTM, JIS |
| Packing | Customized to requirements |
| Certifications | ISO, SGS, BV |
| Delivery Time | 5-10 days (based on stock and order quantity) |
| Payment Terms | 30% deposit by T/T, 70% before shipment |
Applications
Stainless steel angle bars serve as essential structural components in various construction and engineering applications:
- Building beams and structural frameworks
- Bridge construction and support systems
- Transmission tower structures
- Hoisting and transportation machinery
- Shipbuilding and marine structures
- Industrial furnace construction
- Reaction towers and pressure vessels
- Container racks and storage systems
- Cable trench supports and electrical installations
- Power distribution pipe supports
- Bus support installation frameworks
- Warehouse shelving and storage solutions
Size Specifications
| Specification (mm) | Weight (kg/m) | Specification (mm) | Weight (kg/m) |
|---|---|---|---|
| 20×3 | 0.89 | 80×5 | 6.21 |
| 20×4 | 1.15 | 80×6 | 7.38 |
| 25×3 | 1.12 | 80×7 | 8.53 |
| 25×4 | 1.46 | 80×8 | 9.66 |
| 30×3 | 1.37 | 80×10 | 11.87 |
| 30×4 | 1.79 | 90×6 | 8.35 |
| 36×3 | 1.66 | 90×7 | 9.66 |
| 36×4 | 2.16 | 90×8 | 10.95 |
| 36×5 | 2.65 | 90×10 | 13.48 |
| 40×3 | 1.85 | 90×12 | 15.94 |
| 40×4 | 2.42 | 100×6 | 9.37 |
| 40×5 | 2.98 | 100×7 | 10.83 |
| 45×3 | 2.09 | 100×8 | 12.28 |
| 45×4 | 2.74 | 100×10 | 15.12 |
| 45×5 | 3.37 | 100×12 | 17.90 |
| 45×6 | 3.99 | 100×14 | 20.61 |
| 50×3 | 2.33 | 100×16 | 23.26 |
| 50×4 | 3.06 | 110×7 | 11.93 |
| 50×5 | 3.77 | 110×8 | 13.53 |
| 50×6 | 4.46 | 110×10 | 16.69 |
| 56×3 | 2.62 | 110×12 | 19.78 |
| 56×4 | 3.45 | 110×14 | 22.81 |
| 56×5 | 4.25 | 125×8 | 15.50 |
| 56×8 | 6.57 | 125×10 | 19.13 |
| 63×4 | 3.91 | 125×12 | 22.70 |
| 63×5 | 4.82 | 125×14 | 26.19 |
| 63×6 | 5.72 | 140×10 | 21.49 |
| 63×8 | 7.47 | 140×12 | 25.52 |
| 63×10 | 9.15 | 140×14 | 29.49 |
| 70×4 | 4.37 | 140×16 | 33.39 |
| 70×5 | 5.40 | 160×10 | 24.73 |
| 70×6 | 6.41 | 160×12 | 29.39 |
| 70×7 | 7.40 | 160×14 | 33.99 |
| 70×8 | 8.37 | 160×16 | 38.52 |
| 75×5 | 5.82 | 180×12 | 33.16 |
| 75×6 | 6.91 | 180×14 | 38.38 |
| 75×7 | 7.98 | 180×16 | 43.54 |
| 75×8 | 9.03 | 180×18 | 48.63 |
| 75×10 | 11.09 | 200×14 | 42.89 |
| 200×16 | 48.68 | ||
| 200×18 | 54.40 | ||
| 200×20 | 60.06 | ||
| 200×24 | 71.17 |
Product Images
Our Services
Superior Quality: All materials are first-class grade with advanced equipment and manufacturing processes. Strict quality control from production to packaging ensures consistent high standards.
Competitive Prices: Direct material sourcing through our professional subsidiary factory reduces costs, enabling highly competitive pricing without compromising quality.
Comprehensive Customer Support:
- 24-hour technical support via email
- 7-day return policy for unsatisfactory goods
- 3-month quality assurance guarantee
- 1-year volume discount program for repeat orders
