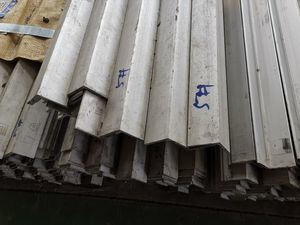

Hot Rolled 304 Stainless Steel Angle Bar in 30*30-100*100 Sizes for Structural Applications
Product Details
| Model NO. | 304 | Shape | Angle |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification | 30*30-100*100 | Material | 304 316 310s 2205 |
| Standard | AISI ASTM JIS | Side Length | 20-200mm |
| Thickness | 3-24mm | Quality | 0.89-71.17kg/m |
| Equal Angle | Yes | Unequal Angle | Yes |
| Chemical Composition | 304 316L 310S | Transport Package | Wooden Box |
| HS Code | 7219340000 | ||
| Highlight | Hot Rolled Stainless Steel Angle Bar,304 Stainless Steel Angle Bar,30*30-100*100 Angle Steel Bar |
||
Product Description
ASTM A276 Hot Rolled Angle Bar 304 Stainless Steel
Our stainless steel angle bars are available in both equal and unequal configurations, manufactured from premium 304, 316L, and 310S stainless steel materials. These long strips of steel feature perpendicular legs forming angular shapes suitable for various structural applications.
Product Specifications
| Product Name | Stainless Steel Angle Bar |
| Material | 304, 316, 310S, 2205 |
| Price Terms | FOB, CIF, CFR, EXW |
| Standard | AISI, ASTM, JIS |
| Packing | According to Requirements |
| Certifications | ISO, SGS, BV |
| Delivery Time | 5-10 days (based on stock and order quantity) |
| Payment Terms | 30% deposit by T/T, 70% before shipment |
Applications
Stainless steel angle bars serve as essential structural components in various construction and engineering projects. They can be assembled into bearing members according to structural requirements and function as connectors between structural elements.
- Building beams and structural frameworks
- Bridge construction and support systems
- Transmission tower structures
- Hoisting and transportation machinery
- Shipbuilding and marine applications
- Industrial furnace construction
- Reaction tower supports
- Container rack systems
- Cable trench supports
- Power distribution pipe installations
- Bus support frameworks
- Warehouse storage shelving
Available Sizes and Specifications
| Specification (mm) | Weight (kg/m) | Specification (mm) | Weight (kg/m) |
|---|---|---|---|
| 20×3 | 0.89 | 80×5 | 6.21 |
| 20×4 | 1.15 | 80×6 | 7.38 |
| 25×3 | 1.12 | 80×7 | 8.53 |
| 25×4 | 1.46 | 80×8 | 9.66 |
| 30×3 | 1.37 | 80×10 | 11.87 |
| 30×4 | 1.79 | 90×6 | 8.35 |
| 36×3 | 1.66 | 90×7 | 9.66 |
| 36×4 | 2.16 | 90×8 | 10.95 |
| 36×5 | 2.65 | 90×10 | 13.48 |
| 40×3 | 1.85 | 90×12 | 15.94 |
| 40×4 | 2.42 | 100×6 | 9.37 |
| 40×5 | 2.98 | 100×7 | 10.83 |
| 45×3 | 2.09 | 100×8 | 12.28 |
| 45×4 | 2.74 | 100×10 | 15.12 |
| 45×5 | 3.37 | 100×12 | 17.90 |
| 45×6 | 3.99 | 100×14 | 20.61 |
| 50×3 | 2.33 | 100×16 | 23.26 |
| 50×4 | 3.06 | 110×7 | 11.93 |
| 50×5 | 3.77 | 110×8 | 13.53 |
| 50×6 | 4.46 | 110×10 | 16.69 |
| 56×3 | 2.62 | 110×12 | 19.78 |
| 56×4 | 3.45 | 110×14 | 22.81 |
| 56×5 | 4.25 | 125×8 | 15.50 |
| 56×8 | 6.57 | 125×10 | 19.13 |
| 63×4 | 3.91 | 125×12 | 22.70 |
| 63×5 | 4.82 | 125×14 | 26.19 |
| 63×6 | 5.72 | 140×10 | 21.49 |
| 63×8 | 7.47 | 140×12 | 25.52 |
| 63×10 | 9.15 | 140×14 | 29.49 |
| 70×4 | 4.37 | 140×16 | 33.39 |
| 70×5 | 5.40 | 160×10 | 24.73 |
| 70×6 | 6.41 | 160×12 | 29.39 |
| 70×7 | 7.40 | 160×14 | 33.99 |
| 70×8 | 8.37 | 160×16 | 38.52 |
| 75×5 | 5.82 | 180×12 | 33.16 |
| 75×6 | 6.91 | 180×14 | 38.38 |
| 75×7 | 7.98 | 180×16 | 43.54 |
| 75×8 | 9.03 | 180×18 | 48.63 |
| 75×10 | 11.09 | 200×14 | 42.89 |
| 200×16 | 48.68 | ||
| 200×18 | 54.40 | ||
| 200×20 | 60.06 | ||
| 200×24 | 71.17 |
Product Gallery
Our Service Advantages
Superior Quality
All materials used are first-class quality with advanced equipment and manufacturing processes. We maintain strict quality control from production through packaging to ensure consistent excellence.
Competitive Pricing
Our professional subsidiary factory sources materials directly, resulting in lower production costs and more competitive pricing for our customers.
Comprehensive Customer Support
- 24-hour technical support via email
- 7-day return policy for unsatisfactory goods
- 3-month quality assurance guarantee
- 1-year volume discount program
