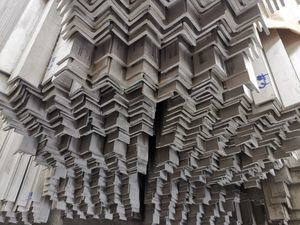

316L Stainless Steel Angle Bar Hot Rolled Equal Angle Bar 30*30-100*100 for Structural Applications
Product Details
| Model NO. | 316L | Shape | Angle |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification | 30*30-100*100 | Material | 304 316 310s 2205 |
| Standard | AISI ASTM JIS | Side Length | 20-200mm |
| Thickness | 3-24mm | Quality | 0.89-71.17kg/m |
| Transport Package | Wooden Box | HS Code | 7219340000 |
| Delivery Time | 5-10 Days | Payment Term | 30% Deposit By T/T,70% Before Shipment |
| Size Range | 20*3 To 200*24mm | ||
| Highlight | 316L Stainless Steel Angle Bar,Hot Rolled Angle Steel Bar,30*30-100*100 Equal Angle Bar |
||
Product Description
Stainless Steel Angle Bar
High-quality 304, 316L, and 310S stainless steel angle bars available in equal and unequal configurations. These long strips of steel form perpendicular angles ideal for various structural applications.
Product Specifications
| Product Name | Stainless Steel Angle Bar |
| Material | 304, 316, 310S, 2205 |
| Price Terms | FOB, CIF, CFR, EXW |
| Standard | AISI, ASTM, JIS |
| Packing | According to requirements |
| Certifications | ISO, SGS, BV |
| Delivery Time | 5-10 days (based on stock and order quantity) |
| Payment Terms | 30% deposit by T/T, 70% before shipment |
Applications
Stainless steel angle bars serve as essential structural components in various construction and engineering projects. They can be configured into different bearing members and used as joints between structural elements.
- Building beams and structural frameworks
- Bridge construction and support systems
- Transmission towers and electrical infrastructure
- Hoisting and transportation machinery
- Shipbuilding and marine structures
- Industrial furnaces and reaction towers
- Container racks and storage systems
- Cable trench supports and electrical installations
- Power distribution pipes and bus support
- Warehouse shelving and storage solutions
Size Specifications
| Specification (side length × thickness) mm | Quality (kg/m) | Specification (side length × thickness) mm | Quality (kg/m) |
|---|---|---|---|
| 20×3 | 0.89 | 80×5 | 6.21 |
| 20×4 | 1.15 | 80×6 | 7.38 |
| 25×3 | 1.12 | 80×7 | 8.53 |
| 25×4 | 1.46 | 80×8 | 9.66 |
| 30×3 | 1.37 | 80×10 | 11.87 |
| 30×4 | 1.79 | 90×6 | 8.35 |
| 36×3 | 1.66 | 90×7 | 9.66 |
| 36×4 | 2.16 | 90×8 | 10.95 |
| 36×5 | 2.65 | 90×10 | 13.48 |
| 40×3 | 1.85 | 90×12 | 15.94 |
| 40×4 | 2.42 | 100×6 | 9.37 |
| 40×5 | 2.98 | 100×7 | 10.83 |
| 45×3 | 2.09 | 100×8 | 12.28 |
| 45×4 | 2.74 | 100×10 | 15.12 |
| 45×5 | 3.37 | 100×12 | 17.9 |
| 45×6 | 3.99 | 100×14 | 20.61 |
| 50×3 | 2.33 | 100×16 | 23.26 |
| 50×4 | 3.06 | 110×7 | 11.93 |
| 50×5 | 3.77 | 110×8 | 13.53 |
| 50×6 | 4.46 | 110×10 | 16.69 |
| 56×3 | 2.62 | 110×12 | 19.78 |
| 56×4 | 3.45 | 110×14 | 22.81 |
| 56×5 | 4.25 | 125×8 | 15.5 |
| 56×8 | 6.57 | 125×10 | 19.13 |
| 63×4 | 3.91 | 125×12 | 22.7 |
| 63×5 | 4.82 | 125×14 | 26.19 |
| 63×6 | 5.72 | 140×10 | 21.49 |
| 63×8 | 7.47 | 140×12 | 25.52 |
| 63×10 | 9.15 | 140×14 | 29.49 |
| 70×4 | 4.37 | 140×16 | 33.39 |
| 70×5 | 5.4 | 160×10 | 24.73 |
| 70×6 | 6.41 | 160×12 | 29.39 |
| 70×7 | 7.4 | 160×14 | 33.99 |
| 70×8 | 8.37 | 160×16 | 38.52 |
| 75×5 | 5.82 | 180×12 | 33.16 |
| 75×6 | 6.91 | 180×14 | 38.38 |
| 75×7 | 7.98 | 180×16 | 43.54 |
| 75×8 | 9.03 | 180×18 | 48.63 |
| 75×10 | 11.09 | 200×14 | 42.89 |
| 200×16 | 48.68 | ||
| 200×18 | 54.4 | ||
| 200×20 | 60.06 | ||
| 200×24 | 71.17 |
Product Images
Our Services
Superior Quality: All materials are first-class quality with advanced equipment and manufacturing processes. We maintain strict quality control from production to packaging.
Competitive Prices: We source materials directly through our professional subsidiary factory, resulting in lower costs and more competitive pricing.
Excellent Customer Service:
- 24-hour technical support via email
- 7-day return policy for unsatisfactory goods
- 3-month quality assurance
- 1-year volume discounts for repeat orders
