Hot Rolled Stainless Steel Angle Bar SS304 316L 310S Unequal Angle Bar for Structural Applications
Product Details
| Model NO. | SS304 316L 310S | Shape | Angle |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification | 30*30-100*100 | Material | 304 316 310s 2205 |
| Standard | AISI ASTM JIS | Side Length | 20-200mm |
| Thickness | 3-24mm | Quality | 0.89-71.17kg/m |
| Equal Angle | Yes | Unequal Angle | Yes |
| Transport Package | Wooden Box | HS Code | 7219340000 |
| Delivery Time | 5-10 Days | ||
| Highlight | Hot Rolled Stainless Steel Angle Bar,SS304 316L 310S Angle Steel Bar,Unequal Angle SS Angle Bar |
||
Product Description
Hot Rolled Angle Bar SS304 316L 310S Unequal Angle Bar
Our stainless steel angle bars are available in both equal and unequal configurations, manufactured from premium 304, 316L, and 310S stainless steel materials. These long strips of steel form perpendicular angles, providing exceptional structural integrity for various industrial applications.
Product Specifications
| Product Name | Stainless Steel Angle Bar |
| Material | 304, 316, 310S, 2205 |
| Price Terms | FOB, CIF, CFR, EXW |
| Standard | AISI, ASTM, JIS |
| Packing | According to Requirements |
| Certifications | ISO, SGS, BV |
| Delivery Time | 5-10 days (Based on stock and order quantity) |
| Payment Terms | 30% deposit by T/T, 70% before shipment |
Applications
Stainless steel angle bars serve as essential structural components in various construction and engineering projects. They can be assembled into different bearing members according to structural requirements and function as connectors between structural elements.
- Building beams and structural frameworks
- Bridge construction and support systems
- Transmission tower structures
- Hoisting and transportation machinery
- Shipbuilding and marine applications
- Industrial furnace construction
- Reaction tower frameworks
- Container rack systems
- Cable trench supports
- Power distribution pipe installations
- Bus support installation systems
- Warehouse shelving and storage solutions
Available Sizes and Specifications
| Specification (side length × thickness) mm | Quality (kg/m) | Specification (side length × thickness) mm | Quality (kg/m) |
|---|---|---|---|
| 20×3 | 0.89 | 80×5 | 6.21 |
| 20×4 | 1.15 | 80×6 | 7.38 |
| 25×3 | 1.12 | 80×7 | 8.53 |
| 25×4 | 1.46 | 80×8 | 9.66 |
| 30×3 | 1.37 | 80×10 | 11.87 |
| 30×4 | 1.79 | 90×6 | 8.35 |
| 36×3 | 1.66 | 90×7 | 9.66 |
| 36×4 | 2.16 | 90×8 | 10.95 |
| 36×5 | 2.65 | 90×10 | 13.48 |
| 40×3 | 1.85 | 90×12 | 15.94 |
| 40×4 | 2.42 | 100×6 | 9.37 |
| 40×5 | 2.98 | 100×7 | 10.83 |
| 45×3 | 2.09 | 100×8 | 12.28 |
| 45×4 | 2.74 | 100×10 | 15.12 |
| 45×5 | 3.37 | 100×12 | 17.9 |
| 45×6 | 3.99 | 100×14 | 20.61 |
| 50×3 | 2.33 | 100×16 | 23.26 |
| 50×4 | 3.06 | 110×7 | 11.93 |
| 50×5 | 3.77 | 110×8 | 13.53 |
| 50×6 | 4.46 | 110×10 | 16.69 |
| 56×3 | 2.62 | 110×12 | 19.78 |
| 56×4 | 3.45 | 110×14 | 22.81 |
| 56×5 | 4.25 | 125×8 | 15.5 |
| 56×8 | 6.57 | 125×10 | 19.13 |
| 63×4 | 3.91 | 125×12 | 22.7 |
| 63×5 | 4.82 | 125×14 | 26.19 |
| 63×6 | 5.72 | 140×10 | 21.49 |
| 63×8 | 7.47 | 140×12 | 25.52 |
| 63×10 | 9.15 | 140×14 | 29.49 |
| 70×4 | 4.37 | 140×16 | 33.39 |
| 70×5 | 5.4 | 160×10 | 24.73 |
| 70×6 | 6.41 | 160×12 | 29.39 |
| 70×7 | 7.4 | 160×14 | 33.99 |
| 70×8 | 8.37 | 160×16 | 38.52 |
| 75×5 | 5.82 | 180×12 | 33.16 |
| 75×6 | 6.91 | 180×14 | 38.38 |
| 75×7 | 7.98 | 180×16 | 43.54 |
| 75×8 | 9.03 | 180×18 | 48.63 |
| 75×10 | 11.09 | 200×14 | 42.89 |
| 200×16 | 48.68 | ||
| 200×18 | 54.4 | ||
| 200×20 | 60.06 | ||
| 200×24 | 71.17 |

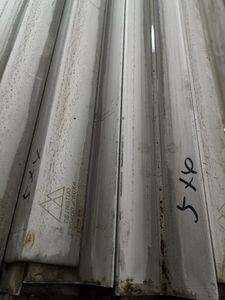

Product Images
