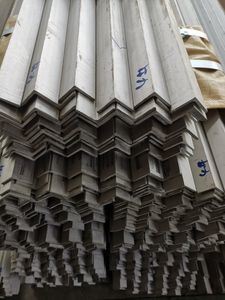

304 316L 310S Stainless Steel Angle Bar Hot Rolled Equal and Unequal Angle Steel Bar
Product Details
| Model NO. | 304 316l | Shape | Angle |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification | 30*30-100*100 | Material | 304 316 310s 2205 |
| Standard | AISI ASTM JIS | Side Length | 20-200mm |
| Thickness | 3-24mm | Quality | 0.89-71.17kg/m |
| Equal Angle | Yes | Unequal Angle | Yes |
| Transport Package | Wooden Box | HS Code | 7219340000 |
| Delivery Time | 5-10 Days | ||
| Highlight | 304 316L 310S Stainless Steel Angle Bar,Hot Rolled Stainless Steel Angle,Equal/Unequal Angle Steel Bar |
||
Product Description
304 316L 310S Stainless Steel Angle Bar - Equal & Unequal
High-quality stainless steel angle bars available in both equal and unequal configurations. These long strips of steel feature perpendicular legs forming right angles, manufactured from premium 304, 316L, and 310S stainless steel materials.
Product Specifications
Product Name
Stainless Steel Angle Bar
Materials
304, 316L, 310S, 2205
Standards
AISI, ASTM, JIS
Price Terms
FOB, CIF, CFR, EXW
Certifications
ISO, SGS, BV
Delivery Time
5-10 days (based on stock and order quantity)
Payment Terms
30% deposit by T/T, 70% before shipment
Packing
Customized according to requirements
Applications
Stainless steel angle bars serve as essential structural components in various construction and engineering applications:
- Building beams and structural frameworks
- Bridge construction and support systems
- Transmission towers and electrical infrastructure
- Hoisting and transportation machinery
- Shipbuilding and marine structures
- Industrial furnaces and reaction towers
- Container racks and storage systems
- Cable trench supports and electrical installations
- Power distribution pipes and bus support
- Warehouse shelving and storage solutions
Available Sizes & Specifications
| Specification (mm) | Weight (kg/m) | Specification (mm) | Weight (kg/m) |
|---|---|---|---|
| 20×3 | 0.89 | 80×5 | 6.21 |
| 20×4 | 1.15 | 80×6 | 7.38 |
| 25×3 | 1.12 | 80×7 | 8.53 |
| 25×4 | 1.46 | 80×8 | 9.66 |
| 30×3 | 1.37 | 80×10 | 11.87 |
| 30×4 | 1.79 | 90×6 | 8.35 |
| 36×3 | 1.66 | 90×7 | 9.66 |
| 36×4 | 2.16 | 90×8 | 10.95 |
| 36×5 | 2.65 | 90×10 | 13.48 |
| 40×3 | 1.85 | 90×12 | 15.94 |
| 40×4 | 2.42 | 100×6 | 9.37 |
| 40×5 | 2.98 | 100×7 | 10.83 |
| 45×3 | 2.09 | 100×8 | 12.28 |
| 45×4 | 2.74 | 100×10 | 15.12 |
| 45×5 | 3.37 | 100×12 | 17.90 |
| 45×6 | 3.99 | 100×14 | 20.61 |
| 50×3 | 2.33 | 100×16 | 23.26 |
| 50×4 | 3.06 | 110×7 | 11.93 |
| 50×5 | 3.77 | 110×8 | 13.53 |
| 50×6 | 4.46 | 110×10 | 16.69 |
| 56×3 | 2.62 | 110×12 | 19.78 |
| 56×4 | 3.45 | 110×14 | 22.81 |
| 56×5 | 4.25 | 125×8 | 15.50 |
| 56×8 | 6.57 | 125×10 | 19.13 |
| 63×4 | 3.91 | 125×12 | 22.70 |
| 63×5 | 4.82 | 125×14 | 26.19 |
| 63×6 | 5.72 | 140×10 | 21.49 |
| 63×8 | 7.47 | 140×12 | 25.52 |
| 63×10 | 9.15 | 140×14 | 29.49 |
| 70×4 | 4.37 | 140×16 | 33.39 |
| 70×5 | 5.40 | 160×10 | 24.73 |
| 70×6 | 6.41 | 160×12 | 29.39 |
| 70×7 | 7.40 | 160×14 | 33.99 |
| 70×8 | 8.37 | 160×16 | 38.52 |
| 75×5 | 5.82 | 180×12 | 33.16 |
| 75×6 | 6.91 | 180×14 | 38.38 |
| 75×7 | 7.98 | 180×16 | 43.54 |
| 75×8 | 9.03 | 180×18 | 48.63 |
| 75×10 | 11.09 | 200×14 | 42.89 |
| 200×16 | 48.68 | ||
| 200×18 | 54.40 | ||
| 200×20 | 60.06 | ||
| 200×24 | 71.17 |
