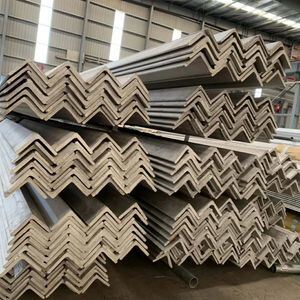

Hot Rolled 304 Stainless Steel Angle Bar 30x30x3 Equal Angle Bar for Industrial Applications
Product Details
| Model Number | 201 321 304 316L 310S 2205 2507 904L | Shape | Angle |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification Range | 30*30-100*100 | Chemical Composition 304 | C:≤0.08, Si:≤1.0, Mn:≤2.0, Cr:18.0~20.0, Ni:8.0~11.0, P:≤0.045, S:0.020~0.030 |
| Chemical Composition 304L | C:≤0.03, Si:≤1.0, Mn:≤2.0, Cr:18.0~20.0, Ni:8.0~11.0, P:≤0.045, S:0.020~0.030 | Temperature Resistance | 1000-1200 Degree |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm | Length | 6m, 5.8m, 12m Or As Required |
| Thickness Range | 3mm To 10mm | Weight 20*20 | 0.894kg (3mm), 1.13kg (4mm), 1.38kg (5mm) |
| Weight 50*50 | 2.36kg (3mm), 3.07kg (4mm), 4.58kg (5mm), 4.46kg (6mm), 5.13kg (7mm), 5.76kg (8mm), 6.42kg (9mm), 7.06kg (10mm) | Weight 70*70 | 5.82kg (5mm), 6.42kg (6mm), 7.39kg (7mm), 8.34kg (8mm), 9.31kg (9mm), 10.3kg (10mm) |
| Standards | ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, GB/T 1220 | ||
| Highlight | Hot Rolled Stainless Steel Angle Bar,304 Stainless Steel Angle Bar,30x30x3 Equal Angle Bar |
||
Product Description
Hot Rolled Stainless Steel Angle Bars
Premium quality hot rolled stainless steel angle bars available in grades 201, 321, 304, 316L, 310S, 2205, 2507, and 904L. Equal angle bars manufactured to meet international standards.
Product Specifications
Chemical Composition
| Grade | C | Si | Mn | Cr | Ni | P | S |
|---|---|---|---|---|---|---|---|
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | 18.0~20.0 | 8.0~11.0 | ≤0.045 | 0.020~0.030 |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | 18.0~20.0 | 8.0~11.0 | ≤0.045 | 0.020~0.030 |
Grade 304 Stainless Steel
304 stainless steel is a universal stainless steel material with superior anti-rust performance compared to 200 series stainless steel. It offers excellent high-temperature resistance up to 1000-1200°C and provides outstanding corrosion resistance with good intergranular corrosion resistance.
In laboratory testing, 304 demonstrates strong corrosion resistance in boiling nitrate solvents with concentrations below 65%. It also exhibits excellent resistance to alkali solutions and most organic and inorganic acids.
This widely used steel grade offers excellent corrosion resistance, heat resistance, low-temperature strength, and superior mechanical properties. It can be pressed, bent, and thermally processed without heat treatment hardening (non-magnetic, operating temperature range: -196°C to 800°C).
Technical Specifications
| Standard | ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, GB/T 1220 |
|---|---|
| Related Material | 304, 304L, 309S, 310S, 316, 316L, 316Ti, 317, 317L, 321, 347H, 201, 202, 410, 420, 430, etc. |
| Type | Round, square, hexagonal, flat, angle |
| Surface | Pickled, Black, Bright, Polishing, Blasting, etc. |
| Length | 6m, 5.8m, 12m or as required |
| Price Term | EX-Work, FOB, CFR, CIF, CNF |
Available Specifications
Round bar: Diameter: 3mm~800mm
Angle bar: Size: 3mm*20mm*20mm~12mm*100mm*100mm
Square bar: Size: 4mm*4mm~100mm*100mm
Flat bar: Thickness: 2mm~100mm, Width: 10mm~500mm
Hexagonal: Size: 2mm~100mm
Angle bar: Size: 3mm*20mm*20mm~12mm*100mm*100mm
Square bar: Size: 4mm*4mm~100mm*100mm
Flat bar: Thickness: 2mm~100mm, Width: 10mm~500mm
Hexagonal: Size: 2mm~100mm
Stainless Steel Angle Theoretical Weight Table
| Specifications (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.97 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 3.40 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.79 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 4.58 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 5.03 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.42 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.82 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | |||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 |
Applications
- Food processing equipment, particularly in beer brewing, milk processing & wine making
- Kitchen benches, sinks, troughs, equipment and appliances
- Architectural panelling, railings & trim
- Chemical containers, including for transport
- Heat Exchangers
- Woven or welded screens for mining, quarrying & water filtration
- Threaded fasteners
- Springs
