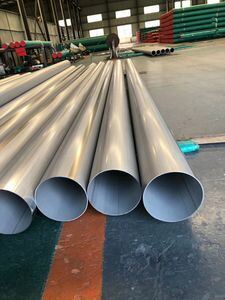

Grade 310S Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface
Product Details
| Model NO. | 310S | Shape | Round |
|---|---|---|---|
| Technique | Cold-Drawing | Surface Treatment | Polished |
| Specification | OD 6-630mm | Production Capacity | 500000kgs |
| Chromium Content | 24-26% | Nickel Content | 19-22% |
| Manganese Content | 2.00 Max% | Silicon Content | 1 Max% |
| Carbon Content | 0.080 Max% | Molybdenum Content | 0.75 Max% |
| Phosphorus Content | 0.040 Max% | Sulfur Content | 0.030 Max% |
| Copper Content | 0.75 Max% | ||
| Highlight | Grade 310S Stainless Steel Pipe,Cold-Drawing Technique Welded Steel Tube,Polished Surface SS Welded Pipe |
||
Product Description
SA312/312M TP310/310S Stainless Steel Pipes and Tubes
Type 310 stainless steel features the highest chromium-nickel content among all grades with 25% chromium and 20% nickel. This alloy is renowned for its exceptional scaling and corrosion resistance, offering superior high-temperature physical properties. At extreme temperatures, its creep strength and resistance to brittling exceed all other austenitic grades. In the annealed state, it remains non-magnetic. Type 310 is a non-heat treatable alloy manufactured through the electric-furnace process, meeting the rigorous standards of the aircraft industry. Type 310S represents a low carbon version of Type 310, specifically designed for high-temperature applications.
Product Specifications
Product Standard: SA312/312M, SA213/213M, A511/511M
Main Steel Grades: 310/310S
Key Benefits
- Outstanding corrosion resistance
- Excellent aqueous corrosion resistance
- Resistant to thermal fatigue and cyclic heating
- Superior performance compared to Type 304 and 309 in most environments
- Maintains strength in temperatures up to 2100°F
Chemical Composition & Mechanical Properties
| Weight% | Cr | Ni | Mn | Si | C | Mo | P | S | Cu |
|---|---|---|---|---|---|---|---|---|---|
| Alloy 310S | 24-26 | 19-22 | 2.00 max | 1 max | 0.080 max | 0.75 max | 0.040 max | 0.030 max | 0.75 max |
Applications
- Industrial furnaces
- Oil burners
- Heat exchangers
- Welding filler wire and electrodes
- Cryogenic equipment
- Kilns
- Food processing equipment
Quality Assurance
Marking: As required by customer specifications
Inspection and Testing: Comprehensive quality control including chemical composition analysis, mechanical properties testing (tensile, yield, elongation), process properties evaluation (flatting, flaring, bending, hardness, impact), dimensional verification, non-destructive inspection, and hydrostatic testing.
Delivery Status: Available in annealed, normalized, normalized + tempered conditions
Surface Treatment: Options include oil impregnation, painting, passivation, phosphating, shot blasting
Packing: Export-grade packaging, wooden boxes, or customized packaging as required
