DIN 1.4539 SUS904L Precision Ground Hot Rolled Stainless Steel Plate with 2B Surface
Product Details
| Thickness | 0.6 - 30.0mm | Width | 1000mm 1219mm 1500mm |
|---|---|---|---|
| Length | 2000mm 2438mm 3000mm 6000mm | Standard Size | 1000*2000mm 1219*2438mm 1500*3000mm 1500*6000mm |
| Surface | 2B NO.1 | Carbon Content | 0.02 |
| Manganese Content | 2.00 | Silicon Content | 1.0 |
| Phosphorus Content | 0.045 | Sulfur Content | 0.035 |
| Chromium Content | 19.0-23.0 | Molybdenum Content | 4.0-5.0 |
| Nickel Content | 23.0-28.0 | Copper Content | 1.0 - 2.0 |
| Technique | Hot Rolled | ||
| Highlight | Precision Ground Stainless Steel Plate,2B Surface Stainless Steel Plate,Hot Rolled 904L Stainless Steel Plate |
||
Product Description
DIN 1.4539 SUS904L Precision Ground Stainless Steel Plate
High-quality Inox 904L stainless steel plates with 2B surface finish, manufactured to exacting standards for industrial applications requiring superior corrosion resistance.
Product Specifications
| Products | 904L stainless steel plate |
|---|---|
| Thickness | 0.6 - 30.0mm |
| Width | 1000mm, 1219mm, 1500mm or custom cutting available |
| Length | 2000mm, 2438mm, 3000mm, 6000mm or custom lengths |
| Standard | ASTM A240 / EN 10088-2 / JIS G4305 |
| Standard Sizes | 1000×2000mm, 1219×2438mm, 1500×3000mm, 1500×6000mm |
| Surface | 2B, NO.1 |
| Brand | TISCO, BAOSTEEL, POSCO, JISCO |
| Other Grades Available | 201, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 410, 420, 430, 444, 2205, 2507, 254SMO, 253MA, etc. |
| Services | Laser Cutting, Bending |
About 904L Stainless Steel
Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel contains added copper to improve resistance to strong reducing acids such as sulphuric acid. The material offers excellent resistance to stress corrosion cracking and crevice corrosion, is non-magnetic, and provides superior formability, toughness, and weldability.
While containing high amounts of expensive ingredients like molybdenum and nickel, 904L provides excellent resistance to warm seawater and chloride attack. Its high nickel content contributes to exceptional stress corrosion cracking resistance, while copper addition enhances resistance to sulphuric acid and other reducing agents.
Key Features
- Non-magnetic properties
- Superior corrosion resistance compared to Type 316L and 317L
- Excellent resistance to sulphuric, phosphoric, and acetic acids
- High resistance to crevice and stress corrosion cracking
- Excellent formability and weldability
Chemical Composition
| C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|
| 0.02 | 2.00 | 1.0 | 0.045 | 0.035 | 19.0-23.0 | 4.0-5.0 | 23.0-28.0 | 1.0-2.0 |
Typical Applications
- Cooling equipment for seawater
- Chemical processing of sulphuric, phosphoric, and acetic acids
- Heat exchangers and condenser tubes
- Gas washing systems
- Control and instrumentation
- Oil and gas industry equipment
- Pharmaceutical production
- Wiring in electrostatic precipitators
Available Stock Sizes
| Number | Thickness | Size |
|---|---|---|
| 1 | 2.0mm | 1219×2438mm |
| 2 | 2.5mm | 1219×2438mm |
| 3 | 3.0mm | 1219×2438mm, 1500×6000mm |
| 4 | 4.0mm | 1500×6000mm |
| 5 | 5.0mm | 1500×6000mm |
| 6 | 6.0mm | 1500×6000mm |
| 7 | 8.0mm | 1500×6000mm, 1800/2000mm width |
| 8 | 10.0mm | 1500×6000mm, 1800/2000mm width |
| 9 | 12.0mm | 1500×6000mm, 1800/2000mm width |
| 10 | 14.0mm | 1500×6000mm, 1800/2000mm width |
| 11 | 16.0mm | 1500×6000mm, 1800/2000mm width |
| 12 | 18.0mm | 1500×6000mm |
| 13 | 20.0mm | 1500×6000mm |
| 14 | 22.0mm | 1500×6000mm |
| 15 | 24.0mm | 1500×6000mm |
| 16 | 26.0mm | 1500×6000mm |
| 17 | 28.0mm | 1500×6000mm |
| 18 | 30.0mm | 1500×6000mm |
Processing Services
| Service | Thickness Range | Platform Size |
|---|---|---|
| Laser Cutting | 0.4 - 30.0mm | 2000×8000mm |
| Plasma Cutting | 10 - 80.0mm | 2000×10000mm |
| Bending | within 30mm | 2m, 6m, 10m length |
| Surface Process | within 12mm | HL, 8K, PVC Cover |
Our 6000 square meter stainless steel processing center provides comprehensive services including laser cutting, water cutting, hot rolling, punching, embossing, large shear bending, and straightening operations to deliver high-quality, efficient material processing and distribution.
Company Overview
We specialize in production and sales of super alloys, nickel base alloys, corrosion resistant alloys, precision alloys, cobalt-based alloys, and special alloy steels including super austenitic stainless steel and duplex stainless steel. Our product range includes round steel, forgings, steel pipes, steel plates, precision steel belts, flanges, pipe fittings, and fasteners.
All materials are produced and tested according to ASTM/ASME, GB, JIS and other international standards. We maintain extensive inventory of nickel base alloys, high temperature alloys, and imported steel plates in various specifications, supported by imported welding wires and rods for timely delivery in desulfurization, denitration, petroleum, and petrochemical projects.
Our manufacturing facilities include vacuum induction furnaces, medium frequency induction furnaces, heat treatment furnaces, electroslag remelting furnaces, forging equipment, and rolling mills. Quality assurance is ensured through direct reading spectrometers, chemical analysis laboratories, mechanical testing equipment, metallographic laboratories, and ultrasonic non-destructive testing.

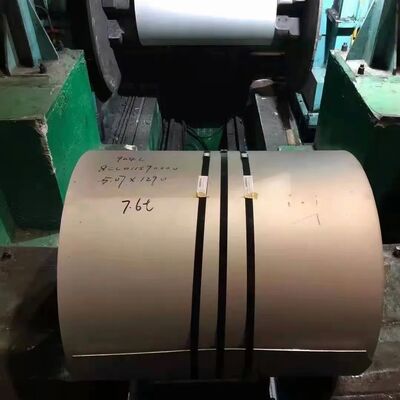

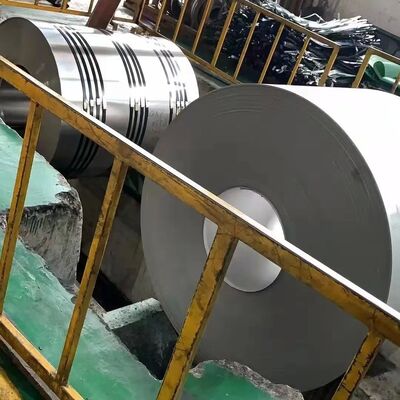

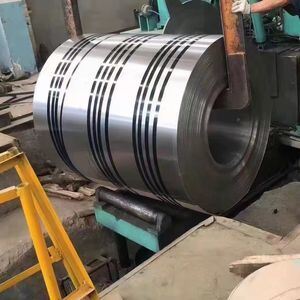

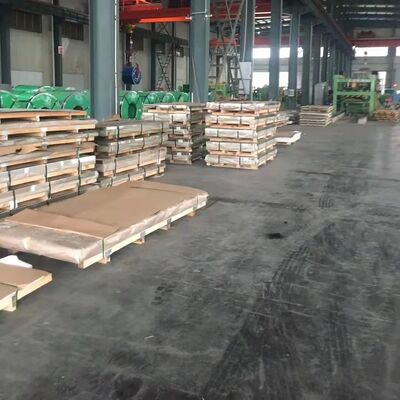

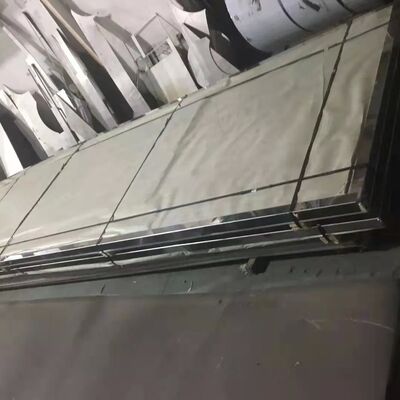

Product Images
