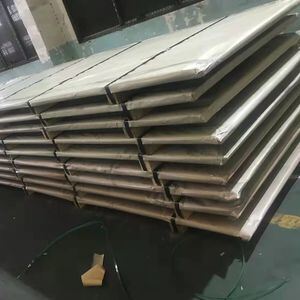

Corrosion Resistant Cold Rolled 321 Stainless Steel Plate with Bright Surface Finish

Certification	AISI
Minimum Order Quantity	40 kg
Price	US $2.41-3.21 / kg

Product Details

Model NO.	321	Shape	Flat
Technique	Cold Rolled	Surface Treatment	Bright
Specification	12202440, 15003000, 15006000, 20006000mm	Thickness	Cold Rolled 0.5-3.0 Mm, Hot Rolled 3.0-80.0 Mm
Standard Size	Cold Rolled 10002000mm 12192438mm, Hot Rolled 15003000mm 15006000mm 18006000mm 20006000mm	Finish	SATIN, 2B, 2D, BA NO (8), CR, HR, No.1, 1D, No.4, BA, 8K, Hairline, Brush, Mirror
Forms / Shapes	Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle)	Tensile Strength	515 MPa Min
Yield Strength	205 MPa Min	Elongation	40% Min
Hardness Rockwell B	95 Max	Hardness Brinell	217 Max
Composition	C: 0.08 Max, Mn: 2.00 Max, Si: 0.75 Max, P: 0.045 Max, S: 0.030 Max, Cr: 17.0-19.0, Ni: 9.0-12.0, N: 0.10 Max, Ti: 5(C+N)-0.70
Highlight	Corrosion Resistant Stainless Steel Plate , Cold Rolled 321 Stainless Steel Sheet , Bright Surface 1.4541 Stainless Steel Plate

Leave a Message

Product Description

Corrosion Resistant Stainless Steel Plate Grade 321 / 1.4541

Product Specifications

Product Type	321 Stainless Steel Sheet, 321 Stainless Steel Plate
Specification	ASTM A240 / ASME SA240 JIS G4305 / EN 10088-2 / GB 24511
Thickness	Cold rolled: 0.5-3.0 mm Hot rolled: 3.0-80.0 mm
Standard Size	Cold rolled: 1000×2000mm, 1219×2438mm Hot rolled: 1500×3000mm, 1500×6000mm, 1800×6000mm, 2000×6000mm
Finish	Satin, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, etc.
Brand	TISCO, BAOSTEEL, POSCO, JISCO, DONGTE
Forms / Shapes	Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate
Other Trade Names	SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet
Our Services	Laser cutting, Fire cutting, bending, Surface polishing, PVC film cover

Material Overview

Grades 321 and 347 are austenitic 18/8 steels (similar to Grade 304) stabilized by Titanium (321) or Niobium (347) additions. These grades resist intergranular corrosion after heating within the carbide precipitation range of 425-850°C. Grade 321 is ideal for applications up to 900°C, offering high strength, scaling resistance, phase stability, and subsequent aqueous corrosion resistance.

Grade 321H features higher carbon content for improved high-temperature strength. While 321 has excellent forming and welding characteristics, it is not recommended as a welding consumable due to titanium's poor transfer across high-temperature arcs. Grade 347 serves as the standard consumable for welding 321.

Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Ni	Other
321	≤0.08	≤2.00	≤0.75	≤0.045	≤0.030	17.0-19.0	9.0-12.0	Ti=5(C+N) min, 0.70 max
321H	0.04-0.10	≤2.00	≤0.75	≤0.045	≤0.030	17.0-19.0	9.0-12.0	Ti=4(C+N) min, 0.70 max

Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50 mm) min	Hardness Rockwell B (HR B) max	Hardness Brinell (HB) max
321	515	205	40	95	217
321H	515	205	40	95	217

Grade Specification Comparison

Grade	UNS No	British BS	Euronorm No	Japanese JIS
321	S32100	321S31	1.4541	SUS 321
321H	S32109	321S51	1.4878	SUS 321H

Typical Applications

Aircraft piston engine manifolds
Expansion joints
Firearms production
Thermal oxidizers
Refinery equipment
High temperature chemical process equipment

Product Images

About Our Company

GMS is a medium-sized professional company integrating wholesale sales and processing of stainless steel materials, providing customers with comprehensive services including sales, processing, and logistics distribution.

Our products serve numerous industries including nuclear power engineering, petrochemical, electric furnace, boiler, pressure vessel, electric heating equipment, textile, pharmaceutical, mechanical equipment, kitchen equipment, solar energy, and papermaking equipment.

Main products include: 321, 310s, 309S, 316L, 304, 316TI, 410S, 202, 201, 904L, 317L, 2205, 2304 duplex stainless steel, as well as 800H, 600H high nickel alloys. We maintain over 3000 tons of standing stock and can arrange special orders for unique requirements.

Additional services include embossing (domestic and Japanese), mirror polishing, plate polishing, grinding, flattening, and cutting (laser, water knife, plasma) to meet diverse customer needs.
