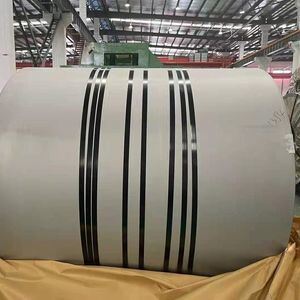

Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm

  • Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm
  • Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm
  • Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm
  • Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm
  • Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm
  • Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm
Certification AISI
Minimum Order Quantity 40 kg
Price US $2.44-3.55 / kg
Product Details
Model NO. 321 Shape Flat
Technique Cold Rolled Surface Treatment Bright
Thickness Range 3.0 - 80.0mm Standard Size 1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Production Capacity 50000kgs Tensile Strength 515 MPa Min
Yield Strength 205 MPa Min Elongation 40% Min
Hardness Rockwell HR B 95 Max Hardness Brinell HB 217 Max
Carbon Content 0.08% Max Chromium Content 17.0 - 19.0%
Nickel Content 9.0 - 12.0%
Highlight

Custom Cutting Stainless Steel Plate

,

EN 10204-3.1 Certificate SS Plate

,

Thickness 3.0 - 80.0mm 321 Stainless Steel Plate
Leave a Message
Product Description
Custom Cutting 321 Stainless Steel Plate
Thickness 3.0 - 80.0mm SS Plate 1.4541 with EN 10204-3.1 Certificate
Product Specifications
Product Type 321 Stainless Steel Sheet, 321 Stainless Steel Plate
Specification ASTM A240 / ASME SA240 JIS G4305 / EN 10088-2 / GB 24511
Thickness Cold rolled: 0.5-3.0 mm
Hot rolled: 3.0-80.0 mm
Standard Size Cold rolled: 1000×2000mm, 1219×2438mm
Hot rolled: 1500×3000mm, 1500×6000mm, 1800×6000mm, 2000×6000mm
Finish Satin, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, etc.
Brand TISCO, BAOSTEEL, POSCO, JISCO, DONGTE
Forms / Shapes Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate
Other Trade Names SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet
Our Services Laser cutting, Fire cutting, bending, Surface polishing, PVC film cover
Material Overview: Grades 321 and 347 are basic austenitic 18/8 steel (Grade 304) stabilized by Titanium (321) or Niobium (347) additions. These grades resist intergranular corrosion after heating within 425-850°C. Grade 321 is ideal for applications up to 900°C, offering high strength, scaling resistance, phase stability, and subsequent aqueous corrosion resistance.
Chemical Composition
Typical compositional ranges for grade 321 stainless steel:
Grade C Mn Si P S Cr Ni Other
321 ≤0.08 ≤2.00 ≤0.75 ≤0.045 ≤0.030 17.0-19.0 9.0-12.0 Ti=5(C+N) min, ≤0.70
321H 0.04-0.10 ≤2.00 ≤0.75 ≤0.045 ≤0.030 17.0-19.0 9.0-12.0 Ti=4(C+N) min, ≤0.70
Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness Rockwell B (HR B) max Hardness Brinell (HB) max
321 515 205 40 95 217
321H 515 205 40 95 217
Grade Specification Comparison
Grade UNS No British BS Euronorm No Japanese JIS
321 S32100 321S31 1.4541 SUS 321
321H S32109 321S51 1.4878 SUS 321H
Typical Applications
  • Aircraft piston engine manifolds
  • Expansion joints
  • Firearms production
  • Thermal oxidizers
  • Refinery equipment
  • High temperature chemical process equipment
Product Gallery
Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm 0 Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm 1 Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm 2 Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm 3 Custom Cutting 321 Stainless Steel Plate with EN 10204-3.1 Certificate and Thickness 3.0 - 80.0mm 4
About Our Company
GMS is a medium-sized professional company integrating wholesale sales and processing of stainless steel materials, providing customers with comprehensive services including sales, processing, and logistics distribution.
Our products serve numerous industries including nuclear power engineering, petrochemical, electric furnace, boiler, pressure vessel, electric heating equipment, textile, pharmaceutical, mechanical equipment, kitchen equipment, solar energy, and papermaking equipment, with customers nationwide.
Main products include: 321, 310s, 309S, 316L, 304, 316TI, 410S, 202, 201, 904L, 317L, 2205, 2304 duplex stainless steel, as well as 800H, 600H high nickel alloys. We maintain standing stock of over 3000 tons and can arrange special orders for unique steel types and specifications.
Additional services include embossing (domestic and Japanese), mirror polishing, plate polishing, grinding, flattening, and cutting services (laser, water knife, plasma) to meet diverse customer requirements and achieve one-stop procurement solutions.
