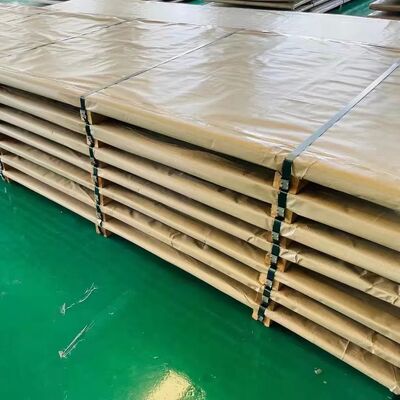

1500mm Width 321 Stainless Steel Plate Hot Rolled 3.0 - 80.0mm from TISCO
Product Details
| Model NO. | 321 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness Range | 0.5-80.0 Mm |
| Standard Size | 1000*2000mm, 1219*2438mm, 1500*3000mm, 1500*6000mm, 1800*6000mm, 2000*6000mm | Finish | SATIN, 2B, 2D, BA NO (8), CR, HR, No.1, 1D, No.4, BA, 8K, Hairline, Brush, Mirror |
| Tensile Strength | 515 MPa Min | Yield Strength | 205 MPa Min |
| Elongation | 40% Min | Hardness Rockwell B | 95 Max |
| Hardness Brinell | 217 Max | Carbon Content | 0.08% Max |
| Chromium Content | 17.0-19.0% | ||
| Highlight | 1500mm Width Stainless Steel Plate,321 Stainless Steel Plate,Hot Rolled Stainless Steel Plate |
||
Product Description
321 Stainless Steel Plate - Hot Rolled 3.0-80.0mm
Available in widths of 1500mm, 1800mm, and 2000mm from TISCO. Grades 321 and 347 are basic austenitic 18/8 steel stabilized by Titanium (321) or Niobium (347) additions, providing resistance to intergranular corrosion after heating within 425-850°C range.
Product Specifications
| Product Type | 321 Stainless Steel Sheet, 321 Stainless Steel Plate |
|---|---|
| Specification | ASTM A240 / ASME SA240 JIS G4305 / EN 10088-2 / GB 24511 |
| Thickness | Cold rolled: 0.5-3.0 mm Hot rolled: 3.0-80.0 mm |
| Standard Size | Cold rolled: 1000×2000mm, 1219×2438mm Hot rolled: 1500×3000mm, 1500×6000mm, 1800×6000mm, 2000×6000mm |
| Finish | SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror etc. |
| Brand | TISCO, BAOSTEEL, POSCO, JISCO, DONGTE |
| Forms / Shapes | Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
| Other Trade Names | SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet |
| Our Service | Laser cutting, Fire cutting, bending, Surface polishing, PVC film Cover |
Grade 321 is the preferred choice for applications up to 900°C, combining high strength, scaling resistance, phase stability, and subsequent aqueous corrosion resistance. Grade 321H provides improved high-temperature strength with higher carbon content.
Chemical Composition
Table 1: Composition Ranges for 321-Grade Stainless Steel
| Grade | C | Mn | Si | P | S | Cr | Ni | Other |
|---|---|---|---|---|---|---|---|---|
| 321 | max 0.08 | 2.00 | 0.75 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | Ti=5(C+N) min 0.70 |
| 321H | 0.04-0.10 | 2.00 | 0.75 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | Ti=4(C+N) min 0.70 |
Mechanical Properties
Table 2: Mechanical Properties of 321-Grade Stainless Steel
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50 mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| 321 | 515 | 205 | 40 | 95 | 217 |
| 321H | 515 | 205 | 40 | 95 | 217 |
Grade Specification Comparison
Table 4: Grade Specifications for 321-Grade Stainless Steel
| Grade | UNS No | Old British BS | Euronorm No | Swedish SS | Japanese JIS |
|---|---|---|---|---|---|
| 321 | S32100 | 321S31 | 1.4541 | 2337 | SUS 321 |
| 321H | S32109 | 321S51 | 1.4878 | - | SUS 321H |
Typical Applications
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment
Product Gallery
About Our Company
GMS is a medium-sized professional company integrating wholesale sales and processing of stainless steel materials, providing customers with one-stop services of sales, processing and logistics distribution.
Our products serve nuclear power engineering, petrochemical, electric furnace, boiler, pressure vessel, electric heating equipment, textile, pharmaceutical, mechanical equipment, kitchen equipment, solar energy, papermaking equipment and many other industries, with customers throughout the country.
Main products include: 321, 310s, 309S, 316L, 304, 316TI, 410S, 202, 201, 904L, 317L, 2205, 2304 duplex stainless steel, as well as 800H, 600H high nickel alloys. We maintain standing stock of over 3000 tons and can arrange special orders for unique requirements.
Additional services include embossing (domestic and Japanese), mirror polishing, plate polishing, grinding, flattening, and cutting (laser, water knife, plasma) to meet diverse customer needs.
