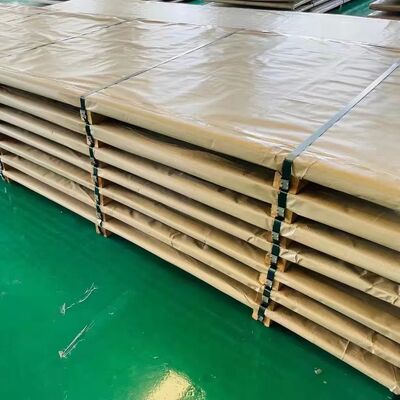

1800mm Width Grade 321 Stainless Steel Plate with 2.0 - 40.0mm Thickness SS Plate
Product Details
| Width | 1800mm | Thickness Range | 2.0 - 40.0mm |
|---|---|---|---|
| Steel Grade | 321 | Shape | Flat |
| Technique | Cold Rolled | Surface Treatment | Bright |
| Standard Sizes | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Tensile Strength | 515 MPa Min |
| Yield Strength | 205 MPa Min | Elongation | 40% Min |
| Hardness Rockwell B | 95 Max | Hardness Brinell | 217 Max |
| Carbon Content | 0.08% Max | Chromium Content | 17.0 - 19.0% |
| Nickel Content | 9.0 - 12.0% | ||
| Highlight | 1800mm Width Stainless Steel Plate,Grade 321 SS Plate,2.0 - 40.0mm Thickness 321 Stainless Steel Plate |
||
Product Description
1800mm Width Stainless Steel Plate Grade 321
Available in thickness range 2.0 - 40.0mm with 1.8m width
Product Specifications
Product Types
321 Stainless Steel Sheet, 321 Stainless Steel Plate
Standards
ASTM A240 / ASME SA240 JIS G4305 / EN 10088-2 / GB 24511
Thickness Range
Cold rolled: 0.5-3.0 mm
Hot rolled: 3.0-80.0 mm
Standard Sizes
Cold rolled: 1000×2000mm, 1219×2438mm
Hot rolled: 1500×3000mm, 1500×6000mm, 1800×6000mm, 2000×6000mm
Available Finishes
SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, and more
Brands Available
TISCO, BAOSTEEL, POSCO, JISCO, DONGTE
Forms & Shapes
Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate
Alternative Trade Names
SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet
Additional Services
Laser cutting, Fire cutting, bending, Surface polishing, PVC film covering
Material Characteristics
Grades 321 and 347 are austenitic 18/8 steels (similar to Grade 304) stabilized by Titanium (321) or Niobium (347) additions. These grades resist intergranular corrosion after heating within the carbide precipitation range of 425-850°C.
Grade 321 is ideal for applications up to 900°C, offering high strength, scaling resistance, phase stability, and subsequent aqueous corrosion resistance.
Grade 321H features higher carbon content for improved high-temperature strength. Note that titanium doesn't transfer well across high-temperature arcs, making grade 347 the preferred welding consumable for 321 materials.
Both grades offer excellent forming and welding characteristics, outstanding toughness even at cryogenic temperatures, and do not require post-weld annealing.
Chemical Composition
Table 1: Composition Ranges for 321-Grade Stainless Steel
| Grade | C | Mn | Si | P | S | Cr | Ni | Other |
|---|---|---|---|---|---|---|---|---|
| 321 | 0.08 max | 2.00 max | 0.75 max | 0.045 max | 0.030 max | 17.0-19.0 | 9.0-12.0 | Ti=5(C+N) min 0.70 max |
| 321H | 0.04-0.10 | 2.00 max | 0.75 max | 0.045 max | 0.030 max | 17.0-19.0 | 9.0-12.0 | Ti=4(C+N) min 0.70 max |
Mechanical Properties
Table 2: Mechanical Properties of 321-Grade Stainless Steel
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| 321 | 515 | 205 | 40 | 95 | 217 |
| 321H | 515 | 205 | 40 | 95 | 217 |
International Grade Equivalents
Table 4: Grade Specifications for 321 Stainless Steel
| Grade | UNS No | British BS | Euronorm No | Swedish SS | Japanese JIS |
|---|---|---|---|---|---|
| 321 | S32100 | 321S31 | 1.4541 | 2337 | SUS 321 |
| 321H | S32109 | 321S51 | 1.4878 | - | SUS 321H |
Typical Applications
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment
Product Gallery
About GMS Company
GMS is a medium-sized professional company integrating wholesale sales and processing of stainless steel materials, providing customers with comprehensive services including sales, processing, and logistics distribution.
Industries Served
Nuclear power engineering, petrochemical, electric furnace, boiler, pressure vessel, electric heating equipment, textile, pharmaceutical, mechanical equipment, kitchen equipment, solar energy, papermaking equipment, and many other industries nationwide.
Available Materials
321, 310s, 309S, 316L, 304, 316TI, 410S, 202, 201, 904L, 317L, 2205, 2304 duplex stainless steel, plus 800H, 600H high nickel alloys. Standing stock exceeds 3000 tons with capability for special orders.
Value-Added Services
Embossing (domestic and Japanese), mirror polishing, plate polishing, grinding, flattening, cutting (laser, water knife, plasma) to meet diverse customer requirements.
