321 Stainless Steel Plate and Sheet Cold Rolled with Bright Surface in 1500*6000mm Standard Size
Product Details
| Model NO. | 321 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness Range | 0.5-80.0 Mm |
| Standard Size | 1000*2000mm, 1219*2438mm, 1500*3000mm, 1500*6000mm, 1800*6000mm, 2000*6000mm | Finish Options | SATIN, 2B, 2D, BA NO (8), CR, HR, No.1, 1D, No.4, BA, 8K, Hairline, Brush, Mirror |
| Tensile Strength | 515 MPa Min | Yield Strength | 205 MPa Min |
| Elongation | 40% Min | Hardness Rockwell B | 95 Max |
| Hardness Brinell | 217 Max | Carbon Content | 0.08% Max |
| Chromium Content | 17.0-19.0% | ||
| Highlight | Cold Rolled 321 Stainless Steel Plate,Bright Surface 321 Stainless Steel Sheet,1500*6000mm 321 Stainless Steel |
||
Product Description
321 Stainless Steel Sheet & Plate Specifications
As a leading 321 stainless steel sheet supplier in Wuxi and stainless steel plate factory in China, we provide comprehensive specifications and processing services for industrial applications.
Product Specifications
| Product Type | 321 Stainless Steel Sheet, 321 Stainless Steel Plate |
|---|---|
| Specification | ASTM A240 / ASME SA240 JIS G4305 / EN 10088-2 / GB 24511 |
| Thickness | Cold rolled: 0.5-3.0 mm Hot rolled: 3.0-80.0 mm |
| Standard Size | Cold rolled: 1000×2000mm, 1219×2438mm Hot rolled: 1500×3000mm, 1500×6000mm, 1800×6000mm, 2000×6000mm |
| Finish | SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, etc. |
| Brand | TISCO, BAOSTEEL, POSCO, JISCO, DONGTE |
| Forms / Shapes | Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
| Other Trade Names | SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet |
| Our Services | Laser cutting, Fire cutting, bending, Surface polishing, PVC film cover |
Material Overview: Grades 321 and 347 are basic austenitic 18/8 steel (Grade 304) stabilized by Titanium (321) or Niobium (347) additions. These grades resist intergranular corrosion after heating within 425-850°C. Grade 321 is ideal for applications up to 900°C, offering high strength, scaling resistance, phase stability, and subsequent aqueous corrosion resistance.
Chemical Composition
Typical compositional ranges for grade 321 stainless steel sheets:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Other |
|---|---|---|---|---|---|---|---|---|---|---|
| 321 | 0.08 max | 2.00 max | 0.75 max | 0.045 max | 0.030 max | 17.0-19.0 | - | 9.0-12.0 | 0.10 max | Ti=5(C+N) min, 0.70 max |
| 321H | 0.04-0.10 | 2.00 max | 0.75 max | 0.045 max | 0.030 max | 17.0-19.0 | - | 9.0-12.0 | - | Ti=4(C+N) min, 0.70 max |
Mechanical Properties
Typical mechanical properties for grade 321 stainless steel sheets:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50 mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| 321 | 515 | 205 | 40 | 95 | 217 |
| 321H | 515 | 205 | 40 | 95 | 217 |
Grade Specification Comparison
| Grade | UNS No | Old British BS | British En | Euronorm No | Euronorm Name | Swedish SS | Japanese JIS |
|---|---|---|---|---|---|---|---|
| 321 | S32100 | 321S31 | 58B, 58C | 1.4541 | X6CrNiTi18-10 | 2337 | SUS 321 |
| 321H | S32109 | 321S51 | - | 1.4878 | X10CrNiTi18-10 | - | SUS 321H |
Applications
321 / 321H Stainless Steel Sheet UNS S32100 typical applications include:
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment

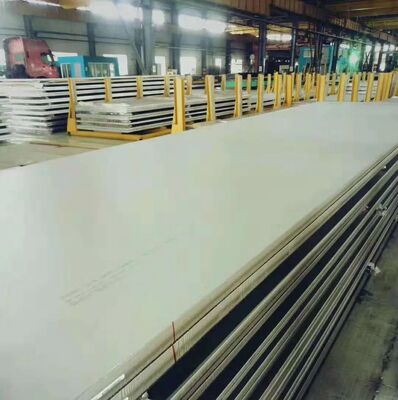

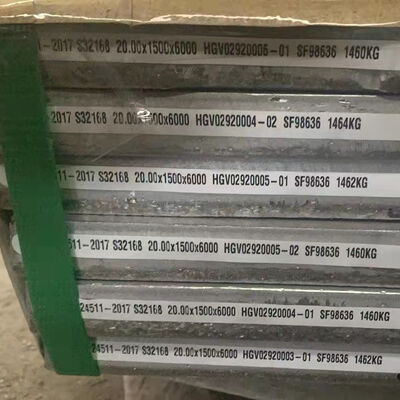

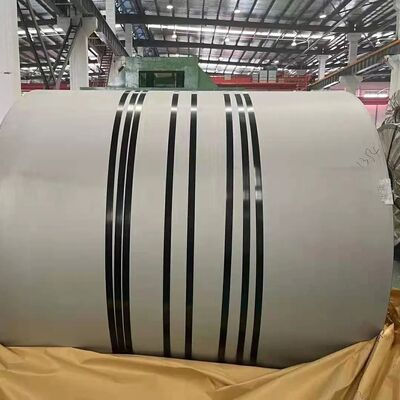

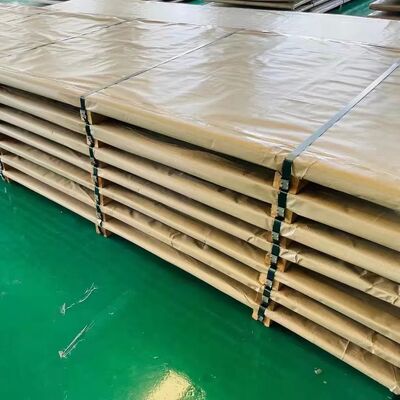

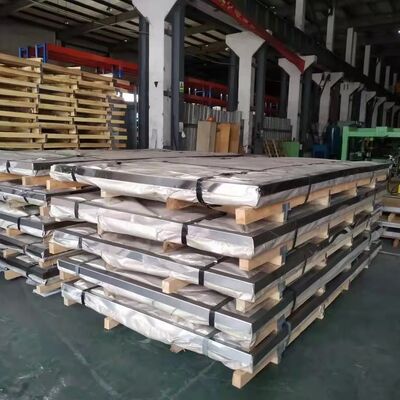

Product Gallery
About Our Company
GMS is a medium-sized professional company integrating wholesale sales and processing of stainless steel materials, providing customers with comprehensive one-stop services including sales, processing, and logistics distribution.
Our products serve multiple industries including nuclear power engineering, petrochemical, electric furnace, boiler, pressure vessel, electric heating equipment, textile, pharmaceutical, mechanical equipment, kitchen equipment, solar energy, and papermaking equipment, with customers nationwide.
Our main products include: 321, 310s, 309S, 316L, 304, 316TI, 410S, 202, 201, 904L, 317L, 2205, 2304 duplex stainless steel, as well as 800H, 600H high nickel alloys. We maintain standing stock of over 3000 tons and can arrange special orders for unique steel types and specifications.
To meet diverse customer needs and achieve one-stop procurement services, we provide embossing (domestic and Japanese), mirror polishing, plate polishing, grinding, flattening, and cutting services (laser, water jet, plasma) according to customer requirements.
