Laser Cutting 321 Stainless Steel Plate 6.0mm to 14.0mm Custom Cutting SS Plate

Certification	AISI
Minimum Order Quantity	40 kg
Price	US $2.69-3.12 / kg

Product Details

Model NO.	321	Shape	Flat
Technique	Cold Rolled	Surface Treatment	Bright
Specification	12202440, 15003000, 15006000, 20006000mm	Thickness	0.5-3.0 Mm (Cold Rolled), 3.0-80.0 Mm (Hot Rolled)
Standard Size	10002000mm, 12192438mm (Cold Rolled); 15003000mm, 15006000mm, 18006000mm, 20006000mm (Hot Rolled)	Finish	SATIN, 2B, 2D, BA NO (8), CR, HR, No.1, 1D, No.4, BA, 8K, Hairline, Brush, Mirror
Forms	Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle)	Tensile Strength	515 MPa Min
Yield Strength	205 MPa Min	Elongation	40% Min
Hardness	HR B 95 Max, HB 217 Max	Carbon Content	0.08% Max (321), 0.04-0.10% (321H)
Chromium Content	17.0-19.0%
Highlight	Laser Cutting Stainless Steel Plate , 6.0mm to 14.0mm 321 Stainless Steel Plate , Custom Cutting SS Plate

Leave a Message

Product Description

Laser Cutting 321 Stainless Steel Plate

Custom cutting available for thicknesses: 6.0mm, 8.0mm, 10.0mm, 12.0mm, 14.0mm

321 Stainless Steel Plate Specifications

Product Type	321 Stainless Steel Sheet, 321 Stainless Steel Plate
Specification	ASTM A240 / ASME SA240 JIS G4305 / EN 10088-2 / GB 24511
Thickness	Cold rolled: 0.5-3.0 mm Hot rolled: 3.0-80.0 mm
Standard Size	Cold rolled: 1000×2000mm, 1219×2438mm Hot rolled: 1500×3000mm, 1500×6000mm, 1800×6000mm, 2000×6000mm
Finish	SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, etc.
Brand	TISCO, BAOSTEEL, POSCO, JISCO, DONGTE
Forms / Shapes	Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate
Other Trade Names	SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet

Grades 321 and 347 are the basic austenitic 18/8 steel (Grade 304) stabilized by Titanium (321) or Niobium (347) additions. These grades resist intergranular corrosion after heating within the carbide precipitation range of 425-850°C. Grade 321 is ideal for applications up to 900°C, offering high strength, scaling resistance, phase stability, and subsequent aqueous corrosion resistance.

Grade 321H features higher carbon content for improved high-temperature strength. Note that 321 is not recommended as a welding consumable due to poor titanium transfer across high-temperature arcs; grade 347 is preferred for welding 321.

Like other austenitic grades, 321 and 347 offer excellent forming and welding characteristics, can be brake or roll-formed easily, and have outstanding weldability without requiring post-weld annealing. They maintain excellent toughness even at cryogenic temperatures. Grade 321 does not polish well and is not recommended for decorative applications.

Chemical Composition of 321 Stainless Steel

Grade	C	Mn	Si	P	S	Cr	Ni	Other
321	≤0.08	≤2.00	≤0.75	≤0.045	≤0.030	17.0-19.0	9.0-12.0	Ti=5(C+N) min, 0.70 max
321H	0.04-0.10	≤2.00	≤0.75	≤0.045	≤0.030	17.0-19.0	9.0-12.0	Ti=4(C+N) min, 0.70 max

Mechanical Properties of 321 Stainless Steel

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness Rockwell B (HR B) max	Brinell (HB) max
321	515	205	40	95	217
321H	515	205	40	95	217

Grade Specification Comparison

Grade	UNS No	British BS	Euronorm No	Japanese JIS
321	S32100	321S31	1.4541	SUS 321
321H	S32109	321S51	1.4878	SUS 321H

321 / 321H Stainless Steel Applications

Aircraft piston engine manifolds
Expansion joints
Firearms production
Thermal oxidizers
Refinery equipment
High temperature chemical process equipment

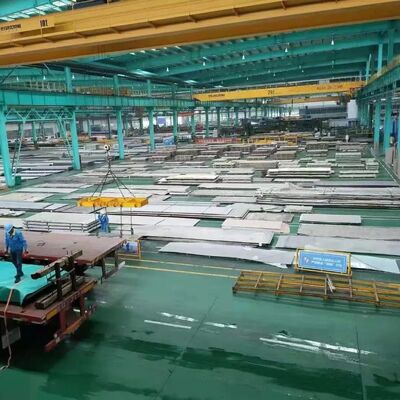

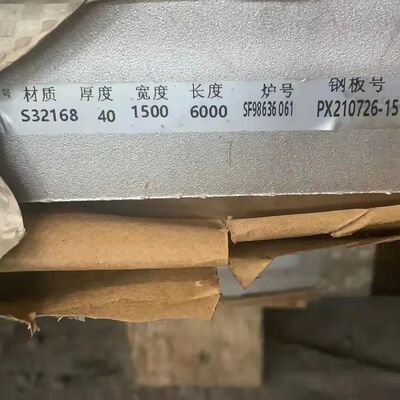

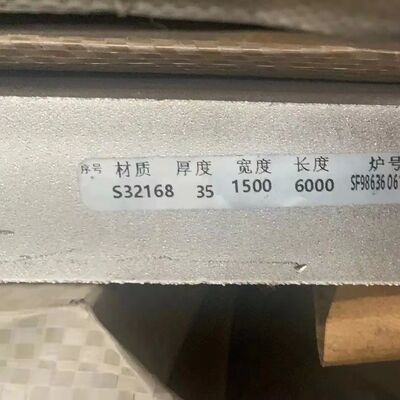

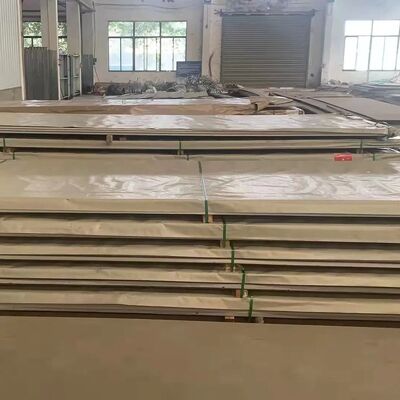

321 Stainless Steel Plate Gallery

About GMS Company

GMS is a medium-sized professional company integrating wholesale sales and processing of stainless steel materials, providing customers with comprehensive services including sales, processing, and logistics distribution.

Our products serve numerous industries including nuclear power engineering, petrochemical, electric furnace, boiler, pressure vessel, electric heating equipment, textile, pharmaceutical, mechanical equipment, kitchen equipment, solar energy, and papermaking equipment, with customers nationwide.

Main products include: 321, 310s, 309S, 316L, 304, 316TI, 410S, 202, 201, 904L, 317L, 2205, 2304 duplex stainless steel, as well as 800H, 600H high nickel alloys. We maintain over 3000 tons of standing stock and can arrange special orders for unique steel types and specifications.

To meet diverse customer needs and provide one-stop procurement services, we offer embossing (domestic and Japanese), mirror polishing, plate polishing, grinding, flattening, and cutting services (laser, water jet, plasma, and others) according to customer requirements.
