Cold Rolled Hot Rolled 321 Stainless Steel Plate with Bright Surface SS Plate in Stock
Product Details
| Model NO. | 321 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness Range | 0.5-3.0 Mm (Cold Rolled), 3.0-80.0 Mm (Hot Rolled) |
| Standard Size | 1000*2000mm, 1219*2438mm (Cold Rolled); 1500*3000mm, 1500*6000mm, 1800*6000mm, 2000*6000mm (Hot Rolled) | Finish | SATIN, 2B, 2D, BA NO (8), CR, HR, No.1, 1D, No.4, BA, 8K, Hairline, Brush, Mirror |
| Tensile Strength | 515 MPa Min | Yield Strength | 205 MPa Min |
| Elongation | 40% Min | Hardness | HRB 95 Max, HB 217 Max |
| Carbon Content | 0.08% Max (321), 0.04-0.10% (321H) | Chromium Content | 17.0-19.0% |
| Nickel Content | 9.0-12.0% | ||
| Highlight | Cold Rolled Stainless Steel Plate,Hot Rolled SS Plate,Bright Surface 321 Stainless Steel Plate |
||
Product Description
Cold Rolled & Hot Rolled 321 Stainless Steel Sheet & Plate
Available in stock SS plates for immediate delivery.
Product Specifications
| Product Type | 321 Stainless Steel Sheet, 321 Stainless Steel Plate |
|---|---|
| Specification | ASTM A240 / ASME SA240 JIS G4305 / EN 10088-2 / GB 24511 |
| Thickness | Cold Rolled: 0.5-3.0 mm Hot Rolled: 3.0-80.0 mm |
| Standard Size | Cold Rolled: 1000×2000mm, 1219×2438mm Hot Rolled: 1500×3000mm, 1500×6000mm, 1800×6000mm, 2000×6000mm |
| Finish | SATIN, 2B, 2D, BA NO (8), Cold Rolled Sheet (CR), Hot Rolled Plate (HR), No.1 Finish Hot Rolled, 1D, No.4, BA, 8K, Hairline, Brush, Mirror, etc. |
| Brand | TISCO, BAOSTEEL, POSCO, JISCO, DONGTE |
| Forms / Shapes | Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), Sheared, Annealed, Soft Annealed, Descaled, Tread Plate, Checker Plate |
| Other Trade Names | SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet |
Grade Overview
Grades 321 and 347 are austenitic 18/8 steels (similar to Grade 304) stabilized by Titanium (321) or Niobium (347) additions. These grades resist intergranular corrosion after heating between 425-850°C. Grade 321 is ideal for applications up to 900°C, offering high strength, scaling resistance, phase stability, and subsequent aqueous corrosion resistance.
Grade 321H features higher carbon content for improved high-temperature strength. Note that 321 is not recommended as a welding consumable due to titanium's poor transfer across high-temperature arcs; grade 347 is preferred for welding 321.
Both grades offer excellent forming and welding characteristics, outstanding toughness even at cryogenic temperatures, and do not require post-weld annealing. Grade 321 does not polish well and is not recommended for decorative applications.
Chemical Composition
Typical compositional ranges for 321 stainless steel:
| Grade | C | Mn | Si | P | S | Cr | Ni | Other |
|---|---|---|---|---|---|---|---|---|
| 321 | ≤0.08 | ≤2.00 | ≤0.75 | ≤0.045 | ≤0.030 | 17.0-19.0 | 9.0-12.0 | Ti=5(C+N) min, 0.70 max |
| 321H | 0.04-0.10 | ≤2.00 | ≤0.75 | ≤0.045 | ≤0.030 | 17.0-19.0 | 9.0-12.0 | Ti=4(C+N) min, 0.70 max |
Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B max | Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| 321 | 515 | 205 | 40 | 95 | 217 |
| 321H | 515 | 205 | 40 | 95 | 217 |
Grade Specification Comparison
| Grade | UNS No | British BS | Euronorm No | Japanese JIS |
|---|---|---|---|---|
| 321 | S32100 | 321S31 | 1.4541 | SUS 321 |
| 321H | S32109 | 321S51 | 1.4878 | SUS 321H |
Applications
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment

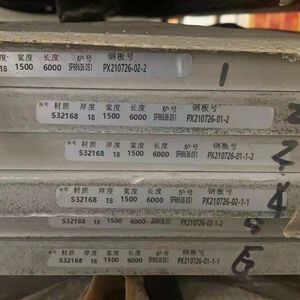

Product Images
About Our Company
GMS is a professional company specializing in wholesale sales and processing of stainless steel materials, providing comprehensive sales, processing, and logistics distribution services.
Our products serve numerous industries including nuclear power engineering, petrochemical, electric furnace, boiler, pressure vessel, electric heating equipment, textile, pharmaceutical, mechanical equipment, kitchen equipment, solar energy, and papermaking equipment.
We stock a wide range of stainless steel grades including 321, 310S, 309S, 316L, 304, 316Ti, 410S, 202, 201, 904L, 317L, 2205, 2304 duplex stainless steel, and high nickel alloys like 800H and 600H. With over 3000 tons of standing stock, we can also arrange special orders for unique steel requirements and specifications.
Additional services include embossing (domestic and Japanese), mirror polishing, plate polishing, grinding, flattening, and cutting (laser, water jet, plasma) to meet diverse customer needs and achieve one-stop procurement solutions.
