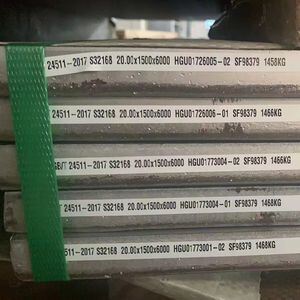

ASTM A240 Grade 321 Stainless Steel Plate with 0.6 - 80.0mm Thickness Available for Custom Cutting
Product Details
| Model NO. | 321 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness | 0.6 - 80.0mm |
| Standard Size | 1000*2000mm, 1219*2438mm, 1500*3000mm, 1500*6000mm, 1800*6000mm, 2000*6000mm | Finish | SATIN, 2B, 2D, BA NO (8), Cold Rolled Sheet (CR), Hot Rolled Plate (HR), No.1 Finish Hot Rolled, 1D, No.4, BA, 8K, Hairline, Brush, Mirror |
| Tensile Strength | 515 MPa Min | Yield Strength | 205 MPa Min |
| Elongation | 40% Min | Hardness Rockwell B | 95 Max |
| Hardness Brinell | 217 Max | Composition | C: 0.08 Max, Mn: 2.00 Max, Si: 0.75 Max, P: 0.045 Max, S: 0.030 Max, Cr: 17.0-19.0, Ni: 9.0-12.0, N: 0.10 Max, Ti: 5(C+N) Min-0.70 Max |
| Forms/Shapes | Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle) | ||
| Highlight | ASTM A240 Grade 321 Stainless Steel Plate,Custom Cutting Stainless Steel Plate,0.6 - 80.0mm Thickness SS Plate |
||
Product Description
ASTM A240 Grade 321 / 321H / 1.4541 Stainless Steel Plate
Available in thickness range of 0.6 - 80.0mm with custom cutting services
Product Specifications
| Product Type | 321 Stainless Steel Sheet, 321 Stainless Steel Plate |
| Specification | ASTM A240 / ASME SA240 JIS G4305 / EN 10088-2 / GB 24511 |
| Thickness | Cold rolled: 0.5-3.0 mm Hot rolled: 3.0-80.0 mm |
| Standard Size | Cold rolled: 1000×2000mm, 1219×2438mm Hot rolled: 1500×3000mm, 1500×6000mm, 1800×6000mm, 2000×6000mm |
| Finish | SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, etc. |
| Brand | TISCO, BAOSTEEL, POSCO, JISCO, DONGTE |
| Forms / Shapes | Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
| Other Trade Names | SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet |
Material Overview
Grades 321 and 347 are austenitic 18/8 steels (based on Grade 304) stabilized by Titanium (321) or Niobium (347) additions. These grades resist intergranular corrosion after heating within the carbide precipitation range of 425-850°C. Grade 321 is ideal for applications up to 900°C, offering high strength, scaling resistance, phase stability, and subsequent aqueous corrosion resistance.
Grade 321H features higher carbon content for improved high-temperature strength. Note that titanium doesn't transfer well across high-temperature arcs, making grade 347 the preferred welding consumable for 321 materials.
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | Other |
|---|---|---|---|---|---|---|---|---|
| 321 | max 0.08 | 2.00 | 0.75 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | Ti=5(C+N) min 0.70 |
| 321H | 0.04-0.10 | 2.00 | 0.75 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | Ti=4(C+N) min 0.70 |
Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50 mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| 321 | 515 | 205 | 40 | 95 | 217 |
| 321H | 515 | 205 | 40 | 95 | 217 |
International Grade Equivalents
| Grade | UNS No | British BS | Euronorm No | Japanese JIS |
|---|---|---|---|---|
| 321 | S32100 | 321S31 | 1.4541 | SUS 321 |
| 321H | S32109 | 321S51 | 1.4878 | SUS 321H |
Typical Applications
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment
Product Gallery
About Our Company
GMS is a medium-sized professional company integrating wholesale sales and processing of stainless steel materials, providing customers with comprehensive services including sales, processing, and logistics distribution.
Our products serve multiple industries including nuclear power engineering, petrochemical, electric furnace, boiler, pressure vessel, electric heating equipment, textile, pharmaceutical, mechanical equipment, kitchen equipment, solar energy, and papermaking equipment, with customers nationwide.
Main products include: 321, 310s, 309S, 316L, 304, 316TI, 410S, 202, 201, 904L, 317L, 2205, 2304 duplex stainless steel, as well as 800H, 600H high nickel alloys. We maintain over 3000 tons standing stock and can arrange special orders for unique steel types and specifications.
Additional services include embossing (domestic and Japanese), mirror polishing, plate polishing, grinding, flattening, and cutting (laser, water knife, plasma) to meet diverse customer requirements and achieve one-stop procurement services.
