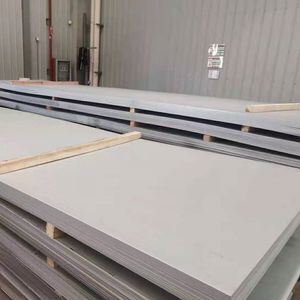

Tisco Posco 316Ti Hot Rolled Stainless Steel Plate with Polished Surface 0.6 - 30.0mm
Product Details
| Shape | Round | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Polished | Thickness Range | 0.6 - 30.0mm |
| Standard Size | 1219*2438mm, 1500*6000mm | Carbon Content | 0.08max |
| Manganese Content | 2.0 | Phosphorus Content | 0.045 |
| Sulfur Content | 0.030 | Silicon Content | 1.0 |
| Chromium Content | 16.0-18.0 | Nickel Content | 10.0-14.0 |
| Molybdenum Content | 2.0-3.0 | Titanium Content | 0.70 Max |
| Production Capacity | 60000kgs | ||
| Highlight | 316Ti Stainless Steel Plate,Hot Rolled SS Plate,Polished Surface Stainless Sheet |
||
Product Description
Tisco Posco 316Ti / S31635 / 1.4571 Stainless Steel Sheet Plate
Product Name
Stainless Steel Plate Sheet
Grade
316Ti / S31635 / 1.4571
Thickness Range
Cold Rolled: 0.6 - 3.0mm
Hot Rolled: 4.0 - 30.0mm
Hot Rolled: 4.0 - 30.0mm
Standard Size
Cold Rolled: 1219×2438mm
Hot Rolled: 1500×6000mm
Hot Rolled: 1500×6000mm
Standard
ASTM A240 / JIS G4305 / EN 10088-2
Brand
TISCO POSCO JISCO LISCO DONGTE BAOSTEEL
MOQ
1 PCS
Service
Cutting, Surface Finishing (BA 8K HL colored Checkered)
About 316Ti Stainless Steel
Stainless steel types 1.4401 and 1.4404 are also known as grades 316 and 316L respectively. Grade 316 is an austenitic grade second only to 304 in commercial importance. 316 stainless steel contains an addition of molybdenum that provides improved corrosion resistance, particularly for pitting and crevice corrosion in chloride environments.
316L, the low carbon version of 316 stainless steel, is immune to grain boundary carbide precipitation (sensitisation), making it suitable for heavy gauge welded components. For elevated temperature applications, the high carbon variant 316H stainless steel and the stabilized grade 316Ti stainless steel should be employed.
Stainless steel grade 316Ti contains approximately 0.5% titanium. The titanium atoms stabilize the structure at temperatures over 800°C, preventing carbide precipitation at grain boundaries and protecting the metal from corrosion. The main advantage of 316Ti is its ability to withstand higher temperatures for longer periods without sensitization occurring, while retaining physical and mechanical properties similar to standard 316 grades.
Chemical Composition of 316Ti Stainless Steel
| Grade | C | Mn | P | S | Si | Cr | Ni | Mo | Ti |
|---|---|---|---|---|---|---|---|---|---|
| 316Ti (1.4571) | 0.08max | 2.0 | 0.045 | 0.030 | 1.0 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.70 max |
Applications of 316Ti Stainless Steel
- Food processing equipment
- Brewery equipment
- Chemical and petrochemical equipment
- Laboratory benches & equipment
- Coastal architectural panelling
- Coastal balustrading
- Boat fittings
- Chemical transportation containers
- Heat exchangers
- Mining screens
Technical Advantages
316Ti is particularly popular in European specifications, especially in Germany and Eastern European countries. While 316Ti offers no mechanical property advantage over 316/316L in standard applications, it provides superior performance in specific high-temperature applications where both elevated temperatures and aqueous corrosion conditions are present.
For typical aqueous corrosion applications, dual certified 316/316L provides equivalent performance. For high-temperature service above 1000°F, 316H offers comparable performance to 316Ti. The stabilized grade is most beneficial in specialized applications such as petroleum refining processes including catalytic cracking and hydrodesulfurization.
Product Images
About Our Company
GMS is a medium-sized professional company specializing in stainless steel material wholesale sales and processing. We provide customers with comprehensive services including sales, processing, logistics, and distribution.
Our company primarily serves industries including nuclear power engineering, petrochemical, electric furnace, boiler, pressure vessel, electric heating equipment, textile, pharmaceutical, mechanical equipment, kitchen equipment, solar energy, and papermaking equipment, with customers nationwide.
Our main products include: 321, 310s, 309S, 316L, 304, 316Ti, 410S, 202, 201, 904L, 317L, 2205, 2304 duplex stainless steel, as well as 800H, 600H high nickel alloys. We maintain standing stock of over 3000 tons and can arrange special orders for unique steel types and specifications.
We offer comprehensive processing services including embossing (domestic and Japanese standards), mirror polishing, plate polishing, grinding, flattening, and cutting (laser, water jet, plasma) to meet diverse customer requirements.
