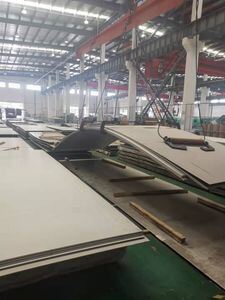

Anti Oxidation Inconel 600 Nickel Based Alloy Plate with Hot Rolled Technique and Polished Surface
Product Details
| Model NO. | Inconel 600 | Shape | Flat |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Polished |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 500000kgs |
| Material Designation | Inconel 600 Nickel Based Alloy | US Grade | N06600 / NS3102 |
| Max Temperature | 1100 ºC | Carbon Content | ≤0.15% |
| Silicon Content | ≤0.50% | Manganese Content | ≤1.00% |
| Chromium Content | 14.0-17.0% | Nickel Content | ≥72.0% |
| Copper Content | ≤0.50% | ||
| Highlight | Anti Oxidation Inconel 600 Plate,Hot Rolled Nickel Based Alloy Plate,Polished Surface N06600 Plate |
||
Product Description
N06600 / NS3102 Inconel 600 Nickel Based Alloy Plate
UNS N06600 Anti Oxidation Inconel 600 Nickel Based Alloy Seamless Plate
Material Designation: Inconel 600 nickel based alloy
US Grade: N06600 / NS3102
Overview of Inconel 600 (N06600) Nickel-Based Alloy
Inconel 600 is an early-developed nickel-chromium-iron-based solid solution strengthened alloy. This material offers excellent high temperature corrosion and oxidation resistance, superior hot and cold processing capabilities, and outstanding welding performance. It maintains satisfactory heat resistance and high temperature plasticity below 700°C.
The alloy can be strengthened through cold working processes and can be joined using resistance welding, solvent welding, or brazing techniques. It is particularly suitable for manufacturing anti-oxidation components that bear low loads at temperatures up to 1100°C.
Inconel 600 (N06600) Chemical Composition
| C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≥ | Ni≥ | Mo≥ | Cu≤ |
|---|---|---|---|---|---|---|---|---|
| 0.15 | 0.50 | 1.00 | 0.040 | 0.015 | 14.0-17.0 | 72.0 | - | 0.50 |
| Others | N≤ | Al≤ | Ti≤ | Fe≤ | Co≤ | V≤ | W≤ | Nb+Ta |
|---|---|---|---|---|---|---|---|---|
| - | 0.35 | 0.50 | 6.0-10.0 | - | - | - | ≤1.00 | - |
Note: Standard BZ-44-9003B-0 for aerospace materials specifies ω (C) ≤ 0.10%, ω (P) ≤ 0.020%, and ω (Nb) ≤ 1.00%.
Product Specifications
Regular Dimensions (mm)
Cold Rolled Sheet:
- 0.5 × 1219 × C
- 1.0 × 1219 × C
- 1.5 × 1219 × C
- 2.0 × 1219 × C
- 2.5 × 1219 × C
- 3.0 × 1219 × C
Hot Rolled Sheet:
- 3.0 × 1500 × C
- 4.0 × 1500 × C
- 5.0 × 1500 × C
- 6.0 × 1500 × C
- 8.0 × 1500 × C
- 10 × 1500 × C
- 12 × 1500 × C
- 14 × 1500 × C
- 16 × 1500 × 6000
- 18 × 1500 × 6000
- 20 × 1500 × 6000
- 25 × 1500 × 6000
- 30 × 1500 × 6000
Length: Available according to your specific requirements
