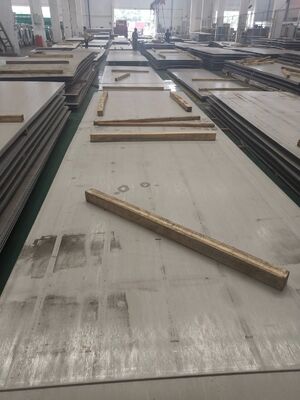

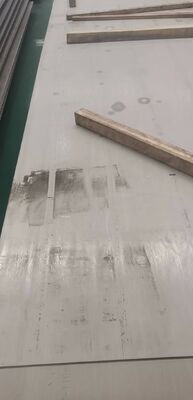

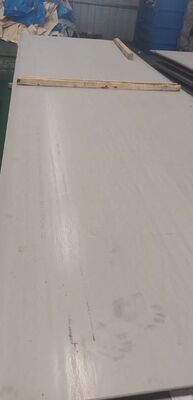

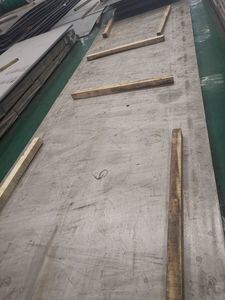

317L Stainless Steel Plate with SGS BV Certificate, 3.0-120mm Thickness, and 1800-2000mm Width

Certification	AISI
Minimum Order Quantity	50 kg
Price	US $4.35-8.85 / kg

Product Details

Model NO.	317L	Shape	Round
Technique	Hot Rolled	Surface Treatment	Polished
Specification	12202440, 15003000, 15006000, 20006000mm	Thickness	3.0mm - 120mm
Width	500-2000mm	Tolerances Thickness	±0.02mm
Tolerances Width	±6.00mm	Density	7.93 G/cm3
Yield Strength	>=176 Mpa	Tensile Strength	>=480 Mpa
Elongation	>=40%	Hardness	<=200 HV
Chemical Composition	C<=0.030, Mn<=2.00, Si<=1.00, P<=0.045, S<=0.030, Cr 18.0~20.0, Ni 11.0~15.0, Mo 3.0~4.0
Highlight	SGS BV Certificate 317L Stainless Steel Plate , 3.0-120mm Thickness Ferrite Stainless Steel Plate , 1800-2000mm Width TISCO BAOSTEEL Stainless Steel Plate

Leave a Message

Product Description

317L Stainless Steel Plate with SGS & BV Certification

Product Overview

Material: 317L Ferrite Stainless Steel

Thickness: 3.0mm - 120mm

Width: 1800mm and 2000mm

Standard Sizes: 1500×3000mm, 1500×6000mm (Custom sizes available)

Surface Treatment: NO.1 Original, NO.4 Mirror

Certification: SGS, BV

Brands: TISCO, BAOSTEEL, AUTO KUMPO

Material Specifications

Property	Specification
Material Type	Ferrite Stainless Steel (Magnetic)
Standards	AISI, ASTM, EN, GB, DIN, JIS
Technology	Cold Rolled or Hot Rolled
Thickness Range	0.2-120mm (tolerances ±0.02mm)
Width Range	500-2000mm (tolerances ±6.00mm)
Density	7.93 g/cm³

Mechanical Properties

Yield Strength (YS)	Tensile Strength (TS)	Elongation (EL)	Hardness (HV)
≥176 Mpa	≥480 Mpa	≥40%	≤200

Chemical Composition

C	Mn	Si	P	S	Cr	Ni	Mo
≤0.030	≤2.00	≤1.00	≤0.045	≤0.030	18.0-20.0	11.0-15.0	3.0-4.0

Features and Applications

317L (00Cr19Ni13Mo3, UNS S31726) is a molybdenum-based austenitic stainless steel alloy that offers superior chemical corrosion resistance compared to conventional chromium-nickel austenitic stainless steels like 304 alloy. This low-carbon (L-grade) material provides enhanced ductility, stress corrosion resistance, compressive strength, and high-temperature performance while resisting sensitization during welding and heat treatment processes.

Primary Applications

Compared to 316L, 317L steel demonstrates excellent water resistance and superior resistance to stress corrosion cracking (SCC), making it ideal for chemical ships, chemical products, reactors, and other chemical equipment requiring high corrosion resistance.
