1.4571 Stainless Steel Plate Heat Resistant Cold Rolled Bright Surface S32168 Alloy 321 SS Plate
Product Details
| Model Number | 321 S32168 1.4571 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness Range | 0.1 To 100 Mm |
| Width Range | 10-2500mm | Length Range | 2m, 2.44m, 3m, Or As Required |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard | Yield Strength | 30 Ksi |
| Tensile Strength | 75 Ksi | Elongation | 40% |
| Density | 0.286 Lb/in3 | Modulus Of Elasticity | 28.0 X 106 Psi |
| Thermal Conductivity | 9.3 Btu/ft Hr ˚F | ||
| Highlight | Heat Resistant Stainless Steel Plate,Cold Rolled SS Plate,Bright Surface 321 Stainless Steel Plate |
||
Product Description
Grade 321 / 321H Stainless Steel Sheet UNS S32100
321 stainless steel is a titanium-stabilized grade specifically designed for service in the 1000-1600°F temperature range. For optimal performance at temperatures up to 1600°F, a stabilizing treatment at 1550-1650°F followed by air cooling is recommended to provide maximum resistance to intergranular corrosion and polythionic acid stress corrosion cracking.
This grade is readily weldable using all common methods, including submerged arc welding. Appropriate weld fillers include AWS ER347 bare wire and E347 covered electrodes. With a machinability rating of 45% relative to AISI B1112, 321 stainless steel offers similar machining characteristics to 304 stainless steel.
Available Product Forms
Sheet, plate, coil, strip, wire, pipe, tube, bar, profile, round, flat, square, and hexagonal forms.
Specifications and Standards
| Specification | Details |
|---|---|
| Grade | 321/321H |
| Primary Standards | ASTM A240, ASME SA240, BS EN 10028-7, BS EN 10088-2, BS EN 10088-4 |
| Additional Certifications | EN 10088/2, EN 10088/4, CE Marking, NACE MR 0175/ISO 15156 |
Product Dimensions and Specifications
| Parameter | Specification |
|---|---|
| Product Type | 321 Stainless Steel Sheet, 321 Stainless Steel Plate |
| Thickness Range | 0.1 to 100 mm |
| Width Range | 10-2500 mm |
| Length Options | 2m, 2.44m, 3m, or as required |
| Available Finishes | Satin, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, etc. |
| Hardness Options | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
Detailed Dimension Ranges
Width: 600mm - 2030 mm
Thickness: 0.1 - 120.0 mm
Length: 300 - 6000 mm (Maximum 18000 mm)
Thickness: 0.1 - 120.0 mm
Length: 300 - 6000 mm (Maximum 18000 mm)
Typical Applications
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment
International Grade Equivalents
| Standard | Equivalent Designation |
|---|---|
| ASTM | A182 F321, A240 S32100, A312 TP321, A479 S32100 |
| JIS | SUS321, SUS321TP, SUS321TPY |
| EN | 1.4541, X6CrNiTi18-10 |
| GOST | 08X18H10T, 12X18H10T |
| UNS | S32100 |
| DIN | 1.4541, 1.4544 |
Chemical Composition
| Element | Content (%) |
|---|---|
| Carbon | 0.08 max |
| Chromium | 17.0-19.0 |
| Nickel | 9.0-12.0 |
| Manganese | 2.00 max |
| Silicon | 0.75 max |
| Titanium | 5(C+N) min / 0.70 max |
Mechanical Properties
| Property | Value |
|---|---|
| Yield Strength (min) | 30 ksi |
| Tensile Strength (min) | 75 ksi |
| Elongation (min) | 40% |
| Hardness (max) | 95 Rb |
Physical Properties
| Property | Value |
|---|---|
| Density | 0.286 lb/in³ |
| Modulus of Elasticity | 28.0 x 10⁶ psi |
| Coefficient of Thermal Expansion | 9.2 x 10⁻⁶ /˚F |
| Thermal Conductivity | 9.3 Btu/ft hr ˚F |
Alternative Grade Comparison
| Alternative Grade | Application Consideration |
|---|---|
| 304L | For resistance to intergranular corrosion without high-temperature strength requirements |
| 304H | Suitable for mild high-temperature environments up to 800°C |
| 310 | For operating temperatures up to 1100°C |
| S30815 (253MA) | For operating temperatures up to 1150°C |

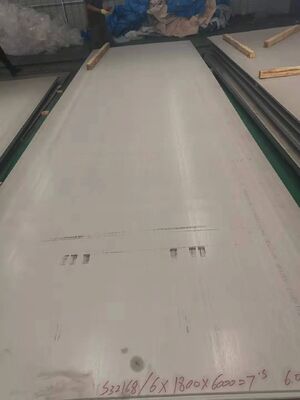

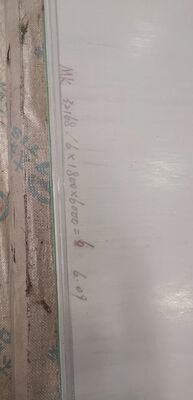

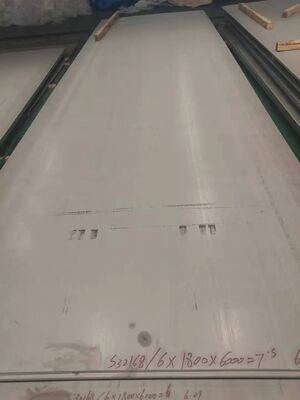

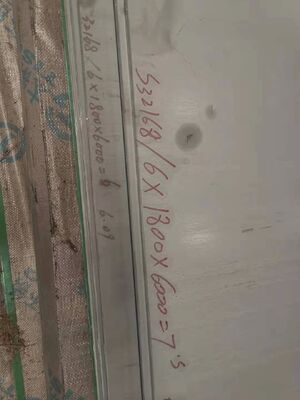

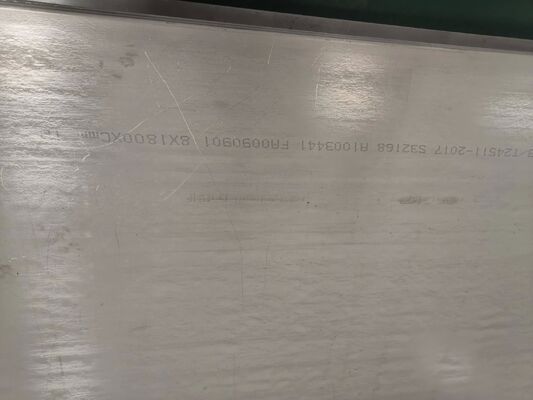

Product Images
