ASME SA240 2000mm Width Alloy 321 Heat Resistant Stainless Steel Plate S32168
Product Details
| Model Number | 321 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 50000kgs |
| Thickness Range | 0.1 To 100 Mm | Width Range | 10-2500mm |
| Length Range | 2m, 2.44m, 3m, Or As Required | Hardness Options | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| Density | 0.286 Lb/in3 | Modulus Of Elasticity | 28.0 X 106 Psi |
| Coefficient Of Thermal Expansion | 9.2 X 10-6 /˚F | Thermal Conductivity | 9.3 Btu/ft Hr ˚F |
| Electrical Resistivity | 28.4 Microohm-in | ||
| Highlight | 2000mm Width Stainless Steel Plate,Heat Resistant Alloy 321 Plate,ASME SA240 S32168 Plate |
||
Product Description
ASME SA240 2000mm Width Alloy 321/S32168 Heat Resistant Stainless Steel Plate
Grade 321 / 321H Stainless Steel Sheet UNS S32100 Overview
Grade 321 stainless steel is a titanium-stabilized alloy designed for service in the 1000-1600°F temperature range. For optimal resistance to intergranular corrosion and polythionic acid stress corrosion cracking at temperatures up to 1600°F, a stabilizing treatment at 1550-1650°F followed by air cooling is recommended.
This grade is readily weldable using all common methods, including submerged arc welding, with appropriate fillers such as AWS ER347 bare wire and E347 covered electrodes. With a machinability rating of 45% relative to AISI B1112, it offers similar machining characteristics to 304 stainless steel.
Available Forms: Sheet, plate, coil, strip, wire, pipe, tube, bar, profile, round, flat, square, hexagonal
Specifications and Dimension Ranges
- Grade: 321/321H
- Standards: ASTM A240, ASME SA240, BS EN 10028-7, BS EN 10088-2, BS EN 10088-4
- Certifications: EN 10088/2, EN 10088/4, CE Marking, NACE MR 0175/ISO 15156
| Product Type | 321 Stainless Steel Sheet, 321 Stainless Steel Plate |
|---|---|
| Specification | ASTM A240 / ASME SA240 |
| Tolerances | EN 10258/ DIN 59381 |
| International Standards | ASTM A480, ASTM A959, ASME IID, EN ISO 9445, EN ISO 18286, EN 10051, EN 10088-1, ISO 15510 |
| Dimensions | Cold rolled: 0.5-6.4 mm, Hot rolled: 3.0-10.0 mm |
| Thickness | 0.1 to 100 mm |
| Width | 10-2500mm |
| Length | 2m, 2.44m, 3m, or as required |
| Finish | Satin, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), and various surface treatments |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| Forms / Shapes | Plate, Sheet, Coils, Foils, Strip, Flats, and various manufactured forms |
Dimension Ranges
- Width: 600mm - 2030mm
- Thickness: 0.1mm - 120.0mm
- Length: 300mm - 6000mm (Maximum 18000mm)
Surface Finish Options
No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating, color-coating, embossing
Applications
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment
International Equivalents
| Standard | Equivalent Designations |
|---|---|
| ASTM | A182 F321, A240 S32100, A312 TP321, A193 B8T, and numerous other specifications |
| JIS | SUS321, SUS321TPY, SUS321TP, SUS321TF, SUS321TB |
| EN | X6CrNiTi18-10, 1.4541 |
| GOST | 06Ch18N10T, 08X18H10T, 12X18H10T |
| GB | 0Cr18Ni11Ti |
| UNS | S32100 |
| DIN | 1.4541, 1.4544 |
| AFNOR | Z6CNT18-10, Z10CNT18-11 |
| BS | 321S12, 321S51, S524, S526 |
Technical Data
Chemical Composition (wt%)
| Element | 321 |
|---|---|
| Carbon | 0.08 |
| Chromium | 17.0-19.0 |
| Nickel | 9.0-12.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Nitrogen | 0.10 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Titanium | 5(C+N) min / 0.70 max |
Mechanical Properties
| Property | 321 |
|---|---|
| Yield Strength, min. (ksi) | 30 |
| Tensile Strength, min. (ksi) | 75 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 95 |
Physical Properties
| Property | 321 Data |
|---|---|
| Density, lb/in³ | 0.286 |
| Modulus of Elasticity, psi | 28.0 x 10⁶ |
| Coefficient of Thermal Expansion, 68-212˚F, /˚F | 9.2 x 10⁻⁶ |
| Thermal Conductivity, Btu/ft hr ˚F | 9.3 |
| Specific Heat, Btu/lb ˚F | 0.12 |
| Electrical Resistivity, Microohm-in | 28.4 |
Grade Specification Comparison
| Grade | UNS No | British BS | Euronorm | Swedish SS | Japanese JIS |
|---|---|---|---|---|---|
| 321 | S32100 | 321S31 | 1.4541 | 2337 | SUS 321 |
| 321H | S32109 | 321S51 | 1.4878 | - | SUS 321H |
| 347 | S34700 | 347S31 | 1.4550 | 2338 | SUS 347 |
Alternative Grades
| Grade | Application Considerations |
|---|---|
| 304L | Preferred when resistance to intergranular corrosion is required without need for high-temperature strength |
| 3CR12 | Suitable for mild high-temperature environments up to approximately 600°C |
| 304H | Appropriate for mild high-temperature environments up to approximately 800°C |
| 310 | Recommended for operating environments up to 1100°C, exceeding 321/321H capabilities |
| S30815 (253MA) | Ideal for environments up to 1150°C, beyond 321/321H temperature limits |

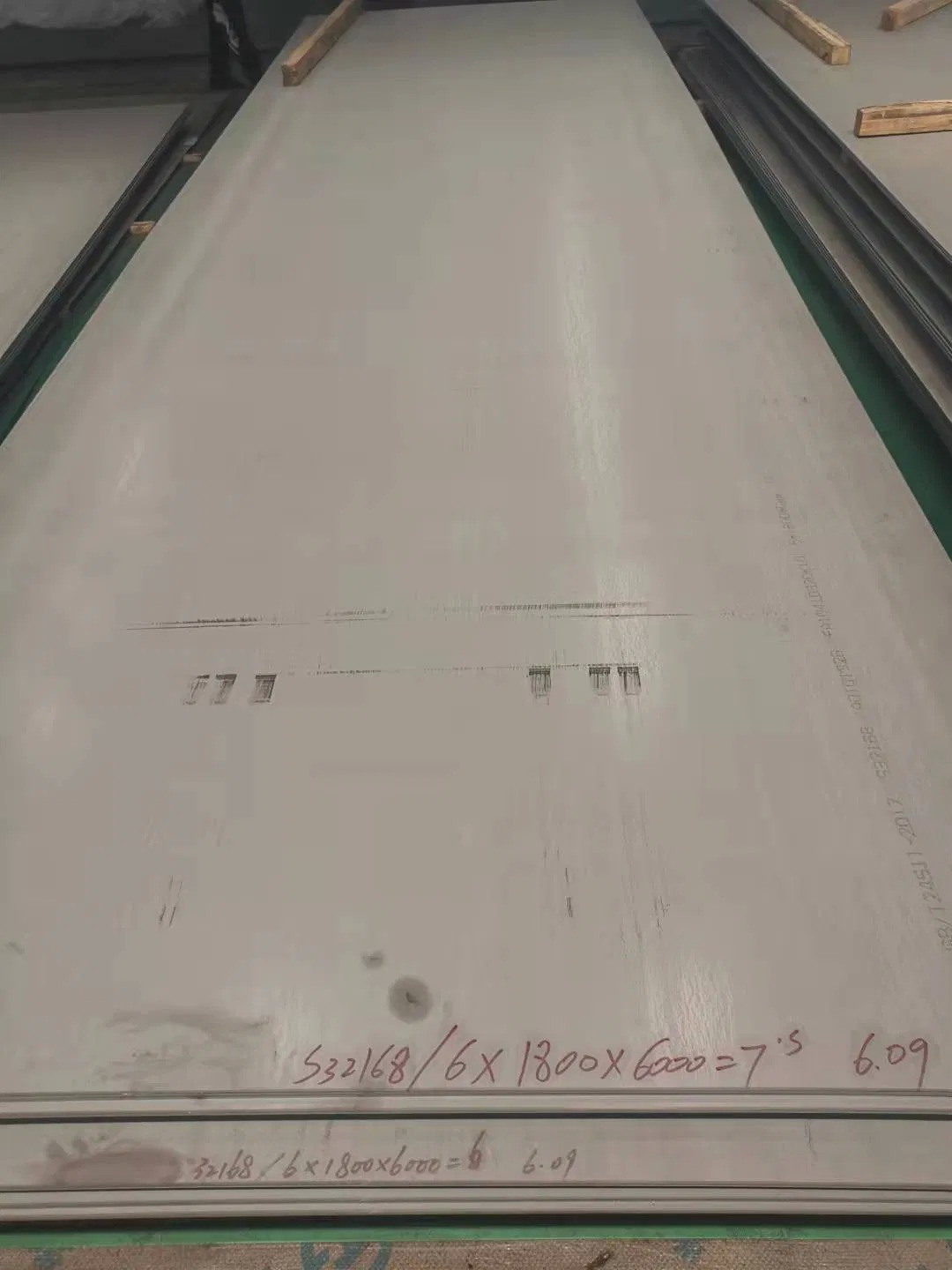

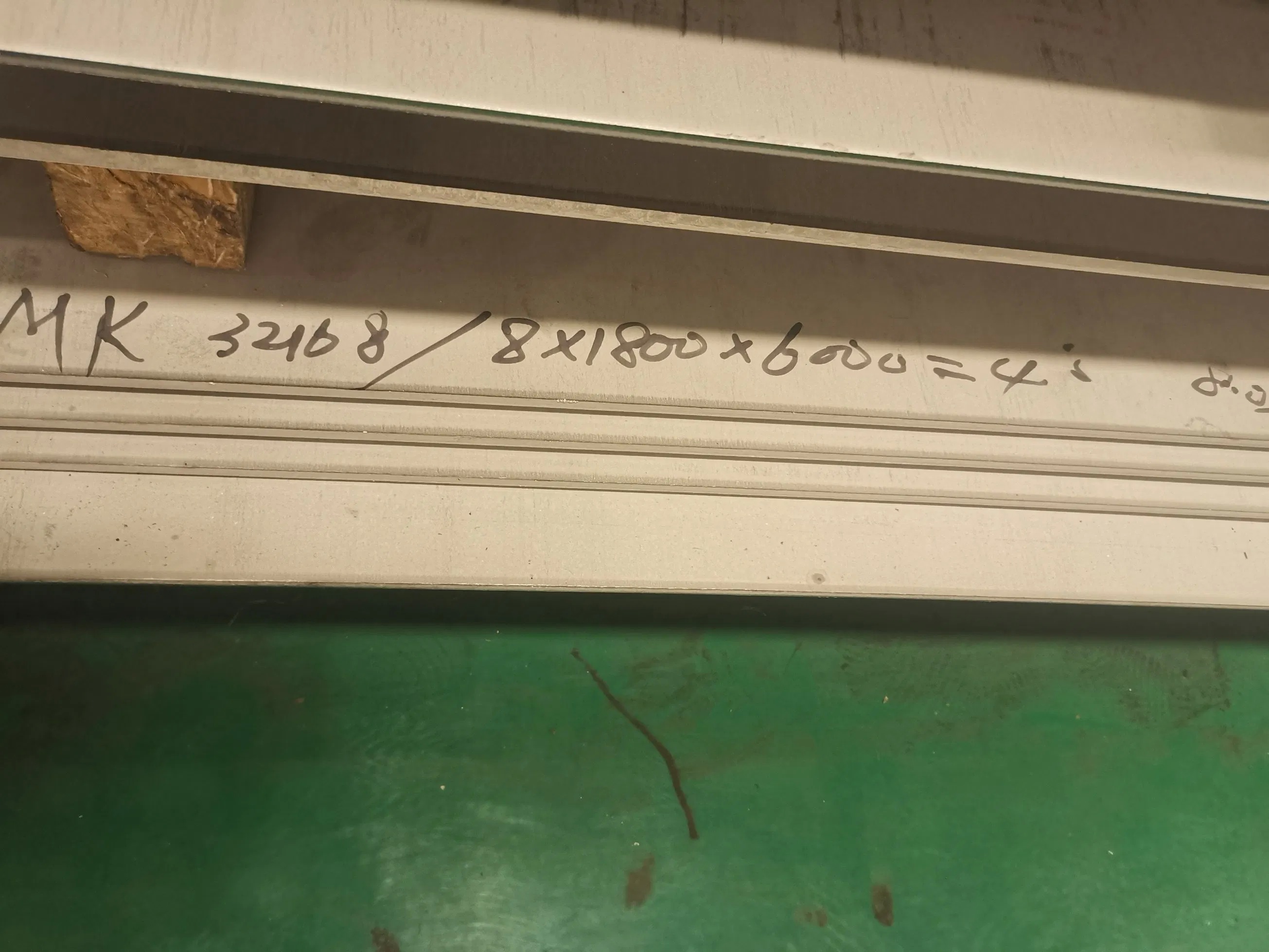

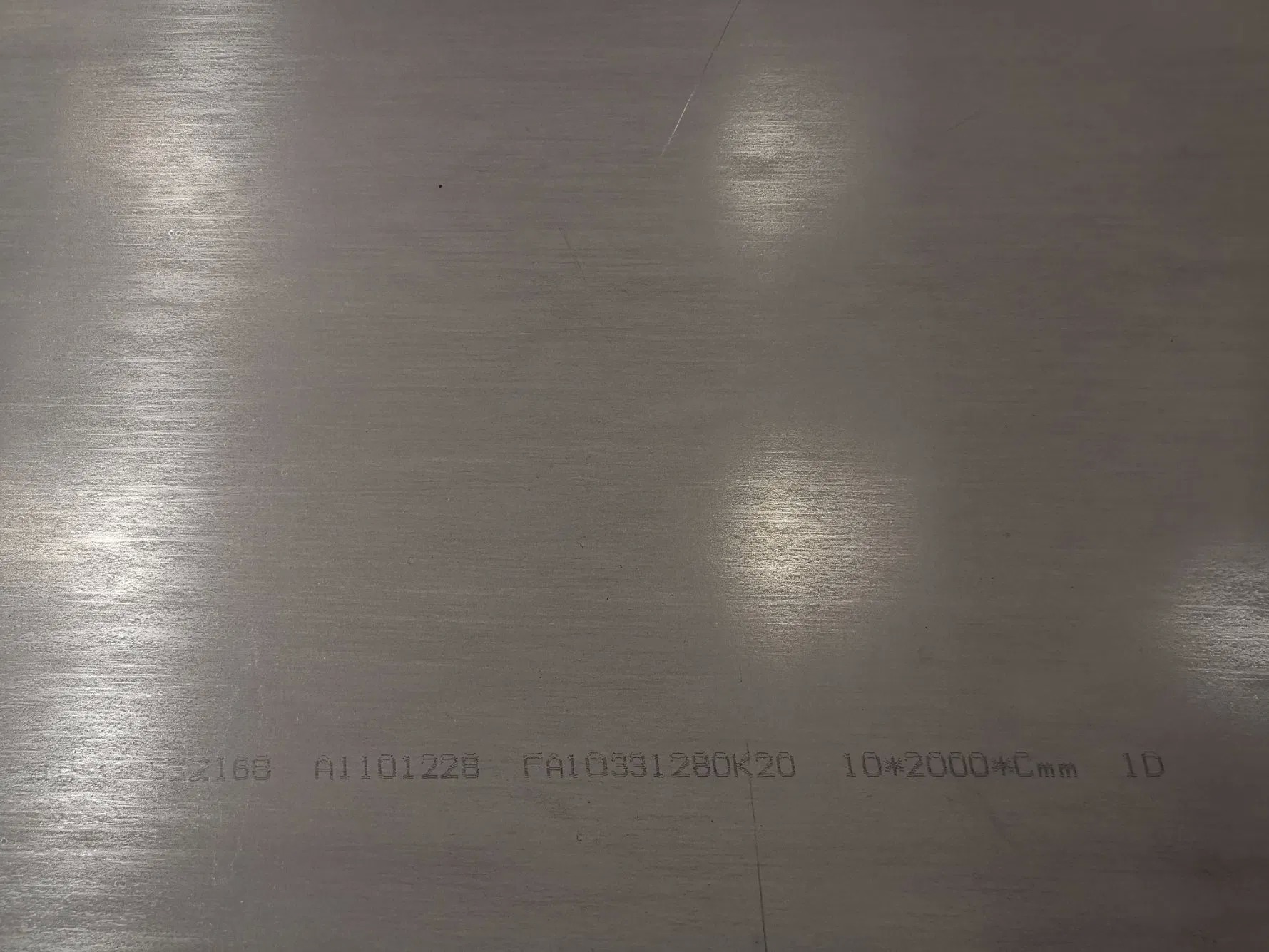

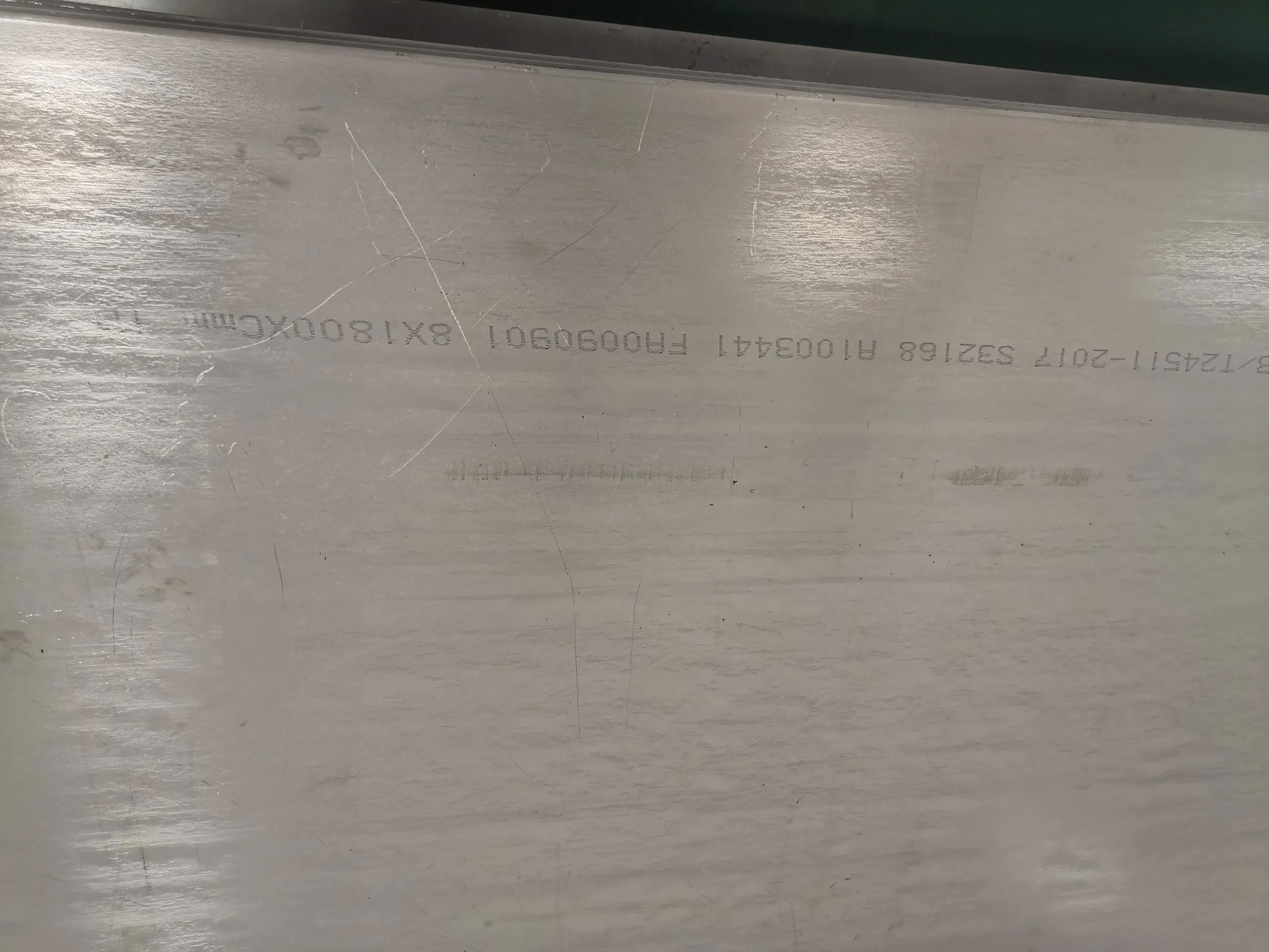

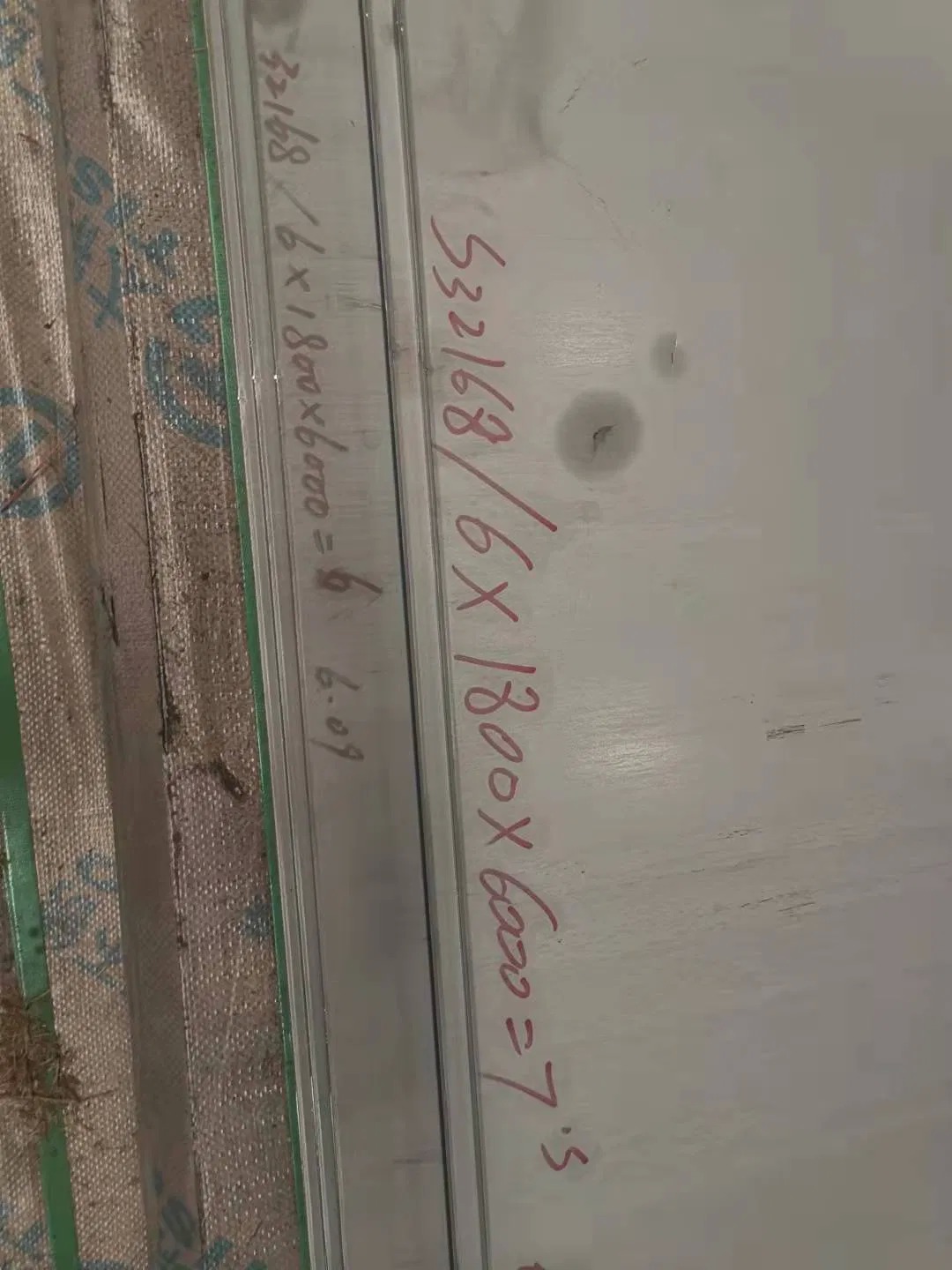

Product Images
