Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Product Details
| Model NO. | 321 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 50000kgs |
| Thickness Range | 0.1 To 100 Mm | Width Range | 10-2500mm |
| Length Range | 2m, 2.44m, 3m, Or As Required | Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| Yield Strength | 30 Ksi | Tensile Strength | 75 Ksi |
| Elongation | 40% | Density | 0.286 Lb/in3 |
| Modulus Of Elasticity | 28.0 X 106 Psi | ||
| Highlight | Cold Rolled Stainless Steel Plate,Bright Surface Stainless Steel Plate,ASTM A240 ASME SA240 321 Stainless Steel Plate |
||
Product Description
ASTM A240 ASME SA240/SA240m S32168 321 Stainless Steel Plate
Grade 321 / 321H Stainless Steel Sheet UNS S32100 Overview
321 stainless steel is a titanium-stabilized grade specifically designed for service in the 1000-1600°F temperature range. For optimal performance at temperatures up to 1600°F, a stabilizing treatment at 1550-1650°F followed by air cooling is recommended to provide maximum resistance to intergranular corrosion and polythionic acid stress corrosion cracking.
This grade is readily weldable using all common methods, including submerged arc welding. Appropriate weld fillers include AWS ER347 bare wire and E347 covered electrodes. With a machinability rating of 45% relative to AISI B1112, 321 stainless steel offers similar machining characteristics to 304 stainless steel.
Available Product Forms
Sheet, plate, coil, strip, wire, pipe, tube, bar, profile, round, flat, square, hexagonal
Specifications and Dimensions
Standards and Certifications
- Grade 321/321H
- ASTM A240, ASME SA240, BS EN 10028-7, BS EN 10088-2 and BS EN 10088-4
- EN 10088/2, EN 10088/4 and CE Marking
- NACE MR 0175/ISO 15156 Certification
| Product Type | 321 Stainless Steel Sheet, 321 Stainless Steel Plate |
|---|---|
| Specification | ASTM A240 / ASME SA240 |
| Tolerances | EN 10258/ DIN 59381 |
| International Standards | ASTM A480, ASTM A959, ASME IID, EN ISO 9445, EN ISO 18286, EN 10051, EN 10088-1, ISO 15510 |
Dimension Ranges
| Width | 600mm - 2030mm |
|---|---|
| Thickness | 0.1mm - 120.0mm |
| Length | 300mm - 6000mm (Maximum 18000mm) |
Available Finishes
No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating, color-coating, embossing
Other Trade Names
SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet
Applications
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment
Technical Data
Chemical Composition (wt%)
| Element | 321 |
|---|---|
| Carbon | 0.08 |
| Chromium | 17.0-19.0 |
| Nickel | 9.0-12.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Nitrogen | 0.10 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Titanium | 5(C+N) min / 0.70 max |
Mechanical Properties
| Property | 321 |
|---|---|
| Yield Strength, min. (ksi) | 30 |
| Tensile Strength, min. (ksi) | 75 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 95 |
Physical Properties
| Property | 321 Data |
|---|---|
| Density, lb/in³ | 0.286 |
| Modulus of Elasticity, psi | 28.0 x 10⁶ |
| Coefficient of Thermal Expansion, 68-212˚F, /˚F | 9.2 x 10⁻⁶ |
| Thermal Conductivity, Btu/ft hr ˚F | 9.3 |
| Specific Heat, Btu/lb ˚F | 0.12 |
| Electrical Resistivity, Microohm-in | 28.4 |
International Grade Equivalents
| Grade | UNS No | British | Euronorm | Swedish SS | Japanese JIS |
|---|---|---|---|---|---|
| 321 | S32100 | 321S31 | 1.4541 | 2337 | SUS 321 |
| 321H | S32109 | 321S51 | 1.4878 | - | SUS 321H |
| 347 | S34700 | 347S31 | 1.4550 | 2338 | SUS 347 |
Alternative Grades
| Grade | Selection Criteria |
|---|---|
| 304L | When resistance to intergranular corrosion is required without high-temperature strength needs |
| 3CR12 | For mild high-temperature environments up to approximately 600°C |
| 304H | For mild high-temperature environments up to approximately 800°C |
| 310 | For operating environments up to approximately 1100°C |
| S30815 (253MA) | For operating environments up to approximately 1150°C |

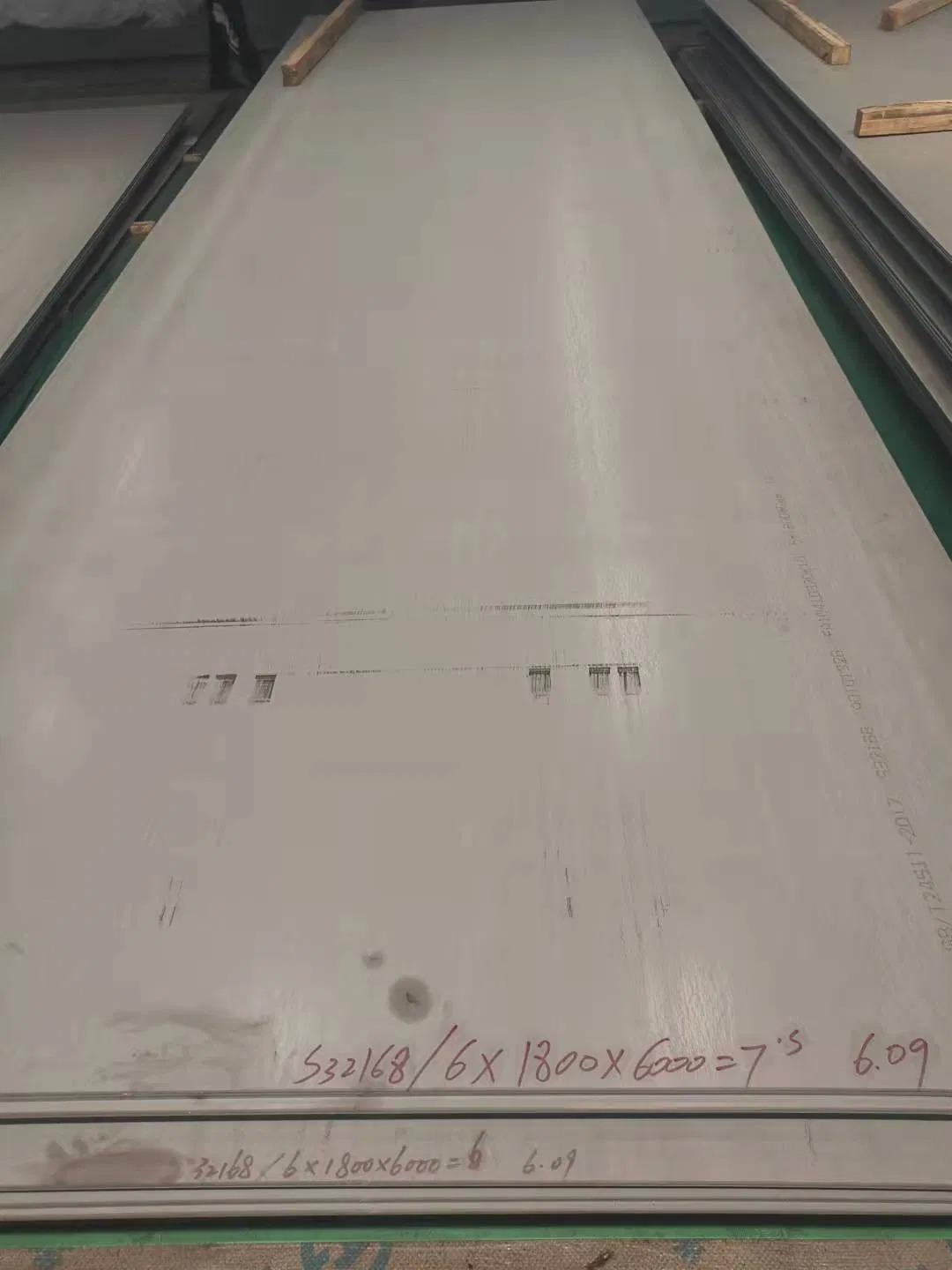

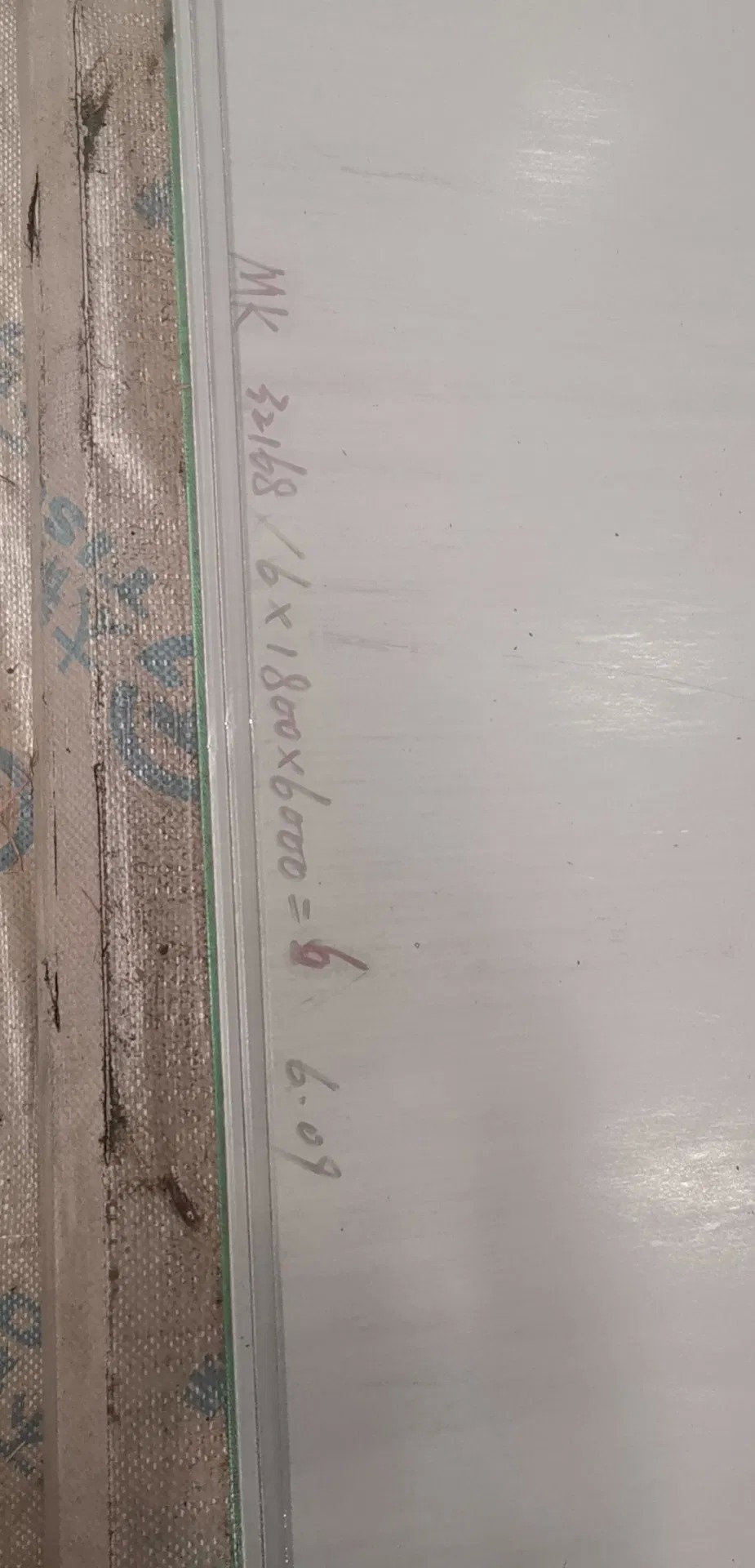

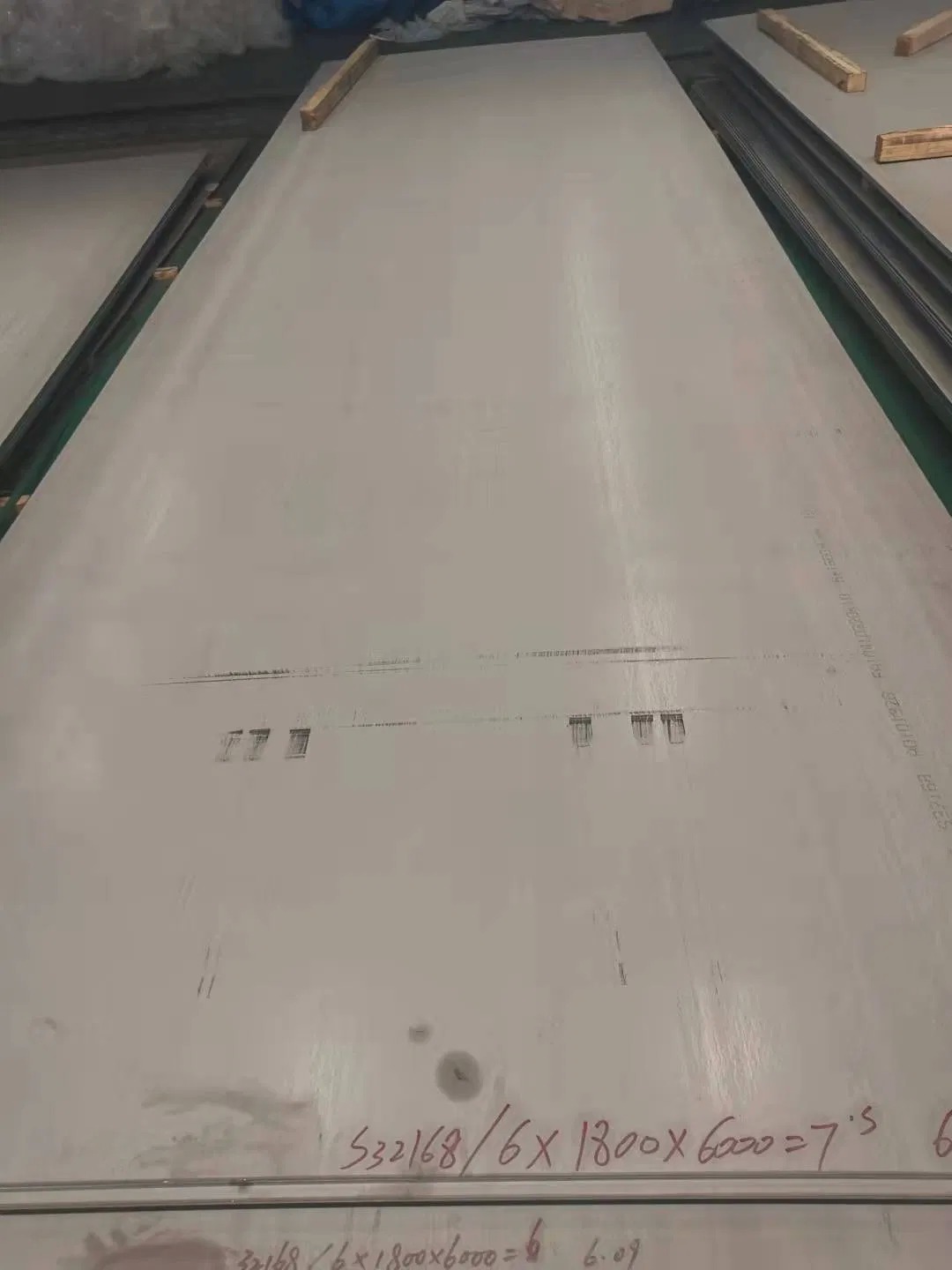

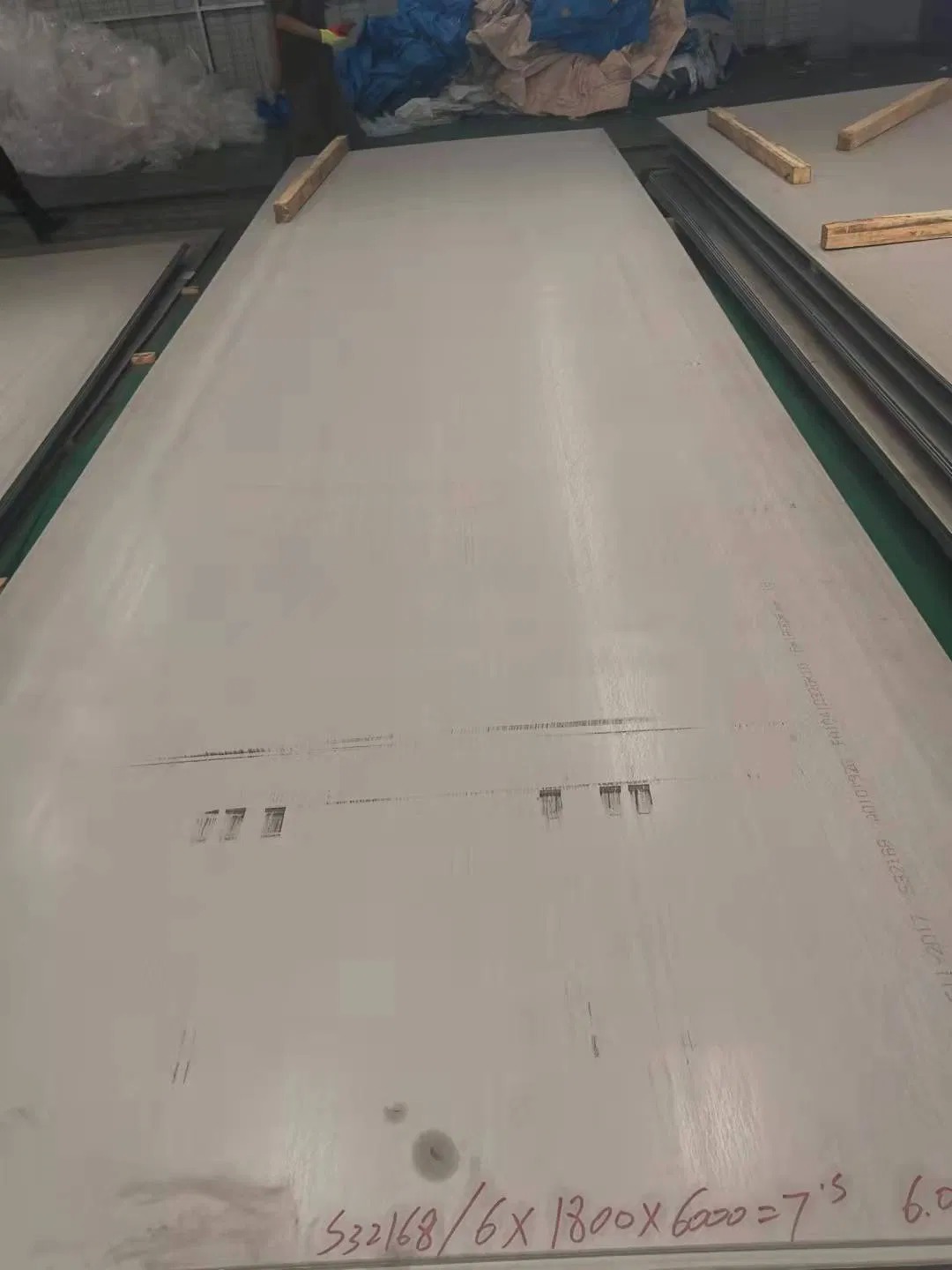

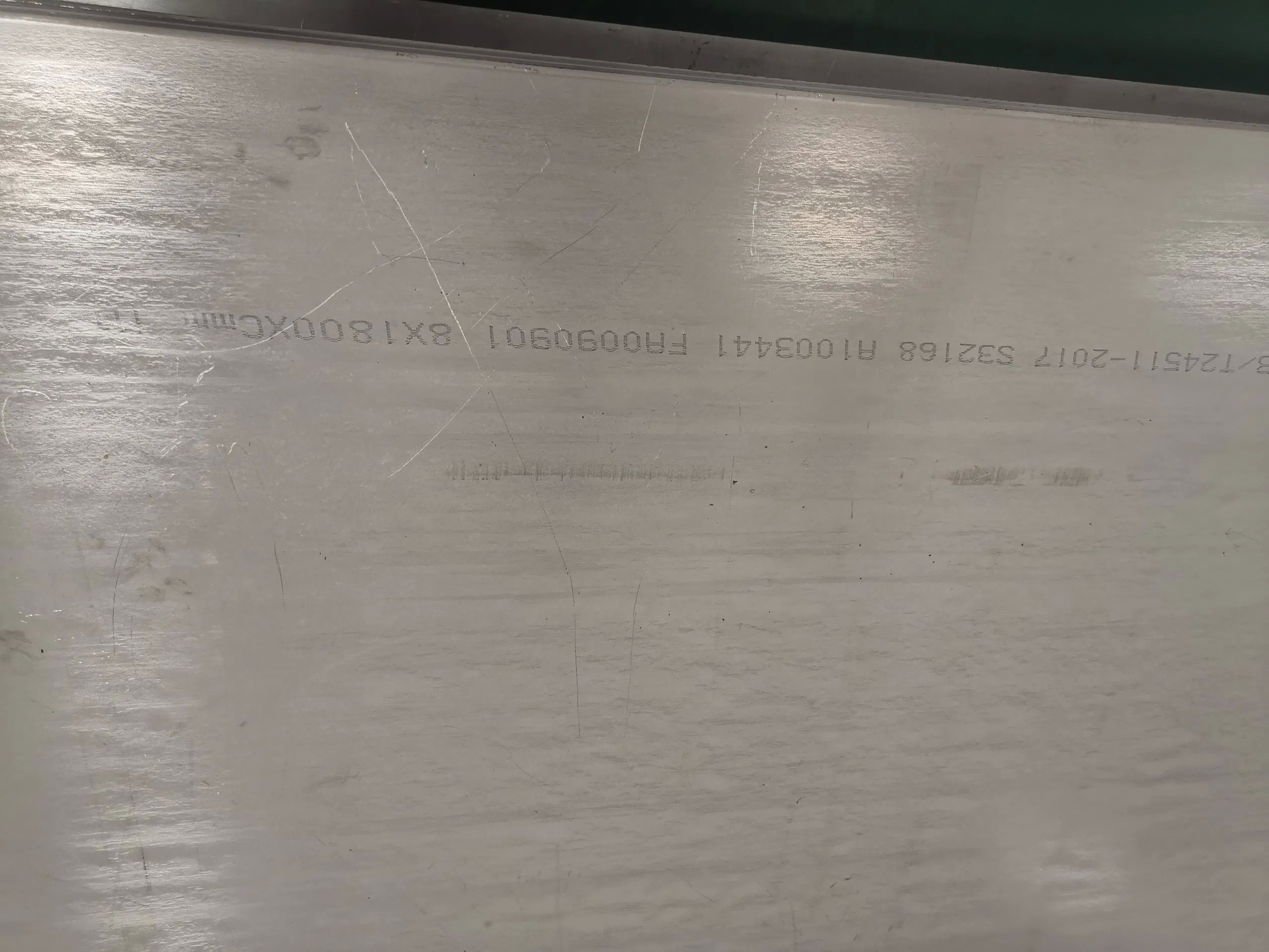

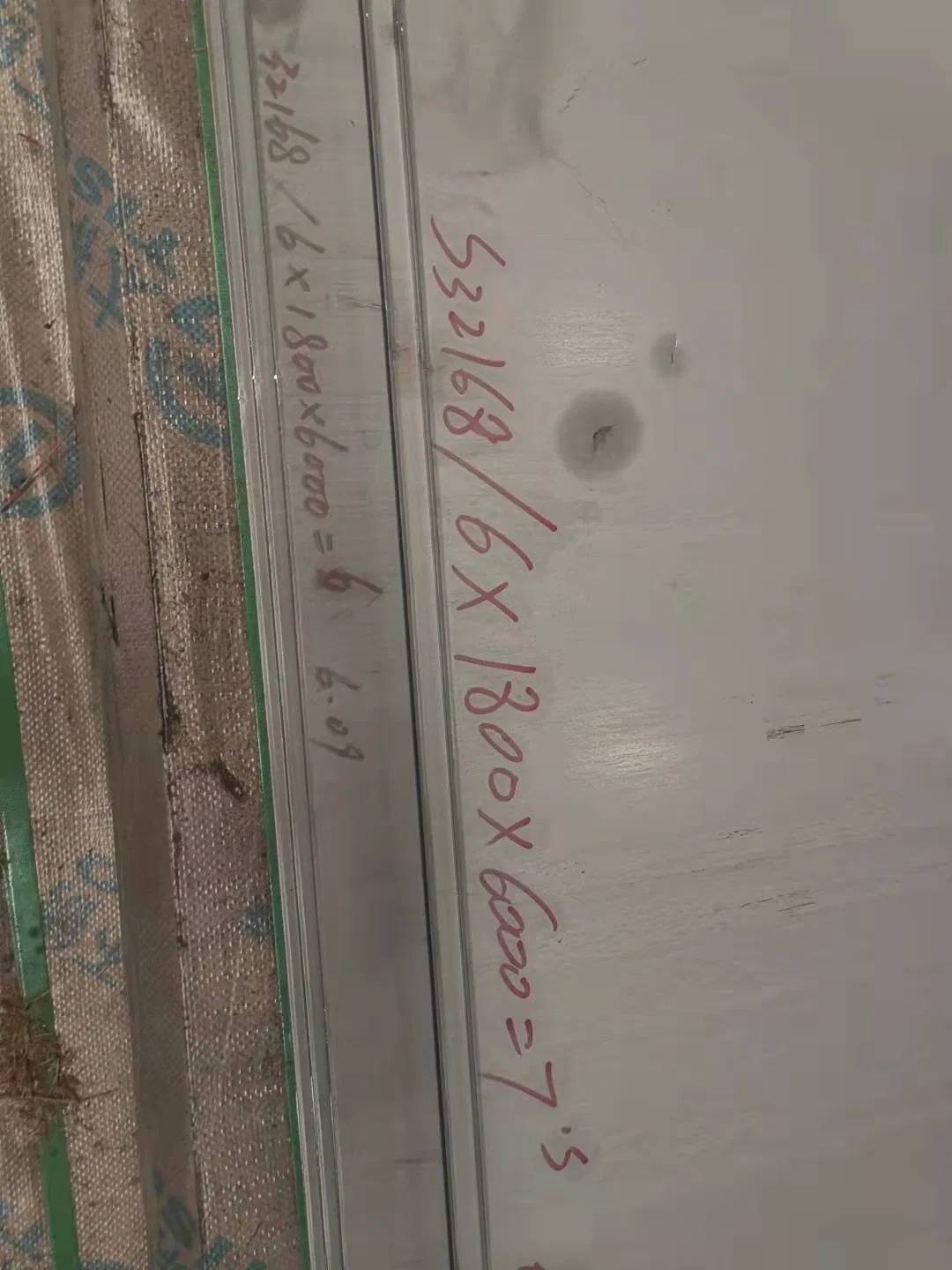

Product Images
