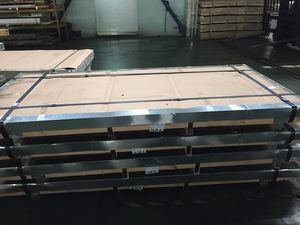

Incoloy 800HT Nickel Alloy Steel Plate High Temperature Resistant UNS N08811 Hot Rolled
Product Details
| Model Number | Incoloy 800HT | Shape | Flat |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Polished |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 500000kgs |
| Nickel Content | 30.0-35.0% | Chromium Content | 19.0-23.0% |
| Iron Content | 39.5 Min% | Carbon Content | 0.06-0.10% |
| Aluminum Content | 0.25-0.60% | Titanium Content | 0.25-0.60% |
| Aluminum + Titanium | 0.85-1.2% | Ultimate Strength | ≥ 550 MPa |
| Elongation | ≥ 35% | ||
| Highlight | High Temperature Resistant Incoloy 800HT Plate,UNS N08811 Nickel Alloy Steel Plate,Hot Rolled High Temperature Resistant Plate |
||
Product Description
Incoloy 800HT Plates, Sheets, Strips & Coils
UNS N08811, 1.4959, Alloy 800HT - High Temperature Resistant Nickel Alloy Steel Plate
Product Specifications
| Place of Origin | Shanghai, China (Mainland) | Type | Nickel plate |
|---|---|---|---|
| Application | Nitrate condenser, Steam heating pipes, etc. | Grade | Ni-Cr-Fe alloy |
| Ni (Min) | 38 | Powder Or Not | Not Powder |
| Ultimate Strength (≥ MPa) | 550 | Elongation (≥ %) | 35 |
| Model Number | Incoloy 800HT |
Packaging & Delivery
| Packaging Details | Wooden Cases |
|---|---|
| Delivery Detail | Delivery time is according to the actual order |
Product Overview
Incoloy 800, 800H, and 800HT are nickel-iron-chromium alloys with excellent strength and superior resistance to oxidation and carburization in high-temperature environments. These nickel steel alloys are similar, with alloy 800H featuring higher carbon content and alloy 800HT containing up to 1.20% aluminum and titanium for enhanced high-temperature performance.
Incoloy 800HT is dual certified (800H/HT) and combines the properties of both forms, making it ideal for high-temperature structural applications. The nickel content provides exceptional resistance to chloride stress-corrosion cracking and prevents embrittlement from sigma phase precipitation.
Available Forms
- Sheet
- Plate
- Bar
- Pipe & Tube (welded & seamless)
- Fittings (flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
- Wire
Chemical Composition
Alloy 800 (UNS N08800) Chemical Composition, %
| Ni | Cr | Fe | C | Al | Ti | Al+Ti |
|---|---|---|---|---|---|---|
| 30.0-35.0 | 19.0-23.0 | 39.5 min | .10 max | .15-.60 | .15-.60 | .30-1.20 |
Alloy 800H (UNS N08810) Chemical Composition, %
| Ni | Cr | Fe | C | Al | Ti | Al+Ti |
|---|---|---|---|---|---|---|
| 30.0-35.0 | 19.0-23.0 | 39.5 min | .05-.10 | .15-.60 | .15-.60 | .30-1.20 |
Alloy 800HT (UNS N08811) Chemical Composition, %
| Ni | Cr | Fe | C | Al | Ti | Al+Ti |
|---|---|---|---|---|---|---|
| 30.0-35.0 | 19.0-23.0 | 39.5 min | .06-.10 | .25-.60 | .25-.60 | 0.85-1.2 |
Key Characteristics
- High temperature strength
- High creep rupture strength
- Resistant to oxidation and carburization in high temperature environments
- Good corrosion resistance in many acidic environments
- Good resistance to many sulfur-containing atmospheres
Note: The chemical composition of Incoloy 800HT will always be within the limits of Incoloy 800H.
Note: The limits of Incoloy 800H may or may not be within the limits of Incoloy 800HT.
Typical Applications
- Ethylene furnace quench boilers
- Hydrocarbon cracking
- Valves, fittings and other components exposed to corrosive attack from 1100-1800° F
- Industrial furnaces
- Heat-treating equipment
- Chemical and petrochemical processing
- Super-heater and re-heaters in power plants
- Pressure vessels
- Heat exchangers
Alloys 800H/HT are widely used in applications involving exposure to corrosive environments and high temperatures, including heat treating equipment, chemical and petrochemical processing, nuclear power plants, and the paper pulp industry.
