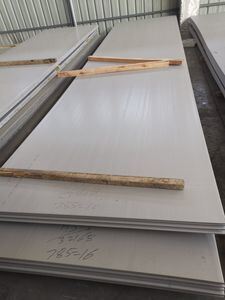

Hot Rolled ASTM A240 420 Stainless Steel Plate with Polished Surface and SS 420 Plate

Certification	ASTM, GB, DIN
Minimum Order Quantity	50 kg
Price	US $1.55-2.65 / kg

Product Details

Model NO.	420	Shape	Flat
Technique	Hot Rolled	Surface Treatment	Polished
Specification	12202440, 15003000, 15006000, 20006000mm	Production Capacity	500000kgs
Density	0.276 Lb/in3	Specific Gravity	7.65
Melting Range	2700-2790°F (1482-1532°C)	Modulus Of Elasticity	29 X 106 Psi (200 GPa)
Thermal Conductivity	14.4 W/m*K At 100°C (212°F)	Specific Heat	0.11 Btu/lb.*°F
Electrical Resistivity	56 Microhm-cm At 20°C (68°F)	Yield Strength	30-42 Ksi (205-290 MPa)
Tensile Strength	65-74 Ksi (450-510 MPa)
Highlight	Hot Rolled Stainless Steel Plate , ASTM A240 SS 420 Plate , Polished Surface 2Cr13 Stainless Steel Plate

Leave a Message

Product Description

Hot Rolled ASTM A240 420 Stainless Steel Plate

Type 420 stainless steel (2Cr13) is a hardenable, martensitic stainless steel that combines superior wear resistance with excellent corrosion resistance. It features high strength, heat resistance, and good ductility, making it well-suited for highly stressed parts in various industrial applications.

Material Properties

Grade 420 stainless steel offers good corrosion resistance in mild atmospheres, steam, and mild chemical environments. This magnetic alloy maintains its properties in both annealed and hardened conditions, making it ideal for applications requiring durability and reliability.

Standard Specifications

UNS S42000, AMS 5504, AMS 5613 (Chemistry only)
ASTM A240, ASTM A276, ASTM A493
ASTM F899, ASME SA240

Chemical Composition

Element	Percent by Weight
Carbon (C)	0.15 max
Manganese (Mn)	1.00 max
Silicon (Si)	1.00 max
Chromium (Cr)	11.50 - 13.50
Nickel (Ni)	0.75 max
Sulfur (S)	0.03 max
Phosphorus (P)	0.04 max

Physical Properties

Density: 0.276 lb/in³
Specific Gravity: 7.65
Melting Range: 2700-2790°F (1482-1532°C)
Modulus of Elasticity: 29 x 10⁶ psi (200 GPa)

Thermal Expansion Coefficient

Temperature Range	Coefficient
20-200°C (68-392°F)	10.5 x 10⁻⁶ cm/cm/°C
20-600°C (68-1112°F)	11.6 x 10⁻⁶ cm/cm/°C

Thermal Conductivity

Temperature	W/m·K	Btu/(hr·ft·°F)
100°C (212°F)	24.9	14.4

Additional Properties

Specific Heat: 0.11 Btu/lb·°F
Electrical Resistivity: 56 microhm-cm at 20°C (68°F)

Mechanical Properties

Property	Value
Yield Strength (0.2% Offset)	30-42 Ksi (205-290 MPa)
Tensile Strength	65-74 Ksi (450-510 MPa)
Elongation (2" / 51 mm)	20-34%
Hardness (HRB)	82-96
Hardening Response (HRC)	38-45
