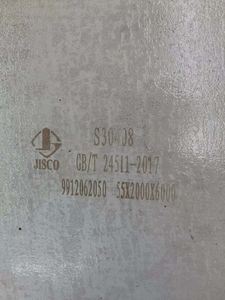

1.4301 Hot Rolled Polished Stainless Steel Plate SS 304 ASTM A240
Product Details
| Model NO. | 1.4301 | Shape | Flat |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Polished |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 500000kgs |
| Width Range | 600mm~2030mm | Thickness Range | 2~120.0mm |
| Length Range | 300~6000mm, Max 18000mm | Surface Finish | No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating, Color-coating, Embossing |
| Density | 8.00 G/cm3 | Melting Point | 1450 °C |
| Modulus Of Elasticity | 193 GPa | Electrical Resistivity | 0.72 X 10-6 Ω.m |
| Thermal Conductivity | 16.2 W/m.K | ||
| Highlight | 1.4301 Stainless Steel Plate,Hot Rolled SS 304 Plate,Polished ASTM A240 Plate |
||
Product Description
1.4301 Stainless Steel Plate ASTM A240 SS 304 Plate
304 stainless steel is the original "18-8" stainless alloy, produced in greater quantity than any other austenitic stainless steel. It provides useful resistance to corrosion in environments ranging from moderately reducing to moderately oxidizing. Through controlled nitrogen addition, 304L commonly meets the mechanical properties of standard 304, resulting in most products being dual certified as 304/304L.
Available Product Forms
Sheet, plate, coil, strip, wire, pipe, tube, bar, profile, round, flat, square, hexagonal
304/304L Stainless Steel Plates Specification
Standards & Specifications
AMS 5511, AMS 5513, AMS 5639, AMS 5647, ASME SA 240, ASME SA 312, ASME SA 479, ASTM A 240, ASTM A 276, ASTM A 276 Condition A, ASTM A 276 Condition S, ASTM A 312, ASTM A 479, EN 1.4301, UNS S30400, UNS S30403, W. NR./EN 1.4301, W. NR./EN 1.4307, Werkstoff 1.4301, Werkstoff 1.4307
Dimension Ranges
- Width: 600mm - 2030mm
- Thickness: 2mm - 120.0mm
- Length: 300mm - 6000mm (Maximum 18000mm)
Surface Finish Options
No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating, color-coating, embossing
Applications
- Food processing and handling
- Firearms production
- Heat exchangers
- Chemical process vessels
- Conveyors
- Architectural applications
AISI 304L Equivalent Standards
| ASTM A213 Grade TP304L | ASTM F593 Grade S30403 | ISO A3 |
| ASTM A249 Grade TP304L | ASTM F593 Grade Alloy Group 1 | GB 00Cr19Ni10 |
| ASTM A269 Grade TP304L | ASTM F594 Grade S30403 | UNS S30403 |
| ASTM A269 Grade 304L | ASTM F594 Grade Alloy Group 1 | DIN 1.4307 |
| ASTM A270 Grade TP304L | ASTM F738M Grade S30403 | DIN G-X2CrNiN18-9 |
| ASTM A276 Grade S30403 | ASTM F738M Grade Alloy Group A1 | AFNOR Z3CN19-09 |
| ASTM A312 Grade TP304L | ASTM F836M Grade S30403 | EN X2CrNi18-9 |
| ASTM A312 Grade 304L | ASTM F836M Grade Alloy Group A1 | EN 1.4307 |
| ASTM A336 Grade F304L | ASTM F837 Grade S30403 | GOST 03Ch18N11 |
| ASTM A358 Grade A240 Type 304L | ASTM F837 Grade Property Class A1 | DIN 1.4309 |
| ASTM A403 Grade CR304L | ASTM F879 Grade S30403 | BS 304C12 |
| ASTM A403 Grade 304L | ASTM F880 Grade S30403 | JIS SCS13 |
| ASTM A403 Grade WP304L | DIN 1.4306 | EN GX2CrNi19-11 |
| ASTM A409 Grade TP304L | DIN X2CrNi19-11 | EN 1.4309 |
| ASTM A479 Grade S30403 | DIN 19Cr11Ni | UNS J92500 |
| ASTM A511 Grade MT304L | AFNOR Z3CN18-10 | EN X2CrNi19-11 |
| ASTM A554 Grade MT304L | BS 304S11 | EN 1.4306 |
| ASTM A632 Grade TP304L | SS 2352 | |
| ASTM A688 Grade TP304L | SAE 304L | |
| ASTM A813 Grade TP304L | JIS SUS304L | |
| ASTM A814 Grade TP304L | JIS SCS19 | |
| ASTM A851 Grade TP304L | JIS SCS19A | |
| ASTM A943 Grade TP304L | JIS SUS304LTB | |
| ASTM A959 Grade S30403 | JIS SUS304LTP | |
| ASTM A965 Grade F304L | JIS SUS304LTPY | |
| ASTM F2281 Grade S30403 | JIS SUS304LTBS | |
| ASTM F2281 Type I Class A | JIS SUSF304L |
Chemical Composition (%)
| Element | 304 | 304L | 304H |
|---|---|---|---|
| C | 0.0 - 0.07 | 0.0 - 0.03 | 0.04 - 0.08 |
| Mn | 0.0 - 2.0 | 0.0 - 2.00 | 0.0 - 2.0 |
| Si | 0.0 - 1.00 | 0.0 - 1.00 | 0.0 - 1.0 |
| P | 0.0 - 0.05 | 0.0 - 0.05 | 0.0 - 0.04 |
| S | 0.0 - 0.03 | 0.0 - 0.02 | 0.0 - 0.02 |
| Cr | 17.50 - 19.50 | 17.50 - 19.50 | 17.00 - 19.00 |
| Ni | 8.00 - 10.50 | 8.00 - 10.50 | 8.00 - 11.00 |
| Fe | Balance | Balance | Balance |
| N | 0.0 - 0.11 | 0.0 - 0.11 | 0.0 - 0.10 |
Mechanical Properties
General Mechanical Properties
| Grade | Tensile Strength (MPa) | Proof Stress (MPa) | Elongation A50 mm |
|---|---|---|---|
| 304 | 540 - 750 | 230 Min | 45 Min % |
| 304L | 520 - 700 | 220 Min | 45 Min % |
Plate (8-75mm thick)
| Grade | Tensile Strength (MPa) | Proof Stress (MPa) | Elongation A5 |
|---|---|---|---|
| 304 | 520 - 720 | 210 Min | 45 Min % |
| 304L | 500 - 700 | 200 Min | 45 Min % |
Bar & Section (up to 160mm)
| Grade | Tensile Strength (MPa) | Proof Stress (MPa) | Elongation A50 mm | Hardness Brinell |
|---|---|---|---|---|
| 304 | 500 - 700 | 190 | 45 Min % | 215 Max HB |
| 304L | 500 - 700 | 175 Min | 45 Min % | 215 Max HB |
| 304H | 500 - 700 | 185 Min | 40 Min % | - |
Physical Properties
| Property | Value |
|---|---|
| Density | 8.00 g/cm³ |
| Melting Point | 1450 °C |
| Modulus of Elasticity | 193 GPa |
| Electrical Resistivity | 0.72 x 10⁻⁶ Ω.m |
| Thermal Conductivity | 16.2 W/m.K |
| Thermal Expansion | 17.2 x 10⁻⁶/K |
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | 2B / NO.1 3mm to 10mm 304L Stainless Steel Strip Coil Width 100m for Industry |
| Thickness | Cold rolled: 0.3mm-3mm | Hot rolled: 3.0mm-150mm |
| Width | 1000-2000mm or as customized |
| Length | 1000mm-6000mm |
| Material | Stainless Steel |
| Finish | 2B, BA, HL, Mirror, NO1, NO 4, 8K |
| Standard | ASTM, AISI, DIN, EN, GB, JIS |
| Available Materials | 200 series: 201, 202, 202cu, 204 | 300 series: 301, 302, 303, 304, 304L, 310, 310S, 316, 316L | 400 series: 409, 409L, 410, 420, 430, 431, 439 |
| Brand | TISCO, BAOSTEEL, ZPSS, LISCO, JISCO |
| Application Range | Decoration Industry, Kitchenware, Building, Elevator |
Detailed Applications
Kitchenware, household electrical appliances, building decoration - chosen for low cost, good corrosion resistance, and formability.
- Architecture Building: Surface, Pillar, Window frame, Stair hand-rail
- Kitchen Utensils: Washing machine drum, Gas range stove, Plate, Housewares, Hollowware
- Other Applications: Computer components, Automotive trim
Packing & Delivery
Stainless steel coils are packed with kraft paper, plastic plate, and wooden pallet. Packaging is designed to be strong and avoid damage during transportation, and can be customized according to regulations and customer requests. Product packages are clearly tagged on the outside for easy identification of product and quality information.
Shipping Information
| Parameter | Details |
|---|---|
| MOQ | 1 Ton |
| Price Term | FOB |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 20-30 days after receiving deposit by T/T or L/C |
| Sample | Samples free, express charges borne by customer |
| Packaging | Standard export package with waterproof paper, metal pallet, angle bar protection, and steel strip or as required |
