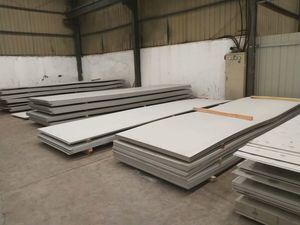

Hot Rolled 314 Stainless Steel Plate Heat Resistant SS Plate 3.0 - 20mm Thickness
Product Details
| Model NO. | 314 | Shape | Flat |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Polished |
| Specification Width | 10-600mm | Production Capacity | 50000kgs |
| Size | 3 - 20mm*1500*6000mm | Surface | NO.1 |
| Tensile Strength | 689 MPa | Yield Strength | 345 MPa |
| Modulus Of Elasticity | 200 GPa | Elongation At Break | 40% |
| Hardness Rockwell B | 85 | Annealing Temperature | 1038-1149°C |
| Forging Temperature | 1093-1232°C | ||
| Highlight | Hot Rolled Stainless Steel Plate,Heat Resistant SS Plate,3.0 - 20mm Thickness 314 Stainless Steel Sheet |
||
Product Description
Hot Rolled 314 Stainless Steel Sheets Plate
310SSi2 Heat Resistant SS Plate 3.0 - 20mm TISCO NO.1
Product Overview
Stainless steel grade 314 offers exceptional high-temperature resistance within the chromium-nickel steels series. The silicon content enhances oxidation and carburization resistance, though prolonged exposure to 649-816°C (1200-1500°F) may cause brittleness.
Product Specifications
| Item | 314 Stainless Steel Sheet |
|---|---|
| Brand | TISCO |
| Size | 3 - 20mm × 1500 × 6000mm |
| Standard | JIS ASTM DIN |
| Certificate | ISO |
| Surface | NO.1 |
| Packing | Standard export sea-worthy packing |
| Shipment | Ocean shipping |
| Lead Time | 10-15 days after deposit |
| Payment | T/T, L/C, Western Union |
Chemical Composition
| Element | Content (%) |
|---|---|
| C ≤ | 0.25 |
| Si ≤ | 1.50-3.00 |
| Mn ≤ | 2.00 |
| P ≤ | 0.045 |
| S ≤ | 0.030 |
| Cr | 23.0-26.0 |
| Ni | 19.0-22.0 |
Mechanical Properties
| Property | Metric | Imperial |
|---|---|---|
| Yield Strength | 272 MPa (≥) | - |
| Tensile Strength | 549 MPa (≥) | - |
| Impact | 13 J | - |
| Elongation | 43% | - |
| Reduction in Cross Section | 42% | - |
| Brinell Hardness (HBW) | 433 | - |
| Tensile Strength | 689 MPa | 99,900 psi |
| Yield Strength | 345 MPa | 50,000 psi |
| Modulus of Elasticity | 200 GPa | 29,000 ksi |
| Elongation at Break | 40% | 40% |
| Hardness, Rockwell B | 85 | 85 |
Equivalent Materials
AFNOR Z 12 CNS 25.20 | DIN 1.4841 | UNI X 16 CrNiSi 25 20 | UNI X 22 CrNi 25 20 | JIS SUS Y 31O
B.S. 310 S 24 | AMS 5522 | AMS 5652 | ASTM A276 | ASTM A314 | ASTM A473 | ASTM A580 | SAE 30314 | SAE J405 (30314)
Manufacturing Process
Grade 314 stainless steel undergoes heat treatment through annealing at 1038-1149°C (1900-2100°F), followed by water quenching or rapid air cooling. Hardening is achieved exclusively through cold working. For optimal machinability, we recommend using coolant and high-speed turning tools.
Forging, flanging, or working requires slow heating to 871°C (1600°F), thorough soaking, followed by rapid heating to 1093-1232°C (2000-2250°F).
Applications
- Radiant tubes
- Equipment for furnaces
- Heat treatment components
- Annealing and carburizing boxes
Related Products
| Products | stainless steel plate |
|---|---|
| Manufacturer | TISCO BAOSTEEL JISCO |
| Thickness | CR: 0.6 - 3.0mm HR: 3.0 - 80mm |
| Size | CR 1219×2438mm HR: 1500×6000mm |
| Surface | CR: 2B HR: No.1 |
| Grade | 304 316L 309S 310S 321 2205 |
| Stock | 300 Tons in stock |
| Loading Port | Shanghai, China |
