ASTM A240 Hot Rolled S30815 253MA Stainless Steel Plate with Polished Surface and High Temperature Resistance

Certification	AISI, ASTM
Minimum Order Quantity	100 kg
Price	US $3.65-8.85 / kg

Product Details

Model NO.	S30815 253Ma	Shape	Flat
Technique	Hot Rolled	Surface Treatment	Polished
Specification	12202440, 15003000, 15006000, 20006000mm	Width Range	600mm~2030 Mm
Thickness Range	0.1~120.0 Mm	Length Range	300~6000 Mm , Max 18000 Mm
Surface Finish	No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating,color-coating ,embossing	Tensile Strength	600 MPa Min
Yield Strength	310 MPa Min	Elongation	40% In 50mm Min
Hardness	Rockwell B (HR B) Max 95, Brinell (HB) Max 217	Density	7800 Kg/m3
Elastic Modulus	200 GPa
Highlight	Hot Rolled Stainless Steel Plate , Polished Surface Stainless Steel Plate , High Temperature Resistance 253MA Stainless Steel Plate

Leave a Message

Product Description

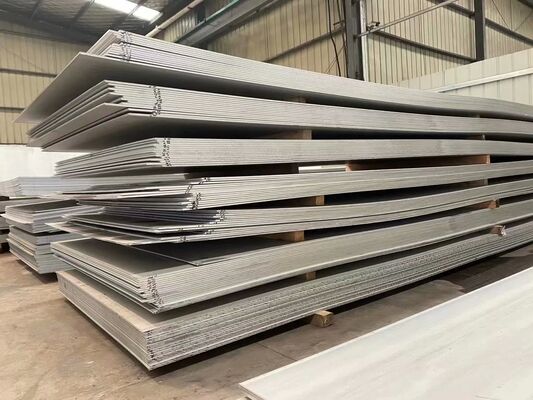

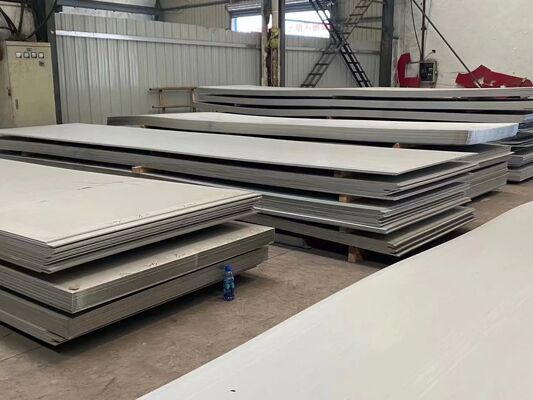

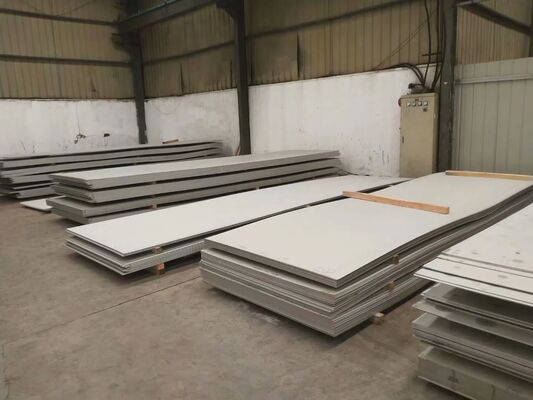

ASTM A240 Hot Rolled S30815 253MA Stainless Steel Plate

UNS S30815 253MA stainless steel plate combines excellent high-temperature service properties with ease of fabrication. This grade resists oxidation at temperatures up to 1150°C and provides superior performance to Grade 310 in carbon, nitrogen, and sulphur-containing atmospheres.

253MA contains relatively low nickel content, offering advantages in reducing sulphide atmospheres compared to high nickel alloys and Grade 310. The inclusion of high silicon, nitrogen, and cerium contents provides excellent oxide stability, high elevated temperature strength, and superior resistance to sigma phase precipitation.

The austenitic structure ensures excellent toughness, even at cryogenic temperatures. Another proprietary designation for this grade is 2111HTR.

Specifications and Standards

ASME SA 182, ASME SA 213, ASTM A 240, ASTM A 276, ASTM A 312, ASTM A 479, UNS S30815, Werkstoff 1.4835

Common Stainless Steel Grade Specifications

ASTM	JIS	AISI	EN
S30100	SUS301	301	1.431
S30400	SUS304	304	1.4301
S30403	-	304L	1.4307
S31008	SUS310S	310S	1.4845
S31603	-	316L	1.4404
S32100	SUS321	321	1.4541
S41008	SUS410S	410S	-
S43000	SUS430	430	1.4016
S43932	-	-	1.451
S44400	SUS444	444	1.4521
S44500	SUS430J1L	-	-

Dimension Ranges

Width: 600mm ~ 2030 mm
Thickness: 0.1 ~ 120.0 mm
Length: 300 ~ 6000 mm, Maximum 18000 mm

Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating, color-coating, embossing

Applications

Furnace components including burners, retorts, conveyor belts, fans, jigs and baskets, rollers, walking beams, radiant tubes, electric heater elements, refractory anchors, hoods, flues, grates, expansion bellows
Petrochemical and refinery tube hangers

Equivalent Materials

ASTM A182 Grade FXM-19, ASTM A269 Grade TPXM-19, ASTM A580 Grade S20910, ASTM A193 Grade B8R Class 1C, ASTM A276 Grade S20910, ASTM A813 Grade TPXM-19, ASTM A193 Grade B8R Class 1D, ASTM A312 Grade TPXM-19, ASTM A814 Grade TPXM-19, ASTM A193 Grade B8RA Class 1C, ASTM A314 Grade S20910, ASTM A943 Grade TPXM-19, ASTM A194 Grade 8R, ASTM A336 Grade FXM-19, ASTM A959 Grade S20910, ASTM A194 Grade 8RA, ASTM A358 Grade A240 XM-19, ASTM A965 Grade FXM-19, ASTM A213 Grade XM-19, ASTM A403 Grade CRXM-19, AISI XM-19, ASTM A240 Grade S20910, ASTM A403 Grade WPXM-19, SAE XM-19, ASTM A249 Grade TPXM-19, ASTM A479 Grade S20910, UNS S20910

Chemical Composition

Typical compositional ranges for grade 253MA stainless steel:

Element	Min (%)	Max (%)
C	0.05	0.10
Mn	-	0.80
Si	1.10	2.00
P	-	0.040
S	-	0.030
Cr	20.0	22.0
Ni	10.0	12.0
N	0.14	0.20
Ce	0.03	0.08

Mechanical Properties

Typical mechanical properties for grade 253MA stainless steel:

Property	Value
Tensile Strength (MPa) min	600
Yield Strength 0.2% Proof (MPa) min	310
Elongation (% in 50mm) min	40
Rockwell B (HR B) max	95
Brinell (HB) max	217

Physical Properties

Typical physical properties for grade 253MA stainless steel:

Property	Value
Density (kg/m³)	7800
Elastic Modulus (GPa)	200
Mean Coefficient of Thermal Expansion (mm/m/°C) 0-100°C	17.0
Mean Coefficient of Thermal Expansion (mm/m/°C) 0-600°C	18.5
Mean Coefficient of Thermal Expansion (mm/m/°C) 0-1000°C	19.5
Thermal Conductivity (W/m.K) at 20°C	15.0
Thermal Conductivity (W/m.K) at 1000°C	29.0
Specific Heat 0-100°C (J/kg.K)	500
Electrical Resistivity (nW.m)	850

International Grade Comparisons

Approximate grade comparisons for 253MA stainless steel:

UNS No	Euronorm No	Euronorm Name	Swedish SS	Japanese JIS
S30815	1.4835	X9CrNiSiNCe21-11-2	2368	-

These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed, original specifications must be consulted.

Possible Alternative Grades

Grade	Why it might be chosen instead of 253MA
310	Carburising atmospheres require a higher nickel content
304H	Lower cost alternative, provided the operating temperature is below about 800°C
Nickel Alloys	Carburising atmospheres or temperatures above the 1100 - 1150°C maximum of 253MA
